SAW TABLE SERIES
SJ-55 Brushless Track Saw
A model-specific brushless track saw page for distributors, importers and professional buyers evaluating guided plunge cutting in workshops and interior installation projects. Technical values, compatible options and packaging are kept tied to the confirmed SJ-55 evidence.
ModelSJ-55
MotorBrushless
Rated power2000 W at 220 V; 1600 W at 110 V
Power supplyAC 220 V or AC 110 V, 50/60 Hz, by ordered configuration
Maximum no-load speed6470 rpm
Speed settings6 stages
- Model-specific verified data
- Application and interface guidance
- Configuration-controlled accessories
- OEM and export packing support
PRODUCT OVERVIEW
Why buyers evaluate SJ-55 Brushless Track Saw as a complete system
Compare the operating task, verified capacity, interfaces, support equipment and package together. This page keeps SJ-55 facts separate from other products even when their appearance or general application is similar.
SJ-55 Brushless Track Saw is positioned for guided plunge cutting in workshops and interior installation projects. It belongs to the brushless track saw entity and is described by function rather than by color or a similar housing. For procurement, that distinction matters because SJ-55 Brushless Track Saw must be quoted against its own parameter sheet, images and accessories. Suitable planning begins with the material and cut, then moves to the machine, interface, electrical version and package.
The SJ-55 specification workbook identifies a brushless single-blade track saw, a 165 mm blade system, six-stage speed control, bevel adjustment from −1° to 47° and a 55 mm maximum depth at 90°. Voltage-specific power ratings are kept separate because the 220 V and 110 V versions are not electrically identical. These values form the controlled baseline for this page. If a requested value is not present in the source, AXIMET records it for confirmation instead of filling the gap with a typical industry figure.
PRODUCT ADVANTAGES
Selecting, configuring and purchasing SJ-55 Brushless Track Saw
Process fit
Selection for SJ-55 begins with guided plunge cutting in workshops and interior installation projects and the actual workpiece.
Controlled interfaces
Blade, guide, extraction or support compatibility for SJ-55 is confirmed before quotation.
Package clarity
Standard, optional and buyer-specified SJ-55 items are listed separately.
Inspection plan
The approved SJ-55 configuration becomes the basis for pre-shipment checks.
B2B customization
SJ-55 marking and packing follow technical approval rather than replacing it.
TECHNICAL SPECIFICATIONS
SJ-55 parameters supported by the current source
ModelSJ-55
MotorBrushless
Rated power2000 W at 220 V; 1600 W at 110 V
Power supplyAC 220 V or AC 110 V, 50/60 Hz, by ordered configuration
Maximum no-load speed6470 rpm
Speed settings6 stages
Blade specification165 × 1.8 × 20 mm
Cutting depth0–55 mm
Maximum depth at 90°55 mm
Maximum depth at 45°35 mm
Bevel range−1° to 47°
Minimum wall distance15 mm
Net weight4.9 kg
Machine dimensions333 × 190 × 252 mm
Carry-case dimensions395 × 295 × 225 mm
Rapid braking reference2 seconds
PRODUCT DETAILS

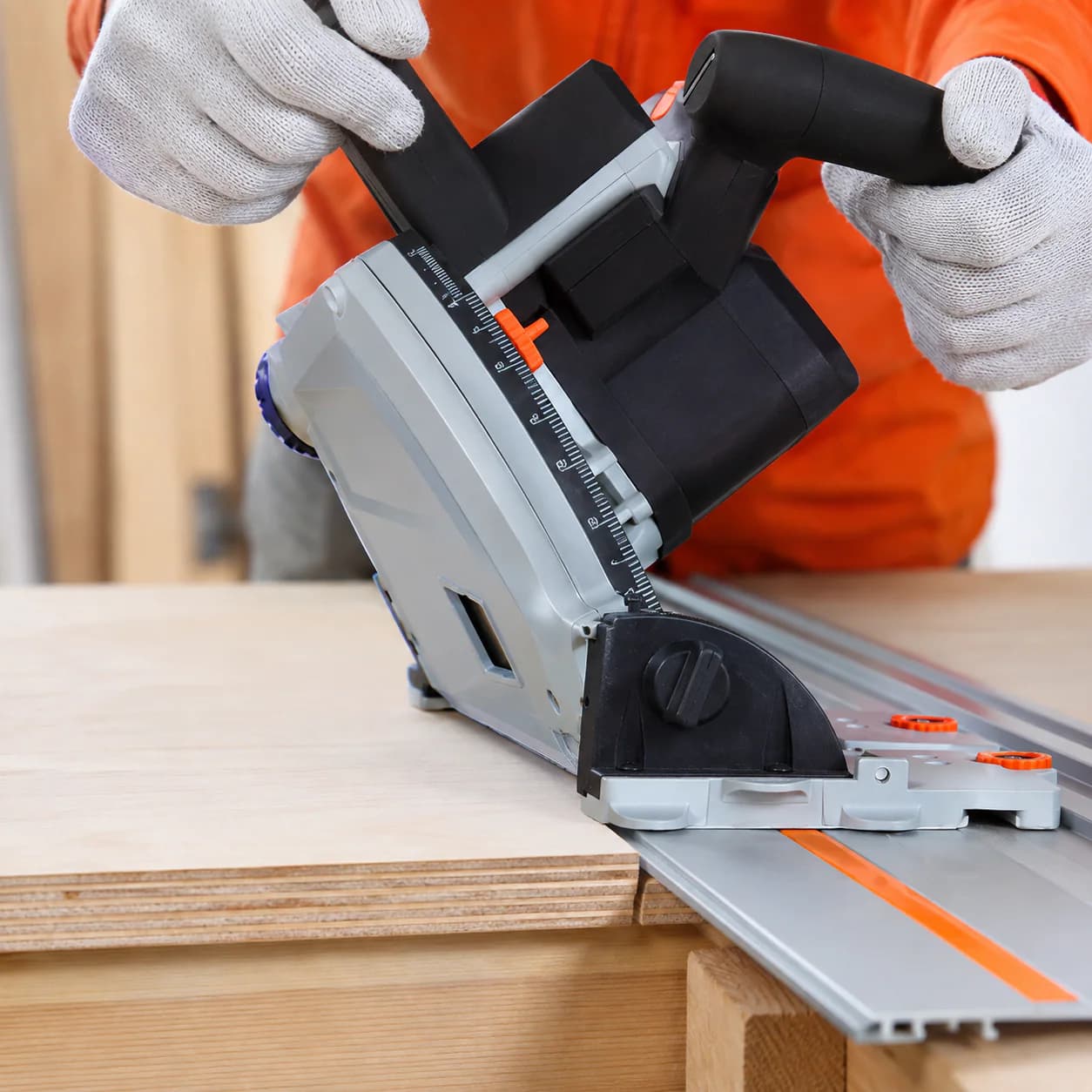

Function and structural layout
The working role of SJ-55 Brushless Track Saw is guided plunge cutting in workshops and interior installation projects. Its structure should be reviewed as a complete system: motor or support frame, base, guide contact, adjustment controls, cutting interface and dust or receiving provisions. A useful sourcing review asks how those elements behave together in the buyer's process rather than counting isolated marketing labels.
Compare SJ-55 with SJ-60 by blade diameter, depth, machine weight, electrical version and package—not by orange housing or camera angle. The track saw cutting table is a supporting workstation rather than another powered saw model. This boundary helps search users and purchasing teams reach the correct product. It also prevents a visually similar model, accessory or workstation from being represented as the same configured machine.
Technical data for SJ-55 Brushless Track Saw is published only when it can be tied to the model workbook or matching visual evidence. The SJ-55 specification workbook identifies a brushless single-blade track saw, a 165 mm blade system, six-stage speed control, bevel adjustment from −1° to 47° and a 55 mm maximum depth at 90°. Voltage-specific power ratings are kept separate because the 220 V and 110 V versions are not electrically identical. Units, operating conditions and voltage-specific values remain visible so that a buyer can compare like with like.
A quotation for SJ-55 Brushless Track Saw should therefore repeat the selected values and identify every unresolved field. Rated input, no-load behavior, capacity, dimensions and net weight describe different aspects of the product; none can be substituted for another. Optional equipment is documented separately from the main machine.
APPLICATIONS
Materials and application planning
For SJ-55, the confirmed application scope covers solid wood, plywood, MDF, laminated board, particle board and aluminium-composite panels when the selected blade is approved for that material. Material names alone are not enough to release a cutting setup: density, coating, embedded material, thickness, support, required finish and the approved blade or cutting tool must also be checked.
For recurring production, send representative workpiece information and the expected cut pattern with the inquiry. AXIMET can then relate SJ-55 Brushless Track Saw to rail length, blade specification, extraction, receiving support and inspection points without implying performance beyond the verified configuration.
BUYER SELECTION GUIDE
Model and configuration selection
Model and configuration selection
Choose SJ-55 when a 165 mm guided saw, close-to-wall access and a compact 4.9 kg machine are relevant. Confirm the ordered voltage, blade for the actual panel material, guide-rail length and whether grooving accessories belong in the quotation.
For SJ-55, selection is stronger when the buyer defines the working envelope before discussing price. Record destination voltage where relevant, panel dimensions, required depth or support size, bevel or positioning needs, daily workflow, dust collection and the desired accessory pack. These inputs separate a technically comparable quotation from one that merely shares the model name.

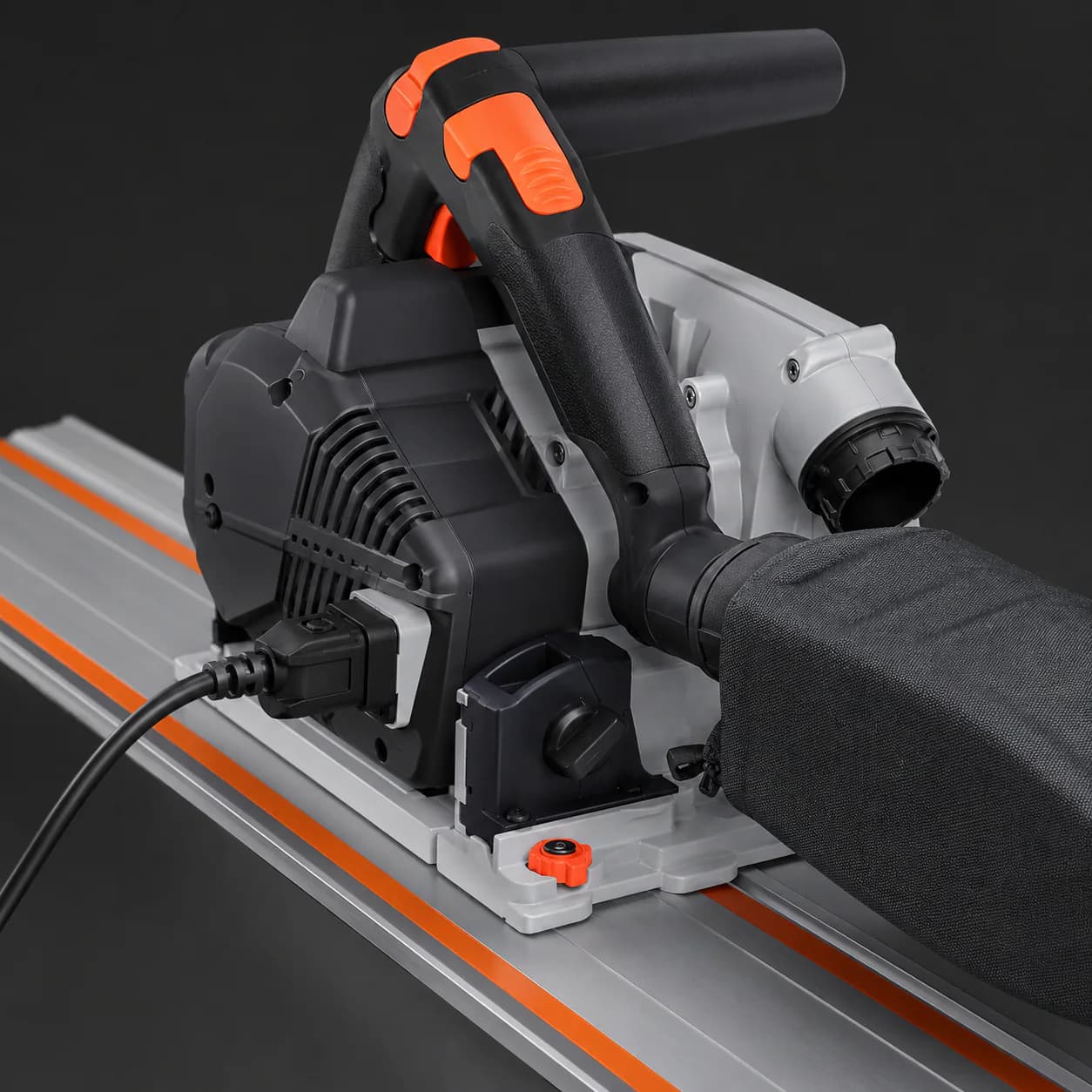

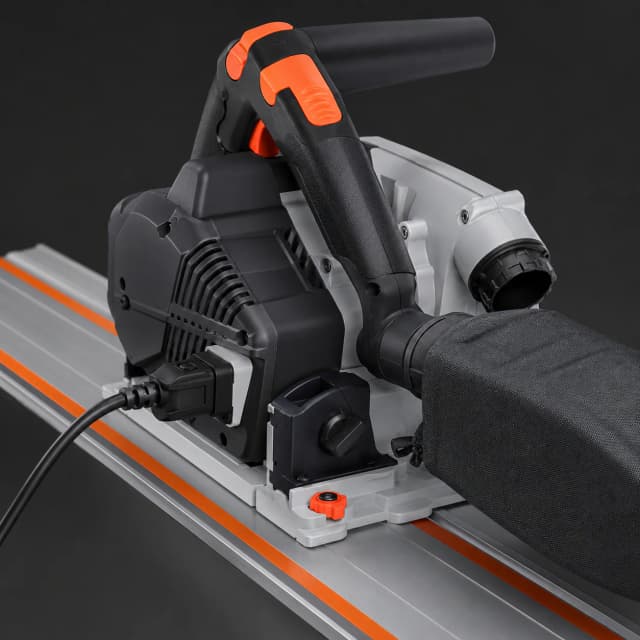

Guide, blade and interface checks
For SJ-55 Brushless Track Saw, compatibility is confirmed at the interfaces that determine safe operation. That can include blade diameter and bore, guide profile, rail connector, dust port, workbench fixture or receiving geometry, depending on the product. A photo of a component does not by itself prove fit.
For SJ-55, the order record should list each interface in measurable terms and identify the matching accessory. When a buyer already owns rails, blades, extractors or tables, drawings and dimensions can be reviewed before production so the new supply does not rely on a visual assumption.
Procurement documentation
A complete inquiry for SJ-55 Brushless Track Saw includes company and destination, target quantity, material, work dimensions, required operation, voltage when applicable, desired package and any compatibility constraints. This information supports an actionable quotation without forcing the buyer to accept assumptions.
For SJ-55, commercial terms such as MOQ, lead time and price depend on configuration, packaging, quantity and validation work. They are confirmed in the quotation rather than published as fixed promises. Changes after sample approval are recorded so product and documentation stay synchronized.
OPERATION & SAFETY

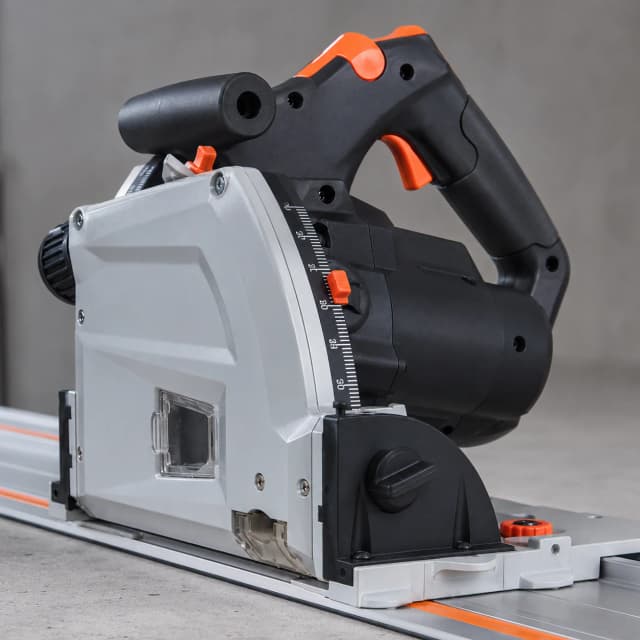

Operating setup and safety
For SJ-55, disconnect the power supply before blade changes, check the blade diameter and 20 mm bore, lock the depth and bevel controls, secure the rail and workpiece, connect dust extraction where required, and keep hands outside the cutting path. The two-second braking reference does not replace normal guarding or controlled run-down practice.
For SJ-55, before each shift, inspect cables or frame fasteners, guards and moving controls, guide contact, workpiece support and the surrounding cutting zone. Operators should follow the supplied manual, wear suitable PPE and stop if movement, noise or dust behavior changes. Safety information is model-specific and does not transfer automatically from another saw.
SJ-55
- Model-specific verified data
- Application and interface guidance
- Configuration-controlled accessories
- OEM and export packing support
Compare the operating task, verified capacity, interfaces, support equipment and package together. This page keeps SJ-55 facts separate from other products even when their appearance or general application is similar.
ACCESSORIES & PACKAGE CONTENTS
Guide, blade and interface checks
For SJ-55 Brushless Track Saw, compatibility is confirmed at the interfaces that determine safe operation. That can include blade diameter and bore, guide profile, rail connector, dust port, workbench fixture or receiving geometry, depending on the product. A photo of a component does not by itself prove fit.
For SJ-55, the order record should list each interface in measurable terms and identify the matching accessory. When a buyer already owns rails, blades, extractors or tables, drawings and dimensions can be reviewed before production so the new supply does not rely on a visual assumption.
PACKAGING & SHIPPING
Packaging and transport planning
For SJ-55, the source shows several A, B, B2 and E bundles. A carrying case, blade, dust bag, hose adapter, power cord, viewing window, hex key and track tools are pictured, while guide rails, clamps and grooving tools vary by package and are never promised as standard without a signed configuration.
For SJ-55, export packing is developed around the confirmed shipment route and package contents. Buyers should specify individual or master packaging, pallet or case expectations, labeling languages, barcode data and spare-part separation. The final packing list is checked against the approved configuration before dispatch.
MANUFACTURING
Manufacturing and quality control
Inspection for SJ-55 focuses on the ordered voltage, no-load control, depth and bevel movement, base-to-rail fit, blade-interface security, dust-port condition, brake response and the exact accessory checklist. Visual appearance alone is not evidence that two packages contain the same components.
For SJ-55, quality records can be adapted to the order while remaining tied to observable checks. A distributor may request an approved sample, configuration photo, packing list and inspection record. Unsupported claims about certifications, service life, factory statistics or test performance are not added to the page.
QUALITY CONTROL
Manufacturing and quality control
Compare the operating task, verified capacity, interfaces, support equipment and package together. This page keeps SJ-55 facts separate from other products even when their appearance or general application is similar.
OEM & PRIVATE LABEL
OEM and private-label support
For SJ-55, private-label work can cover approved marking, color and packaging after the technical configuration is frozen. Artwork, language, plug, voltage, blade, rail and accessory list should be reviewed together so the commercial pack matches the tested machine.
A private-label project begins after technical equivalence has been established. Brand artwork does not replace configuration control. The approval file for SJ-55 Brushless Track Saw should connect product sample, markings, warning labels, manual, carton, accessories and destination electrical requirements.
Get My QuotationFREQUENTLY ASKED QUESTIONS
Questions buyers ask about SJ-55 Brushless Track Saw
What is the SJ-55 Brushless Track Saw used for?
Answer 1 for SJ-55: SJ-55 Brushless Track Saw is intended for guided plunge cutting in workshops and interior installation projects. Its confirmed material scope includes solid wood, plywood, MDF, laminated board, particle board and aluminium-composite panels when the selected blade is approved for that material. The exact blade, guide, dust-control or support configuration is selected for the workpiece and ordered setup.
How should I choose SJ-55 instead of a related model?
Answer 2 for SJ-55: Choose SJ-55 when a 165 mm guided saw, close-to-wall access and a compact 4.9 kg machine are relevant. Confirm the ordered voltage, blade for the actual panel material, guide-rail length and whether grooving accessories belong in the quotation.
Which SJ-55 specifications are confirmed?
Answer 3 for SJ-55: The SJ-55 specification workbook identifies a brushless single-blade track saw, a 165 mm blade system, six-stage speed control, bevel adjustment from −1° to 47° and a 55 mm maximum depth at 90°. Voltage-specific power ratings are kept separate because the 220 V and 110 V versions are not electrically identical.
Is SJ-55 Brushless Track Saw suitable for my material and dimensions?
Answer 4 for SJ-55: For SJ-55, compare the workpiece with the published capacity and interface data, then provide material, thickness, cut length and required finish. Suitability is confirmed with the selected blade or system; it is not assumed from the product name alone.
What safety and maintenance checks apply to SJ-55?
Answer 5 for SJ-55: Disconnect the power supply before blade changes, check the blade diameter and 20 mm bore, lock the depth and bevel controls, secure the rail and workpiece, connect dust extraction where required, and keep hands outside the cutting path. The two-second braking reference does not replace normal guarding or controlled run-down practice.
Can SJ-55 Brushless Track Saw be supplied with OEM branding and export packaging?
Answer 6 for SJ-55: Private-label work can cover approved marking, color and packaging after the technical configuration is frozen. Artwork, language, plug, voltage, blade, rail and accessory list should be reviewed together so the commercial pack matches the tested machine.
What determines the quotation and delivery plan for SJ-55?
Answer 7 for SJ-55: For SJ-55, quantity, configuration, destination requirements, documentation, accessories, packaging and validation work affect the quotation and schedule. AXIMET confirms MOQ, price and lead time for the defined order rather than publishing an unverified universal promise.
PRODUCT INQUIRY
Define your SJ-55 configuration
Send the SJ-55 workpiece, operation, quantity, destination, electrical requirement and accessory list. AXIMET will return a model-specific quotation without mixing parameters from another saw or workstation.
