Typical Buyer Requirements
- Portable hole making on steel plates, beams and fixed structures
- A machine configuration matched to the required diameter and working space
- A compatible magnetic drill, annular cutter and accessory package
CORE PRODUCT RANGE
Magnetic Drilling Machines
Portable magnetic drilling systems for accurate hole making in steel plates, beams and structural components.
PRODUCT OVERVIEW
Series and Applications
Portable magnetic drilling systems for accurate hole making in steel plates, beams and structural components.
Available Series
- Compact and general-purpose machines
- Heavy-duty and high-power machines
- Reversible and special configurations
Applications
- Steel fabrication
- Bridge and railway work
- Shipbuilding and marine maintenance
- Industrial metalworking
B2B SELECTION GUIDE
Match the Product Range to Your Requirement
Use the confirmed factors below to prepare a more precise product inquiry. AXIMET reviews the applicable catalog data before recommending a configuration.
Information to Confirm
- Required hole diameter and drilling depth
- Workpiece material and available mounting surface
- Voltage, working space and required machine functions
Next Step
Share your application, material, required specification, quantity and OEM needs.
Send Product Requirements →Browse Applications →PRODUCT RANGE
Available Product Pages
Open a supported detail page for application, feature and source information.

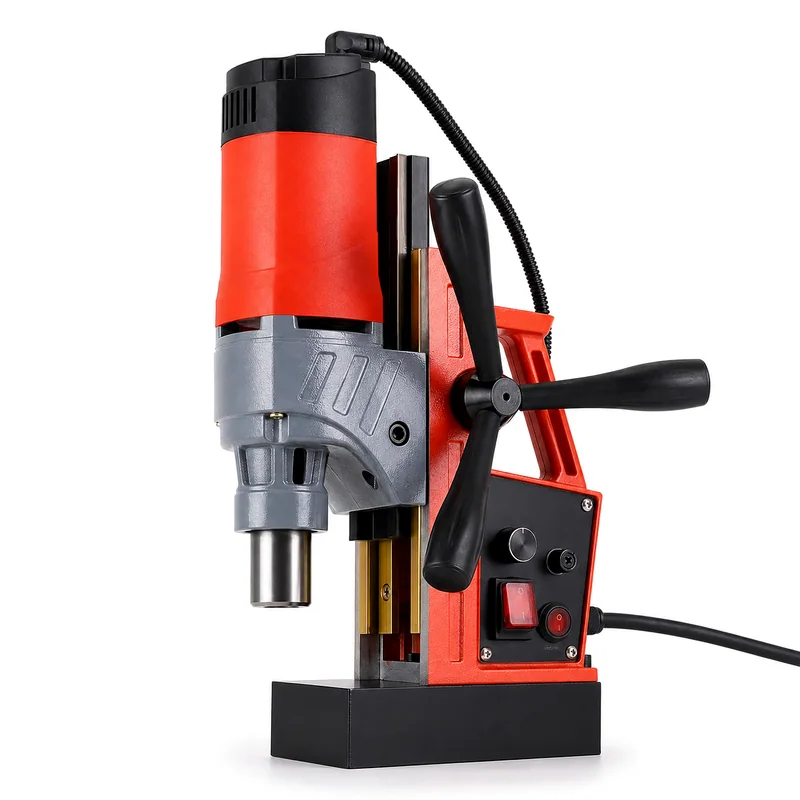

2016E Magnetic Drill Machine
A compact 1500W magnetic drill with variable speed and 12,000 N holding force for steel fabrication and industrial distribution.
View Details →
Compact Magnetic Drill
The AX8813E combines a compact 100 × 270 × 350 mm machine envelope with a 1000 W motor, variable speed and 11,000 N magnetic holding force. It is positioned for distributors and industrial buyers who need a portable magnetic drill for steel work where machine size and operating capacity must be balanced.
View Details →

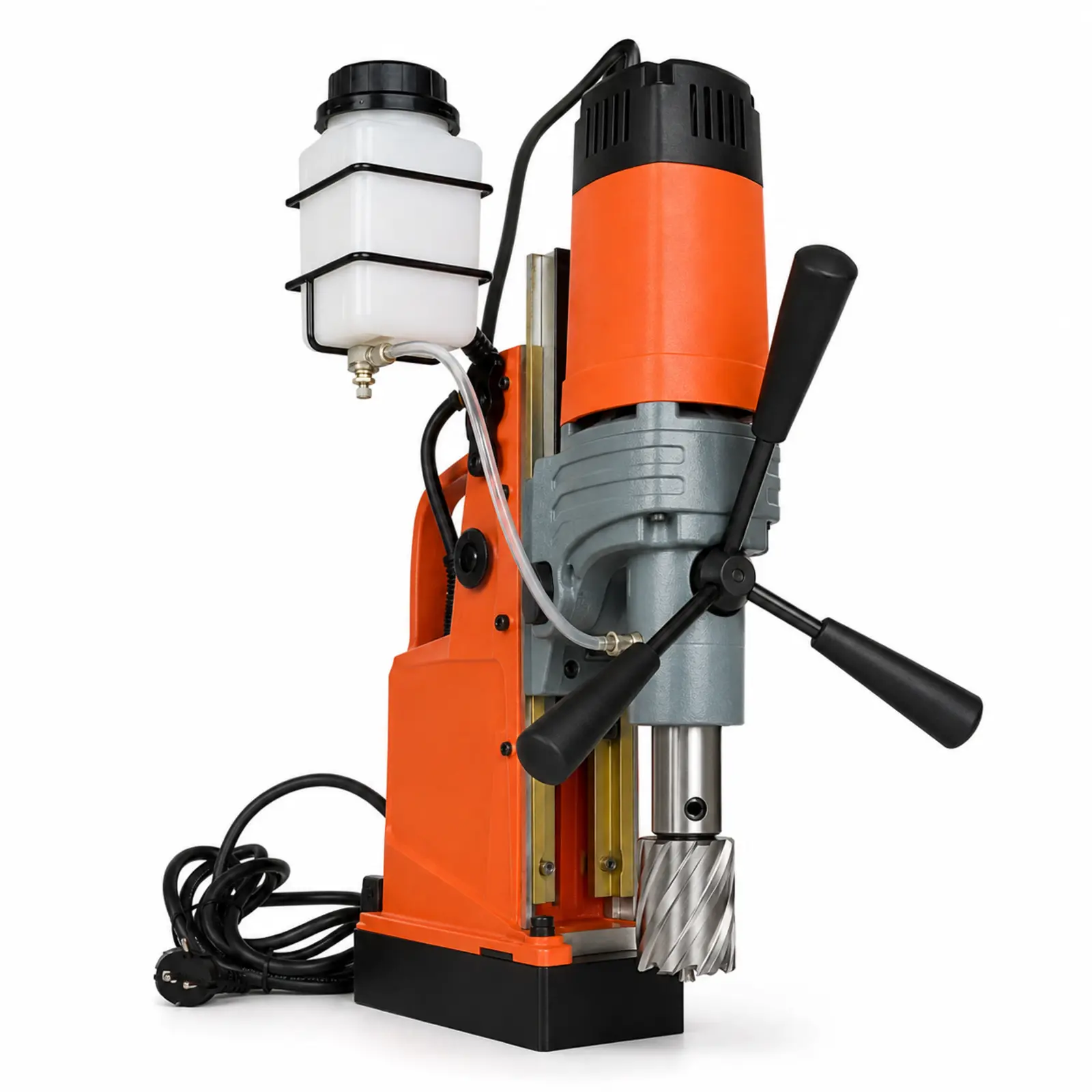

40mm Magnetic Drill
The AX8840 is a 40mm Magnetic Drilling Machine whose size designation means a maximum 40 mm annular cutter drilling diameter, not a machine dimension. Its light-medium-duty position suits workshops, distributors and steel-fabrication users seeking a practical balance of 1400 W power, 12,000 N magnetic holding force and portable operation.
View Details →
50mm Heavy Duty Magnetic Drill
The AXD8850 is a Heavy Duty 50mm Magnetic Drill whose size designation means a maximum 50 mm annular cutter drilling diameter, not a machine dimension. Its 1600 W rated power and 13,000 N magnetic holding force position this 50mm Mag Drill for industrial buyers, heavier steel fabrication and larger-hole requirements than the 40 mm workshop model.
View Details →
Variable Speed Magnetic Drill
The AX8828E provides a confirmed 0–350 r/min variable-speed range, 1600 W rated power, 28 mm maximum drilling diameter and 14,000 N magnetic holding force. It is intended for buyers who need defined speed adjustment when matching a magnetic drill to different tool sizes and steel drilling requirements.
View Details →
Reversible Magnetic Drill
The AX8816RE combines forward and reverse operation with a 0–600 r/min speed range, 1350 W rated power and 11,500 N magnetic holding force. This page focuses only on reversible control for industrial drilling; it does not treat reverse function alone as proof of a tapping configuration.
View Details →
Magnetic Drill with Tapping Function
The AXD8880 combines magnetic drilling and a confirmed maximum tapping capacity of 25 mm. Its dedicated workbook records 80 mm maximum annular cutting diameter, 32 mm twist-drill capacity, 2000 W rated power, variable speed and 16,000 N magnetic holding force for industrial buyers requiring one drilling-and-threading platform.
View Details →
AX8813RE Reversible Compact Magnetic Drill
The AX8813RE is a compact reversible magnetic drilling machine with a confirmed maximum 13 mm annular cutter drilling diameter, 1000 W rated power and 0–700 r/min no-load speed with a 120 mm stroke. It is positioned for distributors and industrial buyers sourcing equipment for steel plate, beam and workshop hole making.
View Details →
AX8816 16mm Magnetic Drill
The AX8816 is a compact fixed speed magnetic drilling machine with a confirmed maximum 16 mm annular cutter drilling diameter, 1350 W rated power and 600 r/min no-load speed with a 120 mm stroke. It is positioned for distributors and industrial buyers sourcing equipment for steel plate, beam and workshop hole making.
View Details →
AX8816E 16mm Variable Speed Magnetic Drill
The AX8816E is a compact variable speed magnetic drilling machine with a confirmed maximum 16 mm annular cutter drilling diameter, 1350 W rated power and 0–600 r/min no-load speed with a 120 mm stroke. It is positioned for distributors and industrial buyers sourcing equipment for steel plate, beam and workshop hole making.
View Details →
AX8823 23mm Magnetic Drill
The AX8823 is a general fixed speed magnetic drilling machine with a confirmed maximum 23 mm annular cutter drilling diameter, 1500 W rated power and 450 r/min no-load speed with a 230 mm stroke. It is positioned for distributors and industrial buyers sourcing equipment for steel plate, beam and workshop hole making.
View Details →

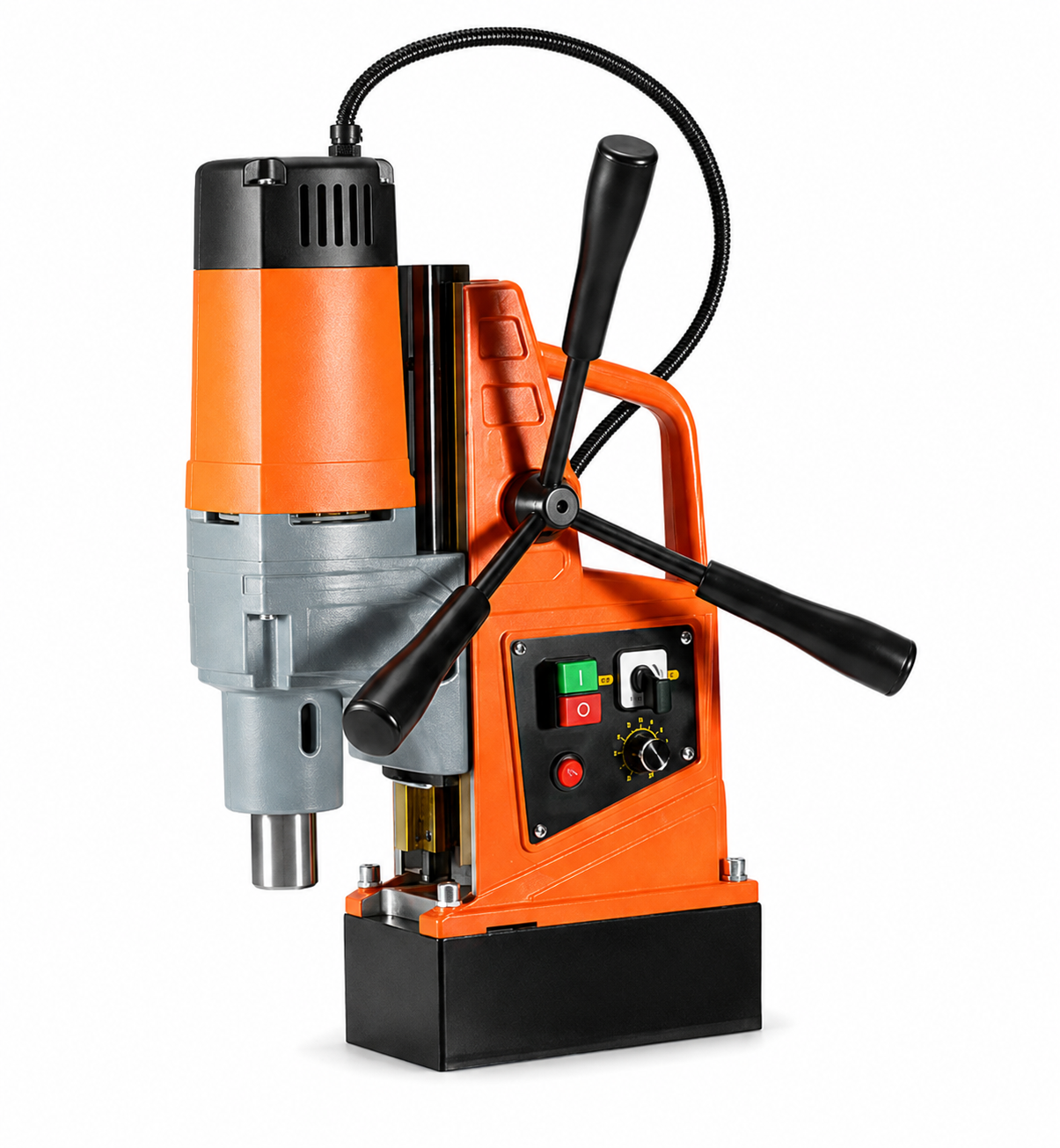

AX8823E 23mm Variable Speed Magnetic Drill
The AX8823E is a general variable speed magnetic drilling machine with a confirmed maximum 23 mm annular cutter drilling diameter, 1500 W rated power and 0–450 r/min no-load speed with a 230 mm stroke. It is positioned for distributors and industrial buyers sourcing equipment for steel plate, beam and workshop hole making.
View Details →
AX8823RE 23mm Reversible Magnetic Drill
The AX8823RE is a general reversible magnetic drilling machine with a confirmed maximum 23 mm annular cutter drilling diameter, 1500 W rated power and 0–450 r/min no-load speed with a 230 mm stroke. It is positioned for distributors and industrial buyers sourcing equipment for steel plate, beam and workshop hole making.
View Details →

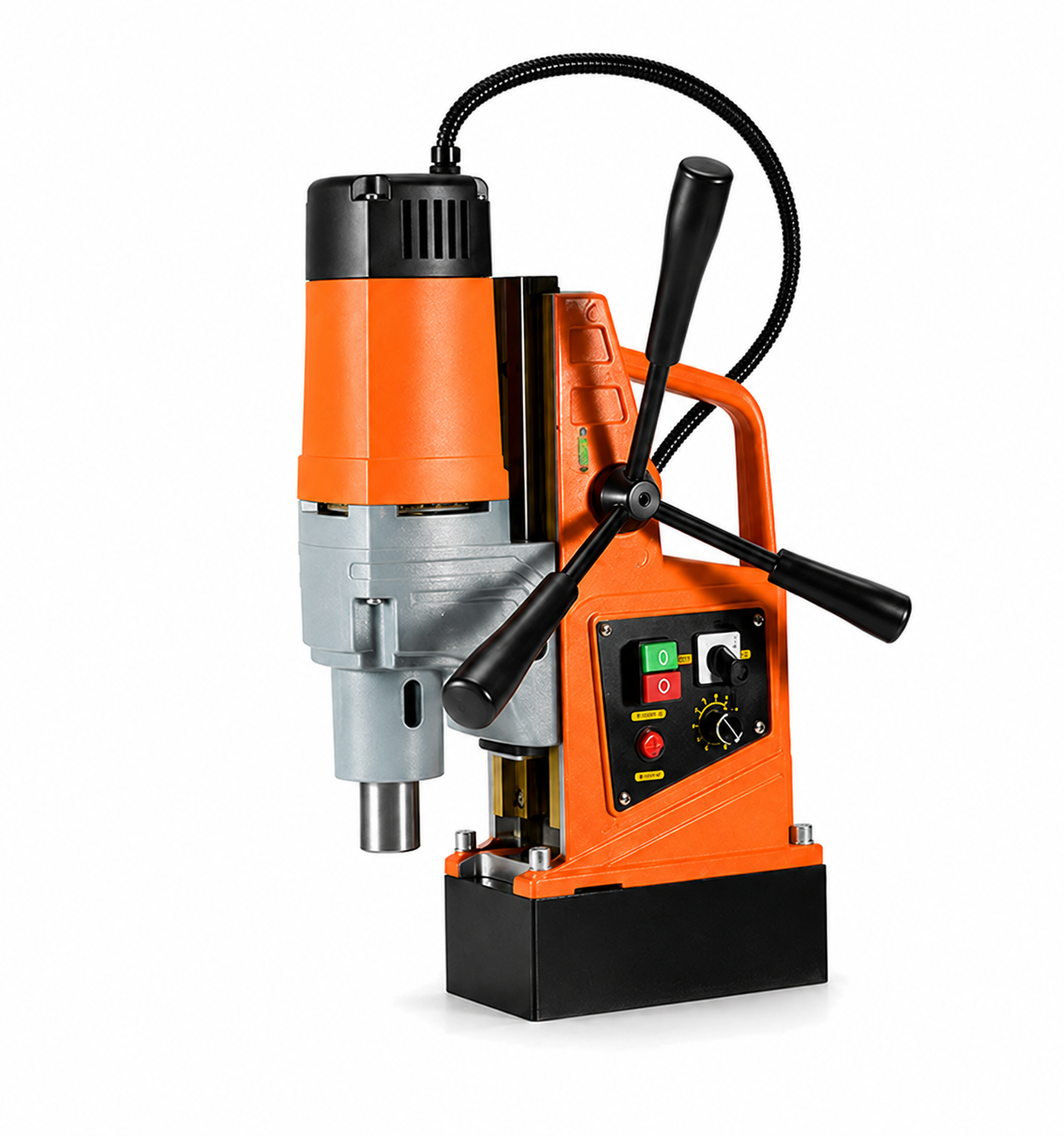

AX8828 28mm Magnetic Drill
The AX8828 is a general fixed speed magnetic drilling machine with a confirmed maximum 28 mm annular cutter drilling diameter, 1600 W rated power and 350 r/min no-load speed with a 225 mm stroke. It is positioned for distributors and industrial buyers sourcing equipment for steel plate, beam and workshop hole making.
View Details →
AX8828RE 28mm Reversible Magnetic Drill
The AX8828RE is a general reversible magnetic drilling machine with a confirmed maximum 28 mm annular cutter drilling diameter, 1600 W rated power and 0–350 r/min no-load speed with a 225 mm stroke. It is positioned for distributors and industrial buyers sourcing equipment for steel plate, beam and workshop hole making.
View Details →

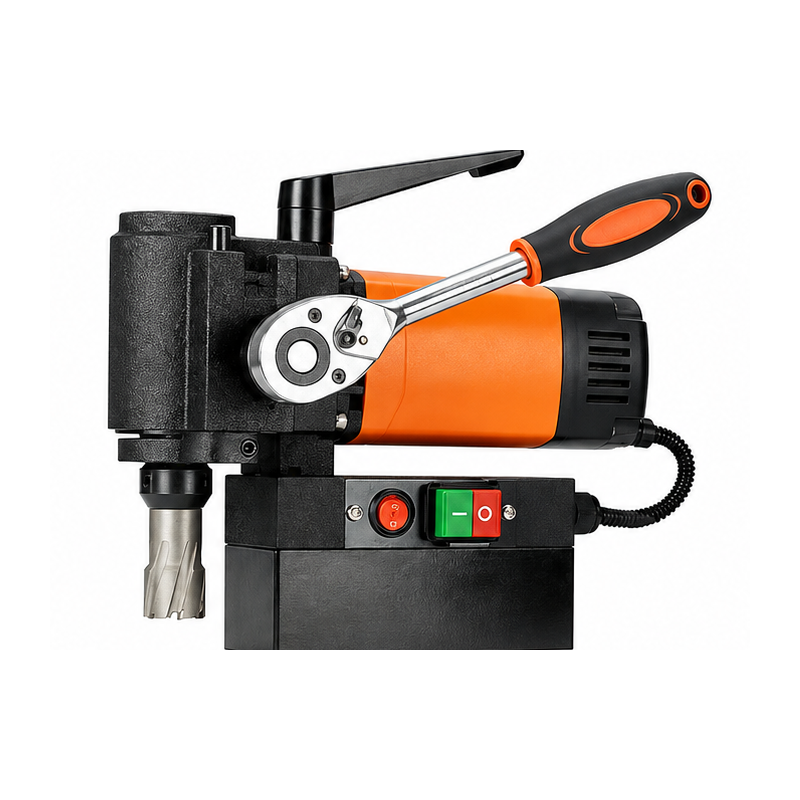

AX8835 35mm Magnetic Drill
The AX8835 is a 35 mm fixed speed magnetic drilling machine with a confirmed maximum 35 mm annular cutter drilling diameter, 1300 W rated power and 700 r/min no-load speed. It is positioned for distributors and industrial buyers sourcing equipment for steel plate, beam and workshop hole making.
View Details →

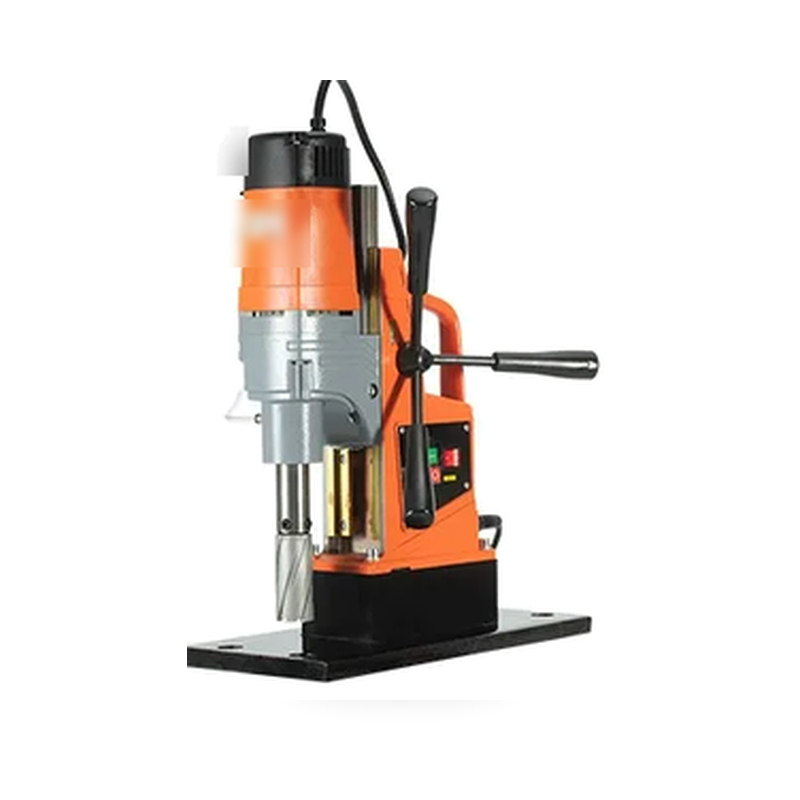

AX8860 60mm Magnetic Drill
The AX8860 is a 60 mm fixed speed magnetic drilling machine with a confirmed maximum 60 mm annular cutter drilling diameter, 1800 W rated power and 300 r/min no-load speed with a 225 mm stroke. It is positioned for distributors and industrial buyers sourcing equipment for steel plate, beam and workshop hole making.
View Details →
AXD8840 Heavy Duty 40mm Magnetic Drill
The AXD8840 is a heavy-duty 40 mm magnetic drilling machine with a confirmed maximum 40 mm annular cutter drilling diameter, 1500 W rated power and 0–650 r/min no-load speed with a 120 mm stroke. It is positioned for distributors and industrial buyers sourcing equipment for higher-capacity steel fabrication and structural work.
View Details →

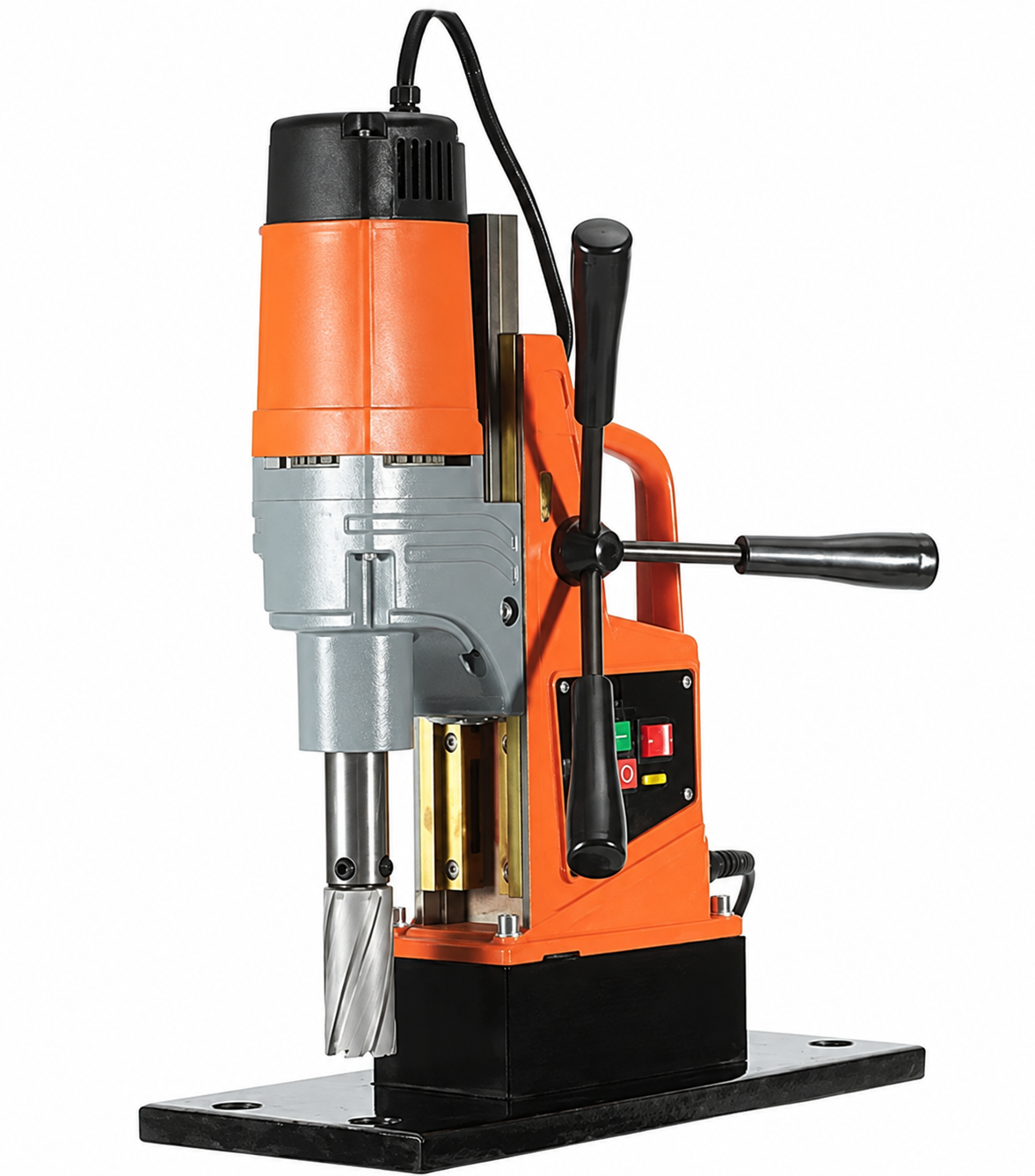

AXD8860 Reversible 60mm Magnetic Drill
The AXD8860 is a heavy-duty reversible magnetic drilling machine with a confirmed maximum 60 mm annular cutter drilling diameter, 1800 W rated power and 0–450 r/min no-load speed with a 225 mm stroke. It is positioned for distributors and industrial buyers sourcing equipment for higher-capacity steel fabrication and structural work.
View Details →
AXG8860 60mm Pipe Magnetic Drill
The AXG8860 is a pipe drilling magnetic drilling machine with a confirmed maximum 60 mm annular cutter drilling diameter, 1800 W rated power and 300 r/min no-load speed with a 225 mm stroke. It is positioned for distributors and industrial buyers sourcing equipment for pipe drilling and on-site pipe fabrication.
View Details →
AX8120E 120mm Pipe Magnetic Drill
The AX8120E is a large pipe drilling magnetic drilling machine with a confirmed maximum 120 mm annular cutter drilling diameter, 1800 W rated power and 80–400 r/min no-load speed with a 190 mm stroke. It is positioned for distributors and industrial buyers sourcing equipment for pipe drilling and on-site pipe fabrication.
View Details →Verified specification policy
Exact dimensions, standards, materials and package contents are published only when tied to the corresponding confirmed catalog row. Contact AXIMET for the applicable specification table.
