Typical Buyer Requirements
- Cleaner hole making in steel with portable magnetic drills
- Cutter material and interface matched to the machine and workpiece
- Multiple diameters and cutting depths within one supply program
CORE PRODUCT RANGE
Annular Cutters
HSS and carbide-tipped annular cutter ranges for clean and efficient hole making with magnetic drills.
PRODUCT OVERVIEW
Series and Applications
HSS and carbide-tipped annular cutter ranges for clean and efficient hole making with magnetic drills.
Available Series
- HSS annular cutters
- TCT annular cutters
- Weldon, one-touch, quick-in and threaded interfaces
Applications
- Steel plate hole making
- Structural fabrication
- Machine and equipment maintenance
B2B SELECTION GUIDE
Match the Product Range to Your Requirement
Use the confirmed factors below to prepare a more precise product inquiry. AXIMET reviews the applicable catalog data before recommending a configuration.
Information to Confirm
- Workpiece material
- Required diameter and cutting depth
- Machine spindle and cutter interface
Next Step
Share your application, material, required specification, quantity and OEM needs.
Send Product Requirements →Browse Applications →PRODUCT RANGE
Available Product Pages
Open a supported detail page for application, feature and source information.
HSS Annular Cutters
High-speed-steel cutter families offered in multiple diameters, cutting depths and interface configurations.
View Details →
TCT Annular Cutters
Carbide-tipped annular cutter families for application-matched hole-making requirements.
View Details →

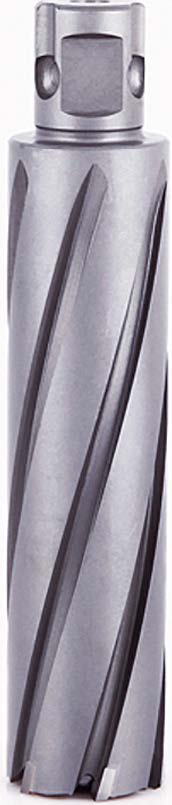

TCT Annular Cutter with One-Touch Shank
A Tungsten Carbide Tipped annular cutter family with a 19.05 mm One-Touch shank. The confirmed range covers Ø12–65 mm at 30 or 55 mm cutting depth and Ø18–50 mm at 75 or 100 mm cutting depth.
View Details →

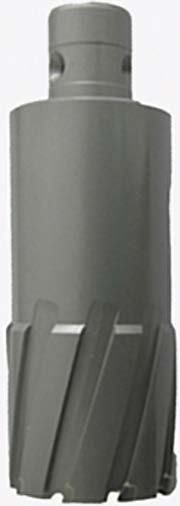

TCT Annular Cutter with Four-Hole Quick-In Shank
A Tungsten Carbide Tipped annular cutter family with a four-hole Quick-In shank. The confirmed range covers Ø12–65 mm at 30 or 55 mm cutting depth and Ø18–50 mm at 75 or 100 mm cutting depth.
View Details →

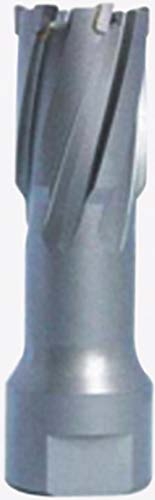

TCT Annular Cutter with Thread Shank
A Tungsten Carbide Tipped threaded annular cutter family covering Ø12–65 mm at 30 or 55 mm cutting depth and Ø18–50 mm at 75 or 100 mm cutting depth. The printed source notation “M18*6P1.5” remains under engineering review.
View Details →

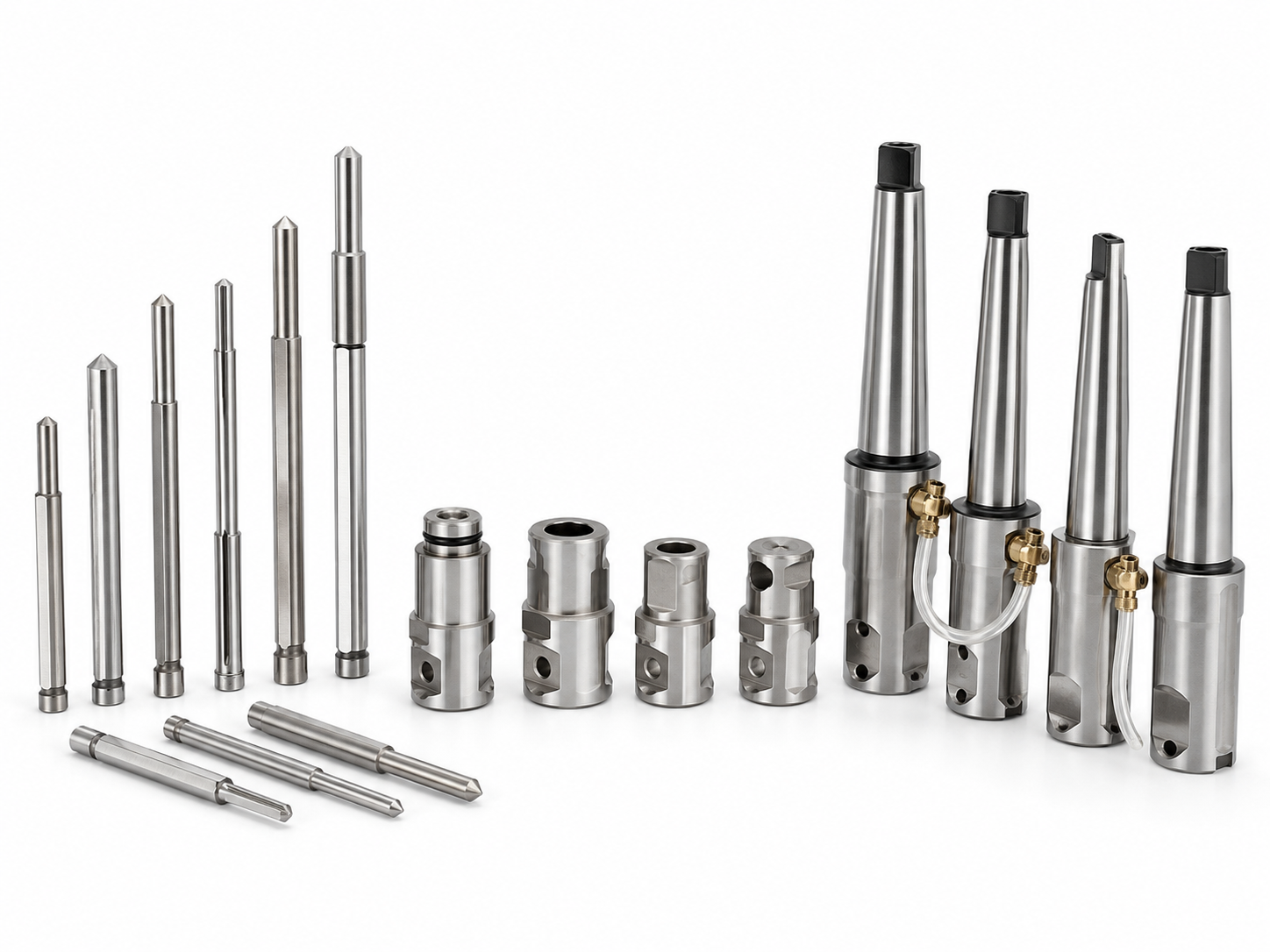

Annular Cutter Pilot Pins
Pilot pins support centering, coolant guidance and slug ejection in a configured annular cutting system. The catalog confirms flat, grooved and sleeve-type form descriptions, but it does not publish a dimensional or compatibility matrix.
View Details →

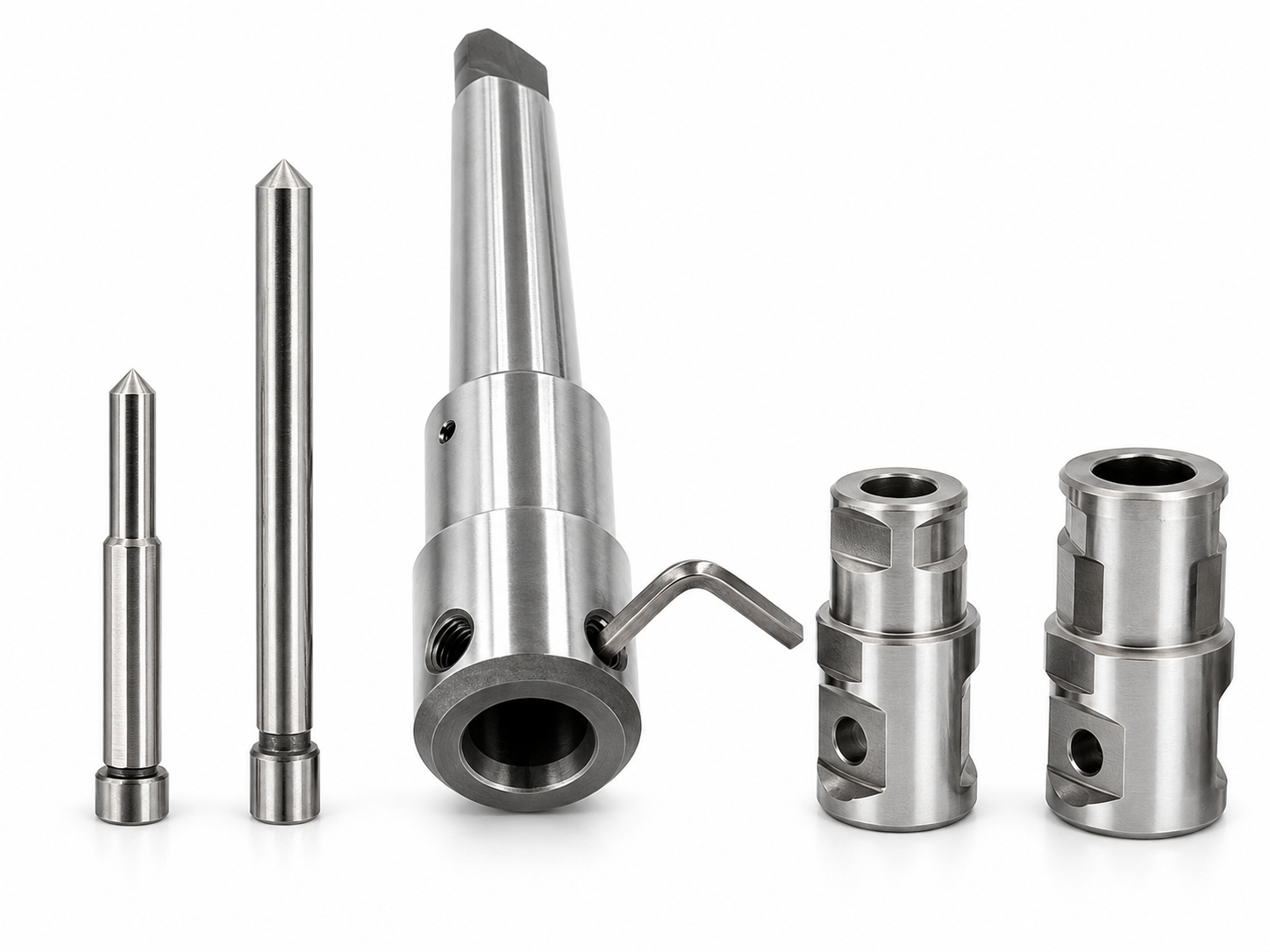

Annular Cutter Adapters
The source shows five candidate interface combinations involving 19 mm Weldon, One-Touch, FEIN Quick-IN and source-described “Morse taper B16”. Conversion direction and the B16 terminology require engineering confirmation before formal naming or supply.
View Details →Verified specification policy
Exact dimensions, standards, materials and package contents are published only when tied to the corresponding confirmed catalog row. Contact AXIMET for the applicable specification table.
