SAW TABLE SERIES

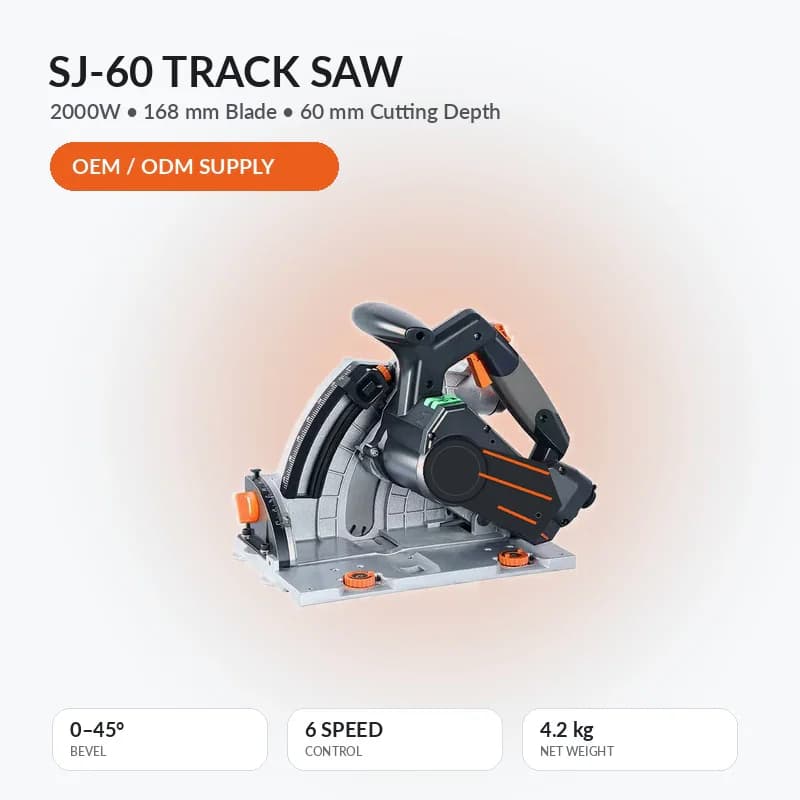

SJ-60 Brushless Track Saw
A model-specific professional track saw page for distributors, importers and professional buyers evaluating long, controlled panel cuts with a configurable guide-rail kit. Technical values, compatible options and packaging are kept tied to the confirmed SJ-60 evidence.
ModelSJ-60
Reference rated power2000 W
Reference power supply220 V / 50 Hz
Maximum speed6750 rpm
Speed control6-stage variable control
Blade specification168 × 1.8 × 20 mm
- Model-specific verified data
- Application and interface guidance
- Configuration-controlled accessories
- OEM and export packing support
PRODUCT OVERVIEW
Why buyers evaluate SJ-60 Brushless Track Saw as a complete system
Compare the operating task, verified capacity, interfaces, support equipment and package together. This page keeps SJ-60 facts separate from other products even when their appearance or general application is similar.
SJ-60 Brushless Track Saw is positioned for long, controlled panel cuts with a configurable guide-rail kit. It belongs to the professional track saw entity and is described by function rather than by color or a similar housing. For procurement, that distinction matters because SJ-60 Brushless Track Saw must be quoted against its own parameter sheet, images and accessories. Suitable planning begins with the material and cut, then moves to the machine, interface, electrical version and package.
The SJ-60 product workbook records a 2000 W reference motor, 168 × 1.8 × 20 mm blade, six-speed control, 60 mm maximum depth and 0–45° bevel range. The 220 V / 50 Hz entry is a reference configuration; destination voltage and plug are confirmed on the order rather than inferred. These values form the controlled baseline for this page. If a requested value is not present in the source, AXIMET records it for confirmation instead of filling the gap with a typical industry figure.
PRODUCT ADVANTAGES
Selecting, configuring and purchasing SJ-60 Brushless Track Saw
Process fit
Selection for SJ-60 begins with long, controlled panel cuts with a configurable guide-rail kit and the actual workpiece.
Controlled interfaces
Blade, guide, extraction or support compatibility for SJ-60 is confirmed before quotation.
Package clarity
Standard, optional and buyer-specified SJ-60 items are listed separately.
Inspection plan
The approved SJ-60 configuration becomes the basis for pre-shipment checks.
B2B customization
SJ-60 marking and packing follow technical approval rather than replacing it.
TECHNICAL SPECIFICATIONS
SJ-60 parameters supported by the current source
ModelSJ-60
Reference rated power2000 W
Reference power supply220 V / 50 Hz
Maximum speed6750 rpm
Speed control6-stage variable control
Blade specification168 × 1.8 × 20 mm
Maximum cutting depth60 mm at 0° reference setting
Bevel range0–45°
Net weight4.2 kg
Machine dimensions330 × 190 × 255 mm
Guide-rail reference2 × 1.4 m rails, approximately 2.8 m total
Voltage availabilityConfirmed according to destination electrical standard and order
PRODUCT DETAILS
Function and structural layout

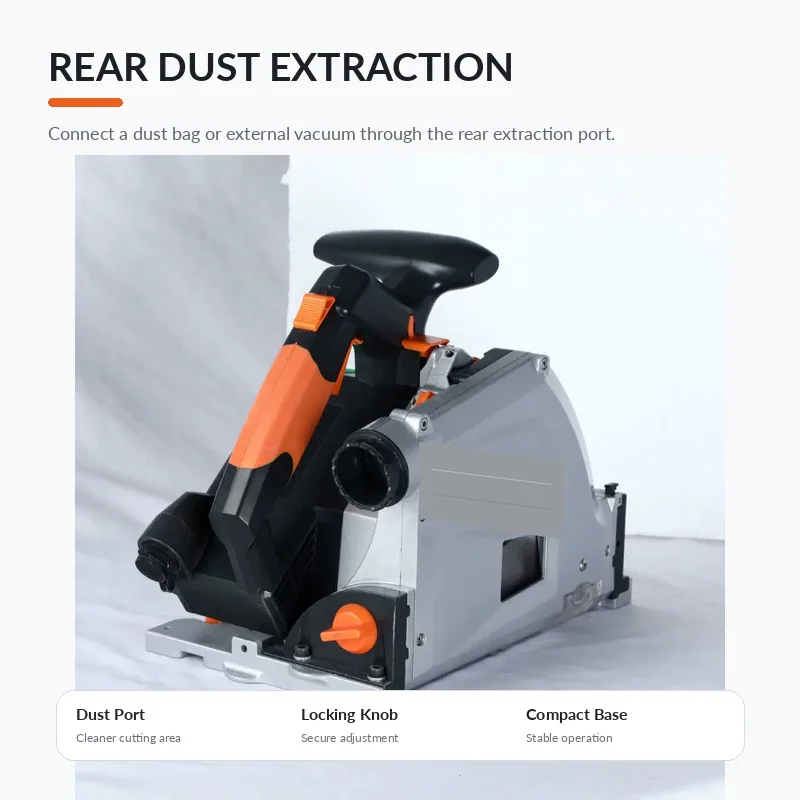

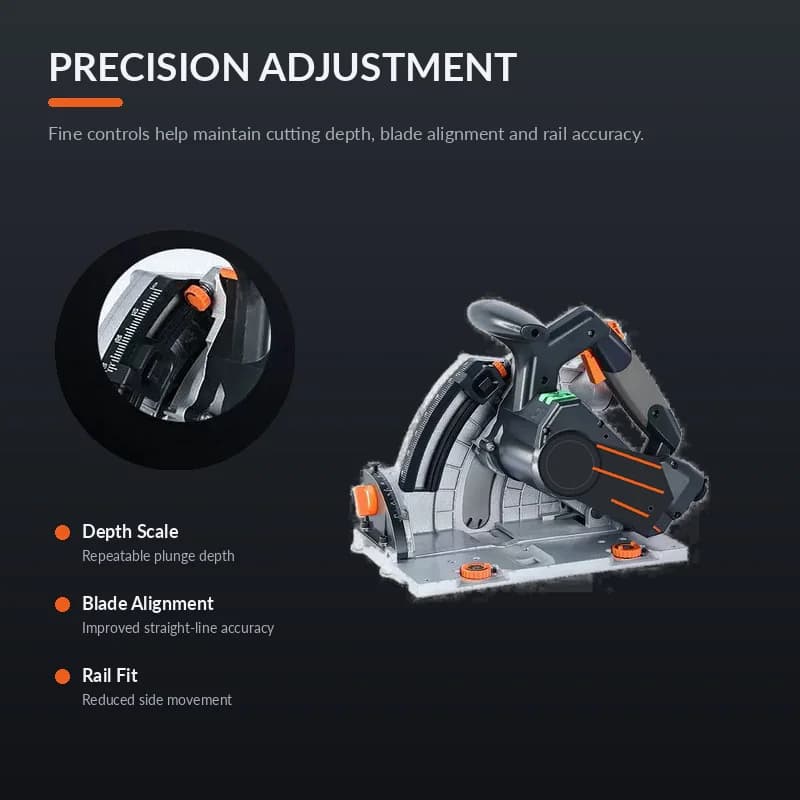

The working role of SJ-60 Brushless Track Saw is long, controlled panel cuts with a configurable guide-rail kit. Its structure should be reviewed as a complete system: motor or support frame, base, guide contact, adjustment controls, cutting interface and dust or receiving provisions. A useful sourcing review asks how those elements behave together in the buyer's process rather than counting isolated marketing labels.
SJ-60 is not a traditional table saw. It is a guided plunge/track saw and should be compared with SJ-55 or other rail saws on capacity and pack structure. The track-saw cutting table can extend panel support but has its own dimensions and commercial scope. This boundary helps search users and purchasing teams reach the correct product. It also prevents a visually similar model, accessory or workstation from being represented as the same configured machine.
Technical data for SJ-60 Brushless Track Saw is published only when it can be tied to the model workbook or matching visual evidence. The SJ-60 product workbook records a 2000 W reference motor, 168 × 1.8 × 20 mm blade, six-speed control, 60 mm maximum depth and 0–45° bevel range. The 220 V / 50 Hz entry is a reference configuration; destination voltage and plug are confirmed on the order rather than inferred. Units, operating conditions and voltage-specific values remain visible so that a buyer can compare like with like.
A quotation for SJ-60 Brushless Track Saw should therefore repeat the selected values and identify every unresolved field. Rated input, no-load behavior, capacity, dimensions and net weight describe different aspects of the product; none can be substituted for another. Optional equipment is documented separately from the main machine.
APPLICATIONS
Materials and application planning
For SJ-60, the confirmed application scope covers solid wood, plywood, MDF, laminated board, particle board, cabinet panels and other verified wood-based panels. Material names alone are not enough to release a cutting setup: density, coating, embedded material, thickness, support, required finish and the approved blade or cutting tool must also be checked.
For recurring production, send representative workpiece information and the expected cut pattern with the inquiry. AXIMET can then relate SJ-60 Brushless Track Saw to rail length, blade specification, extraction, receiving support and inspection points without implying performance beyond the verified configuration.
BUYER SELECTION GUIDE
Model and configuration selection
Model and configuration selection
Specify SJ-60 when the 168 mm blade, 60 mm reference depth and a two-rail package suit the panel size and work method. Buyers should state material, thickness, cut length, dust-control plan, destination voltage and whether the machine is supplied alone or as a complete rail kit.
For SJ-60, selection is stronger when the buyer defines the working envelope before discussing price. Record destination voltage where relevant, panel dimensions, required depth or support size, bevel or positioning needs, daily workflow, dust collection and the desired accessory pack. These inputs separate a technically comparable quotation from one that merely shares the model name.
Guide, blade and interface checks
For SJ-60 Brushless Track Saw, compatibility is confirmed at the interfaces that determine safe operation. That can include blade diameter and bore, guide profile, rail connector, dust port, workbench fixture or receiving geometry, depending on the product. A photo of a component does not by itself prove fit.
For SJ-60, the order record should list each interface in measurable terms and identify the matching accessory. When a buyer already owns rails, blades, extractors or tables, drawings and dimensions can be reviewed before production so the new supply does not rely on a visual assumption.
Procurement documentation
A complete inquiry for SJ-60 Brushless Track Saw includes company and destination, target quantity, material, work dimensions, required operation, voltage when applicable, desired package and any compatibility constraints. This information supports an actionable quotation without forcing the buyer to accept assumptions.
For SJ-60, commercial terms such as MOQ, lead time and price depend on configuration, packaging, quantity and validation work. They are confirmed in the quotation rather than published as fixed promises. Changes after sample approval are recorded so product and documentation stay synchronized.
OPERATION & SAFETY
Operating setup and safety
For SJ-60, support the panel through the full cut, join and clamp guide rails correctly, set depth only slightly beyond the workpiece where the process allows, verify the bevel lock and blade guard, and connect the chosen dust-control device. Isolate electrical power before adjustment or inspection.
For SJ-60, before each shift, inspect cables or frame fasteners, guards and moving controls, guide contact, workpiece support and the surrounding cutting zone. Operators should follow the supplied manual, wear suitable PPE and stop if movement, noise or dust behavior changes. Safety information is model-specific and does not transfer automatically from another saw.
SJ-60
- Model-specific verified data
- Application and interface guidance
- Configuration-controlled accessories
- OEM and export packing support
Compare the operating task, verified capacity, interfaces, support equipment and package together. This page keeps SJ-60 facts separate from other products even when their appearance or general application is similar.
ACCESSORIES & PACKAGE CONTENTS
Guide, blade and interface checks
For SJ-60 Brushless Track Saw, compatibility is confirmed at the interfaces that determine safe operation. That can include blade diameter and bore, guide profile, rail connector, dust port, workbench fixture or receiving geometry, depending on the product. A photo of a component does not by itself prove fit.
For SJ-60, the order record should list each interface in measurable terms and identify the matching accessory. When a buyer already owns rails, blades, extractors or tables, drawings and dimensions can be reviewed before production so the new supply does not rely on a visual assumption.
PACKAGING & SHIPPING
Packaging and transport planning

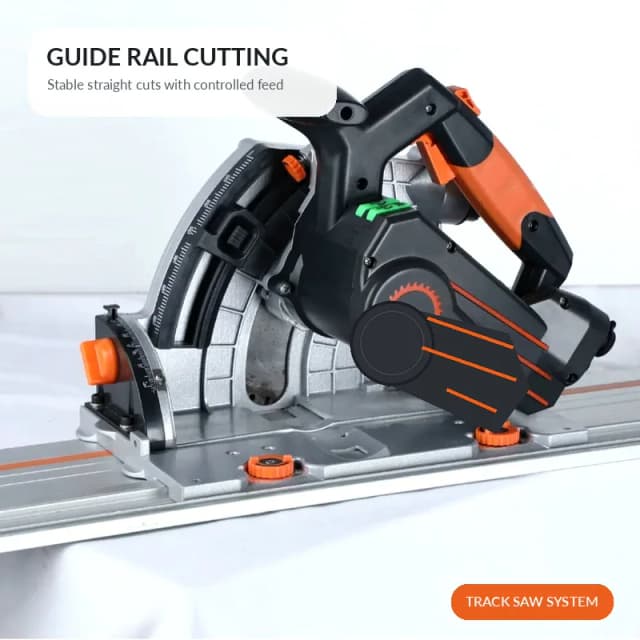

A pictured complete kit can include the SJ-60, 168 mm blade, two 1.4 m rails, two connectors, two quick clamps, case, dust bag, adapter and power cord. Optional blower and wet/dry vacuum images demonstrate compatible dust-management choices, not automatic standard contents.
For SJ-60, export packing is developed around the confirmed shipment route and package contents. Buyers should specify individual or master packaging, pallet or case expectations, labeling languages, barcode data and spare-part separation. The final packing list is checked against the approved configuration before dispatch.
MANUFACTURING
Manufacturing and quality control
SJ-60 checks cover blade-interface dimensions, guide adjustment, rail joint alignment, plunge and return movement, six-stage control, dust port, power-cord configuration and package count. A sample can be approved against the quotation before production packing.
For SJ-60, quality records can be adapted to the order while remaining tied to observable checks. A distributor may request an approved sample, configuration photo, packing list and inspection record. Unsupported claims about certifications, service life, factory statistics or test performance are not added to the page.
QUALITY CONTROL
Manufacturing and quality control
Compare the operating task, verified capacity, interfaces, support equipment and package together. This page keeps SJ-60 facts separate from other products even when their appearance or general application is similar.
OEM & PRIVATE LABEL
OEM and private-label support
For SJ-60, oEM preparation can align product marking, manual language, carton artwork, case label and accessory layout with the distributor program. Electrical and safety labels remain tied to the confirmed market configuration and cannot be copied from another voltage version.
A private-label project begins after technical equivalence has been established. Brand artwork does not replace configuration control. The approval file for SJ-60 Brushless Track Saw should connect product sample, markings, warning labels, manual, carton, accessories and destination electrical requirements.
Get My QuotationFREQUENTLY ASKED QUESTIONS
Questions buyers ask about SJ-60 Brushless Track Saw
What is the SJ-60 Brushless Track Saw used for?
Answer 1 for SJ-60: SJ-60 Brushless Track Saw is intended for long, controlled panel cuts with a configurable guide-rail kit. Its confirmed material scope includes solid wood, plywood, MDF, laminated board, particle board, cabinet panels and other verified wood-based panels. The exact blade, guide, dust-control or support configuration is selected for the workpiece and ordered setup.
How should I choose SJ-60 instead of a related model?
Answer 2 for SJ-60: Specify SJ-60 when the 168 mm blade, 60 mm reference depth and a two-rail package suit the panel size and work method. Buyers should state material, thickness, cut length, dust-control plan, destination voltage and whether the machine is supplied alone or as a complete rail kit.
Which SJ-60 specifications are confirmed?
Answer 3 for SJ-60: The SJ-60 product workbook records a 2000 W reference motor, 168 × 1.8 × 20 mm blade, six-speed control, 60 mm maximum depth and 0–45° bevel range. The 220 V / 50 Hz entry is a reference configuration; destination voltage and plug are confirmed on the order rather than inferred.
Is SJ-60 Brushless Track Saw suitable for my material and dimensions?
Answer 4 for SJ-60: For SJ-60, compare the workpiece with the published capacity and interface data, then provide material, thickness, cut length and required finish. Suitability is confirmed with the selected blade or system; it is not assumed from the product name alone.
What safety and maintenance checks apply to SJ-60?
Answer 5 for SJ-60: Support the panel through the full cut, join and clamp guide rails correctly, set depth only slightly beyond the workpiece where the process allows, verify the bevel lock and blade guard, and connect the chosen dust-control device. Isolate electrical power before adjustment or inspection.
Can SJ-60 Brushless Track Saw be supplied with OEM branding and export packaging?
Answer 6 for SJ-60: OEM preparation can align product marking, manual language, carton artwork, case label and accessory layout with the distributor program. Electrical and safety labels remain tied to the confirmed market configuration and cannot be copied from another voltage version.
What determines the quotation and delivery plan for SJ-60?
Answer 7 for SJ-60: For SJ-60, quantity, configuration, destination requirements, documentation, accessories, packaging and validation work affect the quotation and schedule. AXIMET confirms MOQ, price and lead time for the defined order rather than publishing an unverified universal promise.
PRODUCT INQUIRY
Define your SJ-60 configuration
Send the SJ-60 workpiece, operation, quantity, destination, electrical requirement and accessory list. AXIMET will return a model-specific quotation without mixing parameters from another saw or workstation.
