THREADING TOOLS / INDUSTRIAL PROCUREMENT

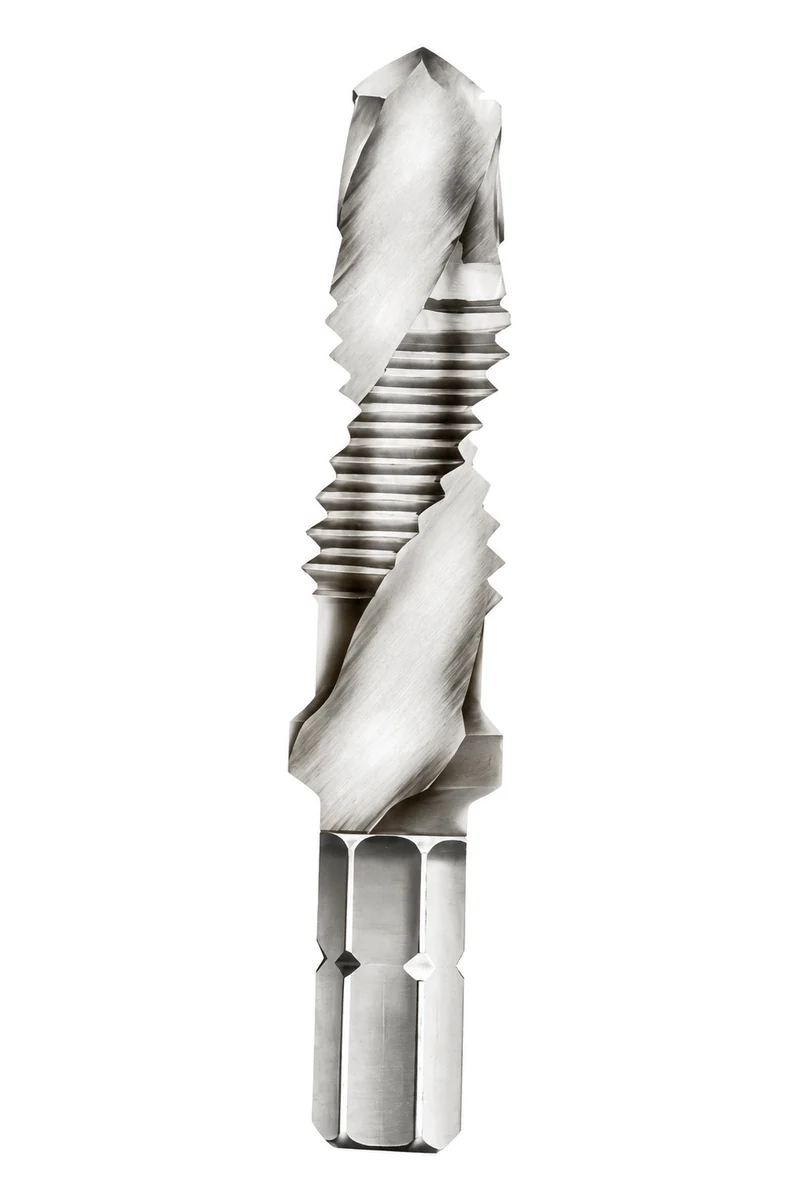

Compact HSS Hex Shank Drill Tap
Use size-specific drill and thread lengths to decide whether the compact geometry fits.
The compact HSS hex-shank drill tap range covers seven metric combinations from M3 × 0.5 to M12 × 1.75. Overall lengths run from 37 to 72 mm, with a 1/4-inch hex interface and separate drill/thread section dimensions. Compact identifies this dimensional family, not a promise that every size is shorter than every alternative.
7 defined entriesSize-by-size dimensions for an identifiable purchasing list.
HSSTie the tool-material requirement to the selected application.
Order-line controlKeep the approved geometry and quantities together for replenishment.
- Compact combination drill and tap design.
- 1/4-inch (6.35 mm) hex shank.
- Listed overall lengths: 37–72 mm.
- Listed sizes: M3 × 0.5 to M12 × 1.75.
PRODUCT SELECTION
Sizes, Dimensions & Drive Interface

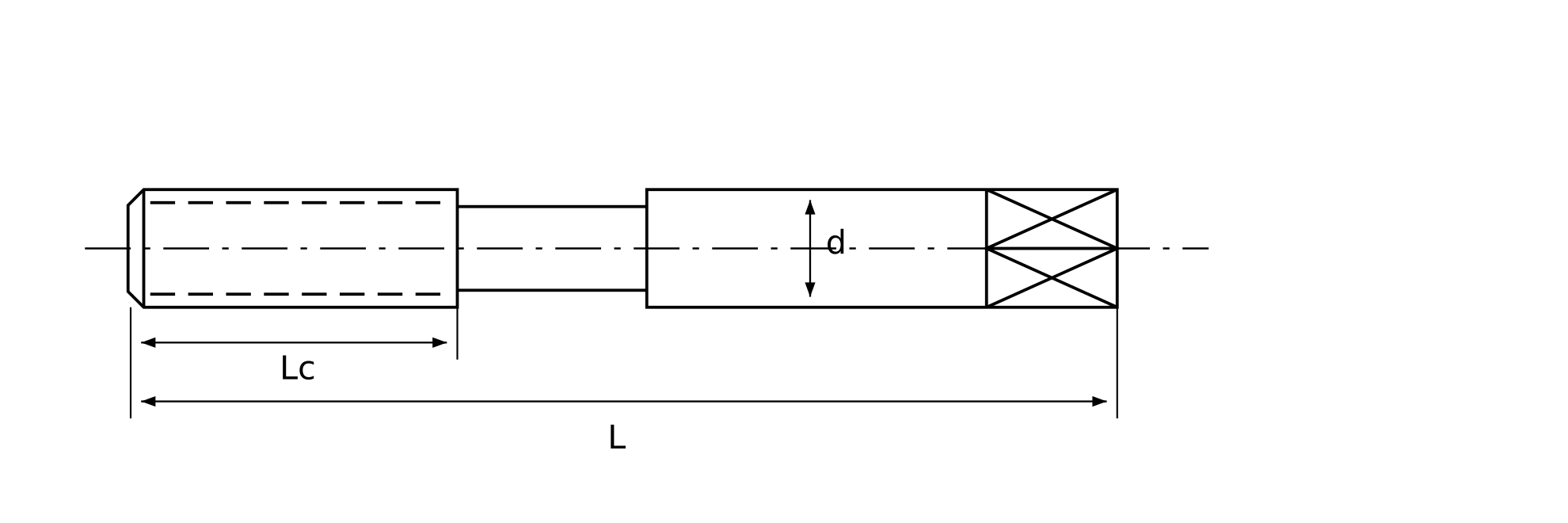

Dimensions are in millimetres except thread designations, drive labels and lead counts. Read each column with the dimension reference below.
| Thread / designation | Overall length (mm) | Drill length (mm) | Thread length (mm) | Hex shank | Catalogue series label |
|---|---|---|---|---|---|
| M3x0.5 | 37 | 6.5 | 9 | 1/4in(6.35mm) | DIN |
| M4x0.7 | 40 | 9 | 9 | 1/4in(6.35mm) | DIN |
| M5x0.8 | 43 | 11 | 10 | 1/4in(6.35mm) | DIN |
| M6x1.0 | 46 | 11.5 | 13 | 1/4in(6.35mm) | DIN |
| M8x1.25 | 54 | 14.5 | 14.5 | 1/4in(6.35mm) | DIN |
| M10x1.5 | 64 | 19 | 18 | 1/4in(6.35mm) | DIN |
| M12x1.75 | 72 | 23 | 20 | 1/4in(6.35mm) | DIN |
Review the drill and thread sections together with component thickness and the required cutting sequence.
The M3 version lists 37 mm overall, 6.5 mm drill length and 9 mm thread length. At M10 the overall length is 64 mm, longer than the short-series M10 entry.
Send the sizes and dimensions your customer needs.Request a Quote →
PRODUCT SELECTION
Application, Chip Path & Selection Limits
Match the component and operation
Compare the tool envelope with a restricted-access component and check thickness against the drill section. Choose the thread/pitch and required full-thread length before deciding whether this configuration fits the job.
Check the operating boundary
A DIN catalogue label without a specific standard number does not define a certified execution. Do not infer a coating from a dark product image or assume the same thickness capacity as another hex-shank drill tap.
PRODUCT SELECTION
Compare the Adjacent Product Families
| Product family | Selection boundary to review |
|---|---|
| Long Series HSS Hex Shank Drill Tap | Compare drilling length, thread length and reach before choosing the long hex-shank combination tool. |
| Short Series HSS Hex Shank Drill Tap | Choose the short metric combination series by its actual dimensions, not its catalogue label. |
| HSS Square Drive Combined Drill Tap | Match the square-drive combined tool to the holder drawing before replacing a hex-shank drill tap. |
Keep the selected family, thread designation and dimensional reference together. Shared nominal sizes or drive shapes do not establish interchangeability.
WORKSHOP & SUPPLIER REVIEW
Workshop, Material Handling & Order Organisation
Compact combination tools require size-by-size comparison, especially where a larger entry is longer than the short-series alternative. Discuss the approved single-tool reference and section dimensions together when organising the order.
Bar-stock handling
Carry the HSS requirement with the item drawing when discussing material preparation for this range.
Component feed and transfer
Keep the approved item identity and dimensional revision with components during order discussions. Use the exact thread and drive dimensions to distinguish similar tools.
Plan the order around the approved item
- Define the thread and application using this product’s selection table.
- Compare the tool interface and cutting geometry with the sample or drawing.
- Agree sample acceptance, quantities by size and the requested pack arrangement.
- Reference the same approved item and revision for replenishment.
QUALITY & SAMPLE ACCEPTANCE
Quality Review for the Selected Specification
Compare the drilling section, thread section and hex interface with the approved reference. Keep the section lengths and transition positions tied to the component thickness and access requirement.
Use the following items to define the sample and order acceptance brief.
| Review item | What to agree | Procurement risk addressed |
|---|---|---|
| Thread identification | Nominal size, required pitch and finished-thread requirement | Avoid the wrong thread family or pitch |
| Dimensions and holding | The M3 version lists 37 mm overall, 6.5 mm drill length and 9 mm thread length. At M10 the overall length is 64 mm, longer than the short-series M10 entry. | Avoid holder mismatch, insufficient reach or unintended substitution |
| Geometry / set identity | Compare the drilling section, thread section and hex interface with the approved reference. Keep the section lengths and transition positions tied to the component thickness and access requirement. | Avoid the wrong cutting form or incomplete member sequence |
| Sample acceptance plan | Agree the reference drawing, acceptance method and sampling requirement for the application | Make sample approval and repeat-order review refer to the same item |
PROCUREMENT & REPLENISHMENT
Packaging, Custom Requests & Bulk Purchasing
Keep the packing brief specific
Attach the component envelope and material thickness when requesting compact tools. Keep overall and section lengths on the order line so purchasing can distinguish a compact M3 from a long or short M3 with the same drive size.
Marking, packs & repeat orders
Include the compact-family reference and critical lengths on the requested packing list. A general drill-bit image or a 1/4-inch hex label does not establish the combined threading configuration.
Turn the selection into a clear purchasing list
Use size-specific drill and thread lengths to decide whether the compact geometry fits.
SELECTION & BUYER QUESTIONS
Product Questions
What makes this drill tap compact?
This family has its own 37–72 mm overall-length table and size-specific drill/thread lengths. At M3 it is 37 mm long; the name is not a universal comparison at every diameter.
Is the compact M10 shorter than the short-series M10?
No. The listed overall lengths are 64 mm here and 58.5 mm in the short series. Review the specific size and section lengths.
Does the DIN label identify a complete standard?
A series label alone is insufficient to specify a particular standard execution. Use the listed dimensions and provide any required standard number with the drawing.
What M3 cutting sections are listed?
The M3 × 0.5 item has a 6.5 mm drill section and a 9 mm thread section, with 37 mm overall length and a 6.35 mm hex shank.
Can surface colour establish a coating choice?
No. Colour in a product photograph does not define the coating chemistry or its application suitability. State the required surface treatment separately for review.
How can I avoid receiving a different hex-shank combination series?
Reference the compact family and every critical length, plus thread/pitch and the approved image or drawing. Add workpiece thickness, material and quantity to the enquiry.
PRODUCT ENQUIRY
Request a Quote for Compact HSS Hex Shank Drill Tap
Send the selected thread designation, quantities and the application details below. Add a drawing or size list to keep the enquiry tied to the required configuration.
