Long Shank Ball Nose End Mills

Select extended-length ball nose end mills by diameter, ball radius, cutting length and holder fit. AXIMET’s catalog includes three long-shank series groups for buyers who need to compare individual models for contouring and profile work.

Rounded cutting ends for contoured features
Two-flute models across the listed catalog groups
Length and shank options organized by model

Request a Quote →Compare Specifications ↓

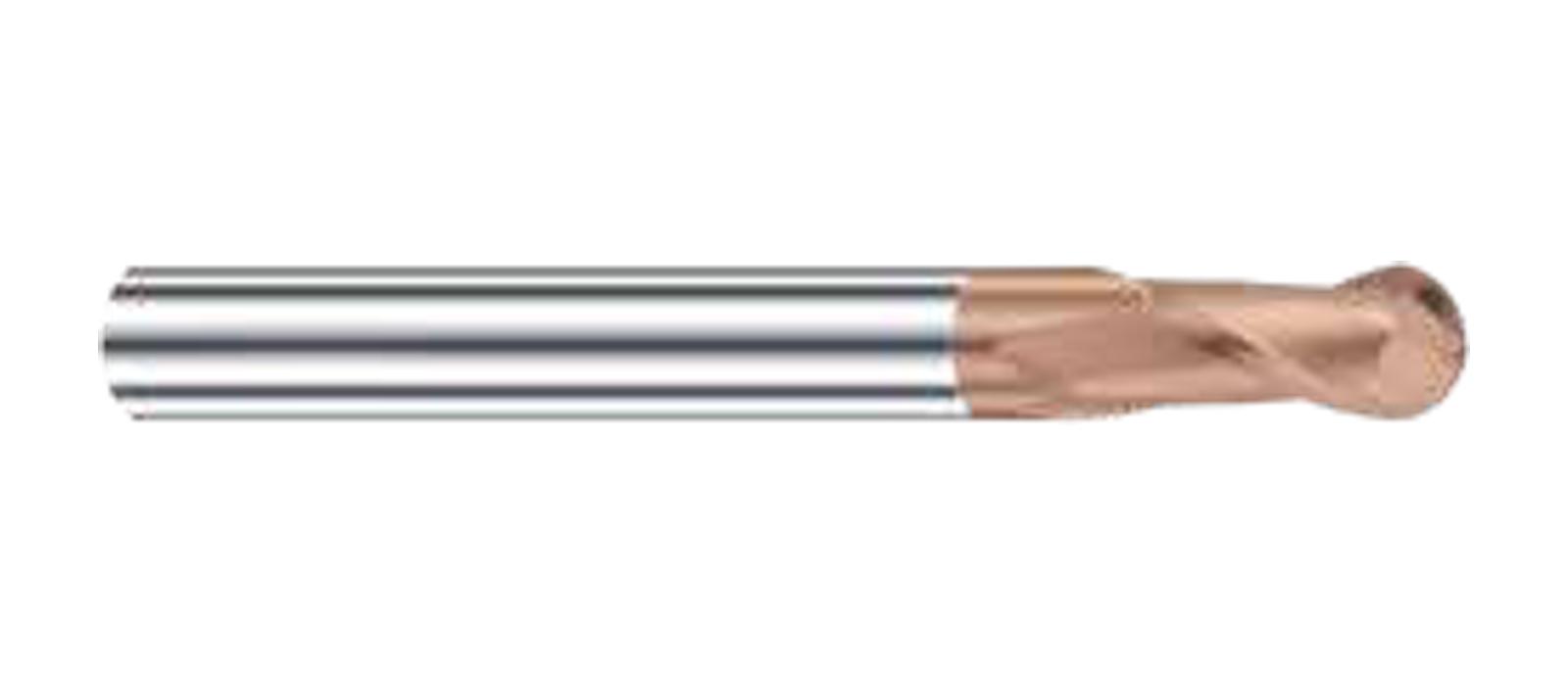

HBH HBI HBJ Long Shank Ball Nose End Mills catalog product view

HBH HBI HBJ Long Shank Ball Nose End Mills product introduction view

Match the Ball Profile to Your Application

A ball nose end mill follows a curved profile using its rounded cutting end. When a tool needs additional length, compare the assembly against the feature and holder rather than ordering by diameter alone.

Match ball radius to the contour or feature drawing.
Check cutting length and overall length as separate dimensions.
Specify the holder, part access and quantities with your order.

Ball Nose Series and Model Selection

The catalog lists 92 model records in the HBH/HBI/HBJ, HBXH/HBXI/HBXJ and DBH/DBI/DBJ extended-length groups. Each listing includes the tool's cutting diameter, radius, flute length, overall length, shank diameter and flute count; effective length is supplied for some rows.

Compare the individual tables before building a mixed order. For example, HBH0202A and HBH0202 both list D2 and R1 but show different shank diameters. That distinction matters when the cutter must fit an existing holder.

How Much Reach Does Your Contour Require?

Overall length measures the complete tool. Flute length identifies the cutting section; a listed effective length describes a separate dimension on the drawing. For a recessed profile, review these dimensions together with the holder projection and wall clearance. Where an effective length is not listed, request the information you need for your setup instead of treating the blank as zero.

For a narrow deep feature, a reduced-neck tool may be the more relevant comparison. Names vary by supplier, so compare the geometry rather than relying on a “long shank” or “long reach” label alone. Review the long reach ball nose end mill page and compare the corresponding tool drawing with the pocket.

From Part Drawing to Cutter Choice

Curved cavities and molds. Match the ball radius and diameter to the surface and available access. Consider the toolholder and clamps along the whole path.

Finishing a contour. Cutting contact on a ball end changes with the programmed position. The effective cutting diameter at the contact point can be smaller than the nominal tool diameter, so the programming and cutting conditions need to account for the actual engagement.

A replacement assortment. Record model, radius, flute length, overall length and shank diameter for each size. A longer overall tool is not automatically interchangeable with a shorter ball nose of the same nominal diameter. For a replacement order, compare the existing tool drawing with the selected row, including ball radius, flute length, shank diameter and overall length, then specify any other required fit or machining conditions.

Preparing a Purchase Specification

Provide the feature drawing, workpiece material, operation and machine or holder. Identify the dimensional checks and drawing revision required for sample approval. When placing a repeat order, retain the approved model code and list quantities separately for each item. Include any requested marking, packaging or documentation with the RFQ so the requirements can be reviewed.

Catalog Series, Product Views and Dimension Drawings

HBH HBI HBJ Series · R023

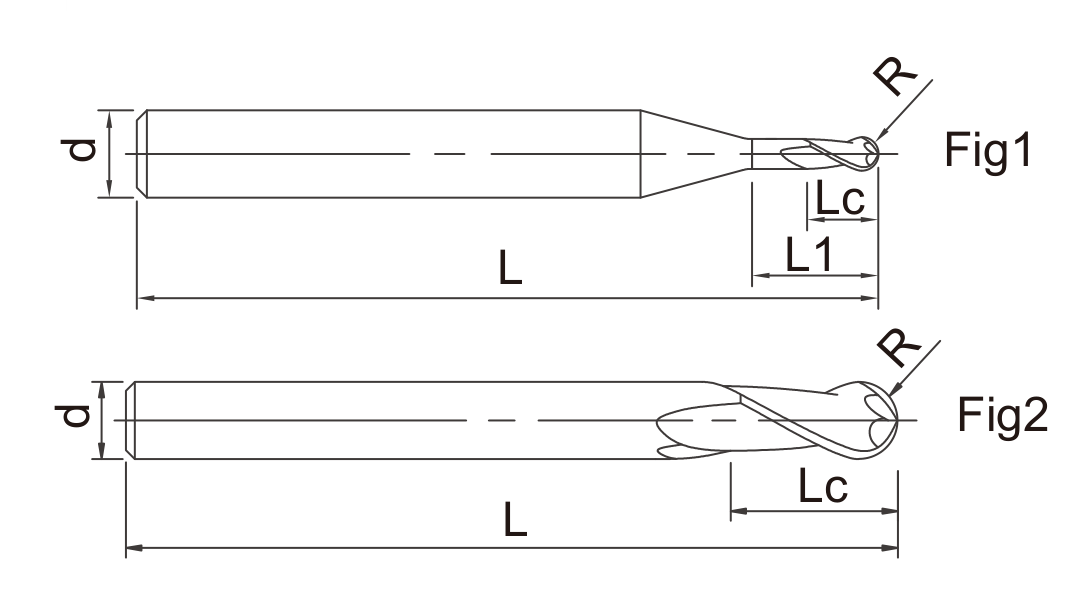

HBH HBI HBJ Long Shank Ball Nose End Mills catalog dimension drawing — HBH HBI HBJ dimension drawing · R023

HBXH HBXI HBXJ Series · R025

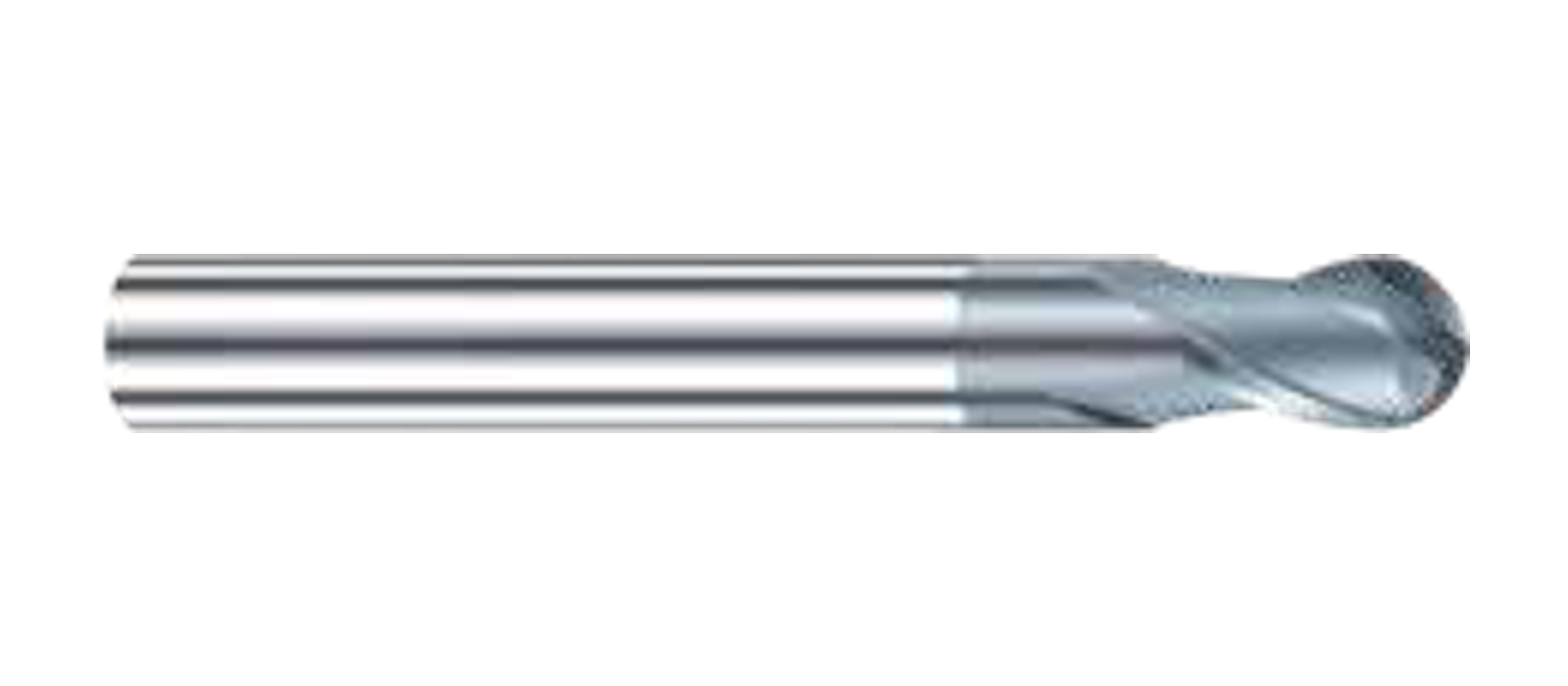

HBXH HBXI HBXJ Long Shank Ball Nose End Mills catalog product view — HBXH HBXI HBXJ product view · R025

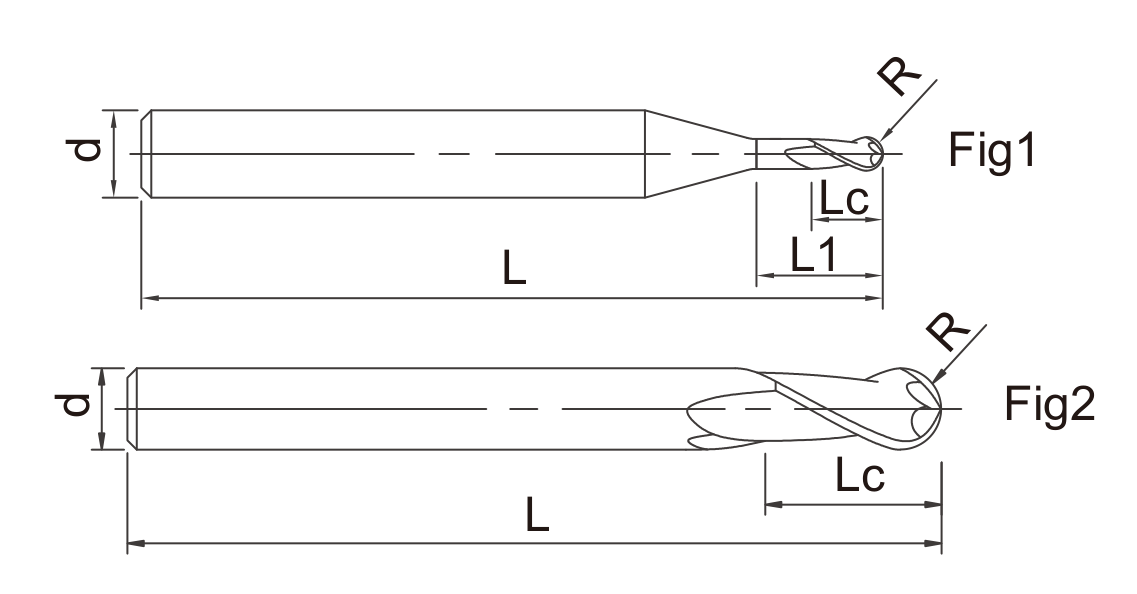

HBXH HBXI HBXJ Long Shank Ball Nose End Mills catalog dimension drawing — HBXH HBXI HBXJ dimension drawing · R025

DBH DBI DBJ Series · R046

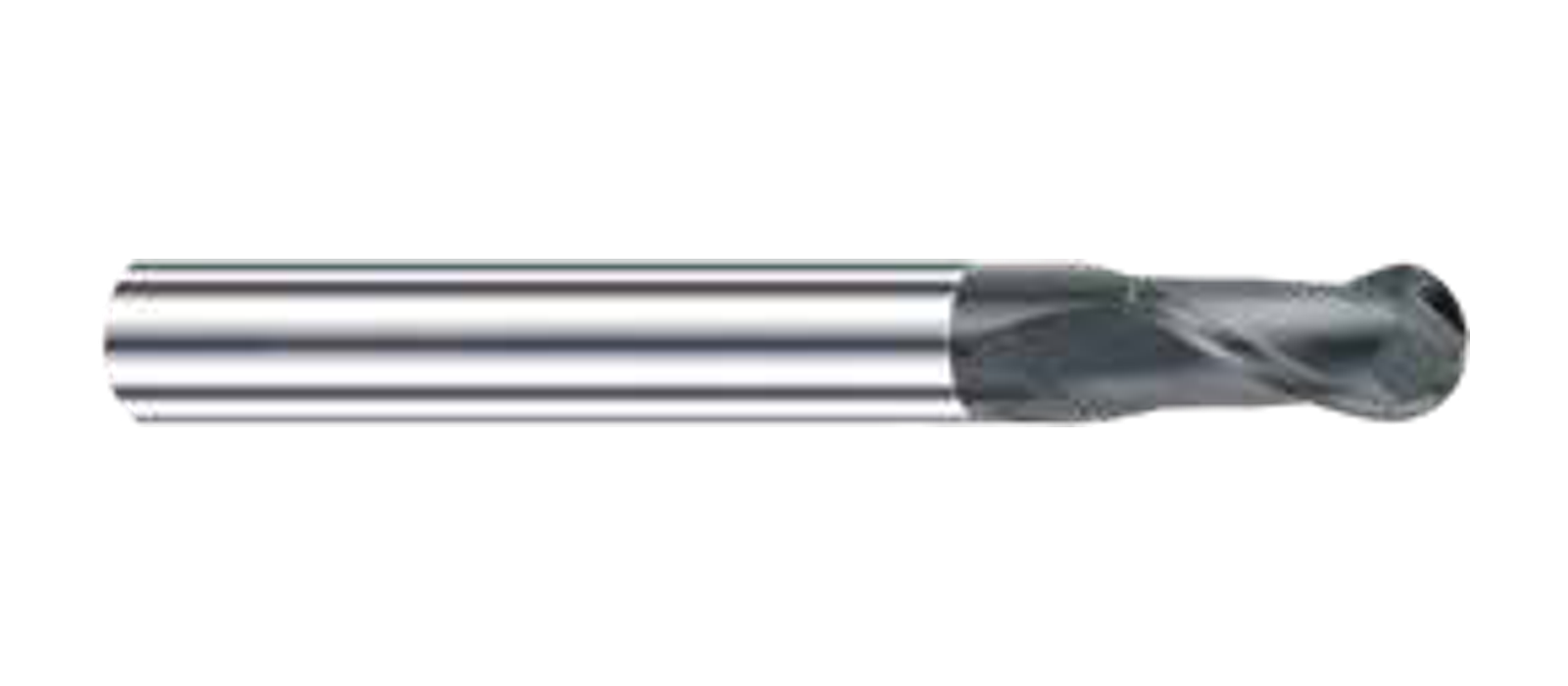

DBH DBI DBJ Long Shank Ball Nose End Mills catalog product view — DBH DBI DBJ product view · R046

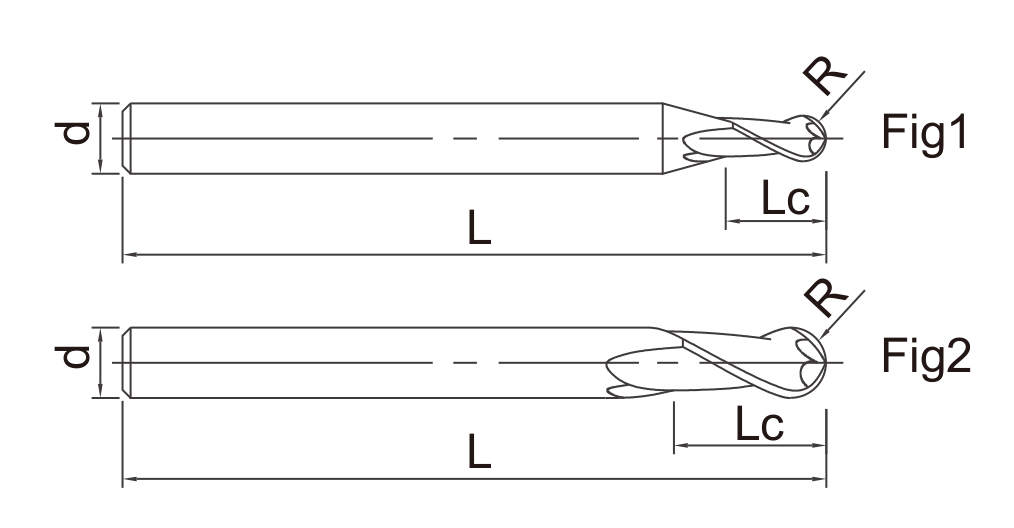

DBH DBI DBJ Long Shank Ball Nose End Mills catalog dimension drawing — DBH DBI DBJ dimension drawing · R046

Catalog Model Specifications

Use the ball radius, cutting diameter and length dimensions in each row to compare long-shank contouring tools.

HBH HBI HBJ · R023 · 2 FLUTES

Type No.	Diameter (D, mm)	Ball Radius (R, mm)	Flute length (Lc, mm)	Effective length (L1, mm)	Overall length (L, mm)	Shank Dia (d, mm)	Flutes (F)
HBH0202A	D2	R1	2	4	L75	4	2
HBH0202	D2	R1	2	4	L75	6	2
HBH0252A	D2.5	R1.25	2.5	5	L75	4	2
HBH0252	D2.5	R1.25	2.5	5	L75	6	2
HBH0302A	D3	R1.5	3	6	L75	4	2
HBH0302	D3	R1.5	3	6	L75	6	2
HBH0352A	D3.5	R1.75	3.5	7	L75	4	2
HBH0352	D3.5	R1.75	3.5	7	L75	6	2
HBH0402A	D4	R2	6	—	L75	4	2
HBH0402	D4	R2	6	—	L75	6	2
HBH0502Z	D5	R2.5	7.5	—	L75	5	2
HBH0502	D5	R2.5	7.5	—	L75	6	2
HBH0602	D6	R3	9	—	L75	6	2
HBH0802	D8	R4	12	—	L75	8	2
HBI0202	D2	R1	2	4	L100	6	2
HBI0252	D2.5	R1.25	2.5	5	L100	6	2
HBI0302	D3	R1.5	3	6	L100	6	2
HBI0352	D3.5	R1.75	3.5	7	L100	6	2
HBI0402	D4	R2	6	—	L100	6	2
HBI0502Z	D5	R2.5	7.5	—	L100	5	2
HBI0502	D5	R2.5	7.5	—	L100	6	2
HBI0602	D6	R3	9	—	L100	6	2
HBI0802	D8	R4	12	—	L100	8	2
HBI1002	D10	R5	15	—	L100	10	2
HBI1202	D12	R6	18	—	L100	12	2
HBJ0602	D6	R3	9	—	L150	6	2
HBJ0802	D8	R4	12	—	L150	8	2
HBJ1002	D10	R5	15	—	L150	10	2
HBJ1202	D12	R6	18	—	L150	12	2
HBJ1602	D16	R8	24	—	L150	16	2
HBJ2002	D20	R10	30	—	L150	20	2

HBXH HBXI HBXJ · R025 · 2 FLUTES

Type No.	Diameter (D, mm)	Ball Radius (R, mm)	Flute length (Lc, mm)	Effective length (L1, mm)	Overall length (L, mm)	Shank Dia (d, mm)	Flutes (F)
HBXH0202A	D2	R1	2	4	L75	4	2
HBXH0202	D2	R1	2	4	L75	6	2
HBXH0252A	D2.5	R1.25	2.5	5	L75	4	2
HBXH0252	D2.5	R1.25	2.5	5	L75	6	2
HBXH0302A	D3	R1.5	3	6	L75	4	2
HBXH0302	D3	R1.5	3	6	L75	6	2
HBXH0352A	D3.5	R1.75	3.5	7	L75	4	2
HBXH0352	D3.5	R1.75	3.5	7	L75	6	2
HBXH0402A	D4	R2	6	—	L75	4	2
HBXH0402	D4	R2	6	—	L75	6	2
HBXH0502Z	D5	R2.5	7.5	—	L75	5	2
HBXH0502	D5	R2.5	7.5	—	L75	6	2
HBXH0602	D6	R3	9	—	L75	6	2
HBXH0802	D8	R4	12	—	L75	8	2
HBXI0202	D2	R1	2	4	L100	6	2
HBXI0252	D2.5	R1.25	2.5	5	L100	6	2
HBXI0302	D3	R1.5	3	6	L100	6	2
HBXI0352	D3.5	R1.75	3.5	7	L100	6	2
HBXI0402	D4	R2	6	—	L100	6	2
HBXI0502Z	D5	R2.5	7.5	—	L100	5	2
HBXI0502	D5	R2.5	7.5	—	L100	6	2
HBXI0602	D6	R3	9	—	L100	6	2
HBXI0802	D8	R4	12	—	L100	8	2
HBXI1002	D10	R5	15	—	L100	10	2
HBXI1202	D12	R6	18	—	L100	12	2
HBXJ0602	D6	R3	9	—	L150	6	2
HBXJ0802	D8	R4	12	—	L150	8	2
HBXJ1002	D10	R5	15	—	L150	10	2
HBXJ1202	D12	R6	18	—	L150	12	2

DBH DBI DBJ · R046 · 2 FLUTES

Type No.	Diameter (D, mm)	Ball Radius (R, mm)	Flute length (Lc, mm)	Overall length (L, mm)	Shank Dia (d, mm)	Flutes (F)
DBH0202A	D2	R1	4	L75	4	2
DBH0202	D2	R1	4	L75	6	2
DBH0252A	D2.5	R1.25	5	L75	4	2
DBH0252	D2.5	R1.25	5	L75	6	2
DBH0302A	D3	R1.5	6	L75	4	2
DBH0302	D3	R1.5	6	L75	6	2
DBH0352A	D3.5	R1.75	8	L75	4	2
DBH0352	D3.5	R1.75	8	L75	6	2
DBH0402A	D4	R2	8	L75	4	2
DBH0402	D4	R2	8	L75	6	2
DBH0502Z	D5	R2.5	10	L75	5	2
DBH0502	D5	R2.5	10	L75	6	2
DBH0602	D6	R3	12	L75	6	2
DBH0802	D8	R4	16	L75	8	2
DBI0202	D2	R1	4	L100	6	2
DBI0252	D2.5	R1.25	5	L100	6	2
DBI0302	D3	R1.5	6	L100	6	2
DBI0352	D3.5	R1.75	8	L100	6	2
DBI0402A	D4	R2	8	L100	4	2
DBI0402	D4	R2	8	L100	6	2
DBI0502Z	D5	R2.5	10	L100	5	2
DBI0502	D5	R2.5	10	L100	6	2
DBI0602	D6	R3	12	L100	6	2
DBI0802	D8	R4	16	L100	8	2
DBI1002	D10	R5	20	L100	10	2
DBI1202	D12	R6	24	L100	12	2
DBJ0602	D6	R3	12	L150	6	2
DBJ0802	D8	R4	16	L150	8	2
DBJ1002	D10	R5	20	L150	10	2
DBJ1202	D12	R6	24	L150	12	2
DBJ1602	D16	R8	32	L150	16	2
DBJ2002	D20	R10	40	L150	20	2

Production Equipment Reference

The photographs below show production equipment and workshop operations used as manufacturing-reference material for carbide tooling enquiries. Process requirements are confirmed for the selected model and order.

CNC tool grinding equipment on the workshop floor — reference image for Long Shank Ball Nose End Mills — **CNC Tool Grinding Cell**
Enclosed CNC tool-grinding equipment shown on the workshop floor.

A multi-tank cleaning line in the tool production workshop — reference image for Long Shank Ball Nose End Mills — **Ultrasonic Cleaning Line**
Multi-tank cleaning equipment shown in the workshop.

A row of enclosed CNC grinding machines — reference image for Long Shank Ball Nose End Mills — **CNC Grinding Equipment**
A row of enclosed CNC grinding machines viewed from the workshop aisle.

Enclosed tool-grinding equipment with an operator area alongside — reference image for Long Shank Ball Nose End Mills — **Tool Grinding Machine**
Enclosed tool-grinding equipment with an adjacent operator area.

A tool-grinding machine with a robotic handling enclosure — reference image for Long Shank Ball Nose End Mills — **Automated Tool Grinding Cell**
Tool-grinding equipment with a robotic handling enclosure.

Tool-grinding machines with enclosed robotic handling equipment — reference image for Long Shank Ball Nose End Mills — **Automated Grinding Equipment**
Enclosed grinding and robotic-handling equipment shown from another workshop position.

Enclosed CNC grinding equipment arranged along the workshop aisle — reference image for Long Shank Ball Nose End Mills — **CNC Grinding Machines**
CNC grinding machines arranged along a workshop aisle.

An enclosed tool-coating unit in the workshop — reference image for Long Shank Ball Nose End Mills — **Tool Coating Equipment**
Enclosed tool-coating equipment shown in the production area.

Vacuum-chamber equipment in the coating area — reference image for Long Shank Ball Nose End Mills — **Coating Process Equipment**
Vacuum-chamber equipment shown in the coating area.

An operator working at an enclosed laser-marking station — reference image for Long Shank Ball Nose End Mills — **Laser Marking Operation**
An operator works at an enclosed laser-marking station.

Machine workstations in the tool-finishing area — reference image for Long Shank Ball Nose End Mills — **Tool Finishing Workstations**
Machine workstations shown in a tool-finishing area.

An operator beside a tool honing and polishing machine — reference image for Long Shank Ball Nose End Mills — **Cutting Edge Preparation**
An operator stands beside tool honing and polishing equipment.

An operator beside enclosed tool honing equipment — reference image for Long Shank Ball Nose End Mills — **Edge Honing and Polishing**
An operator stands beside enclosed edge-honing and polishing equipment.

Enclosed wet-blasting equipment in the surface-finishing area — reference image for Long Shank Ball Nose End Mills — **Wet Blasting Equipment**
Enclosed wet-blasting equipment shown in the surface-finishing area.

An alternate image of enclosed wet-blasting equipment — reference image for Long Shank Ball Nose End Mills — **Wet Blasting Equipment — Alternate**
A second workshop view of enclosed wet-blasting equipment.

Inspection and Measurement Equipment Reference

The photographs below show inspection and measurement equipment used when discussing drawing dimensions and order requirements. The inspection scope is confirmed for the selected order.

Operators working at optical inspection and tool-measuring stations — reference image for Long Shank Ball Nose End Mills — **Tool Inspection Room**
Operators work at optical inspection stations.

Cutting Tool Profile Measurement

An operator positions a cutting tool at a profile-measuring station.

Optical measuring workstations in the inspection area — reference image for Long Shank Ball Nose End Mills — **Measurement Workstations**
Optical measurement workstations shown in the inspection area.

A balancing instrument with a protective enclosure — reference image for Long Shank Ball Nose End Mills — **Balancing Instrument**
A balancing instrument with a protective enclosure.

A tool presetter with an optical measuring arm and display — reference image for Long Shank Ball Nose End Mills — **Tool Presetting and Dimensional Review**
A tool presetting station with an optical measuring arm and display.

An optical tool presetter and measurement display — reference image for Long Shank Ball Nose End Mills — **Optical Tool Presetter**
An optical tool presetter with a measurement display.

Operators inspecting tools at camera-based inspection workstations — reference image for Long Shank Ball Nose End Mills — **Optical Inspection**
Operators inspect tools at camera-based optical workstations.

An operator setting a tool in an enclosed measuring machine — reference image for Long Shank Ball Nose End Mills — **Tool Measurement**
An operator positions a tool in an enclosed measuring machine.

Frequently Asked Questions

What is a long shank ball nose end mill used for?

It is selected for profile or contour milling where the tool's extended overall length is relevant to the setup. Confirm the cutting geometry and access against the part.

What is the difference between ball nose and corner radius tools?

A ball nose has a rounded profile across the end; a corner-radius tool has a flat-ended profile with radiused outer corners. They do not produce identical shapes by default.

Is the ball radius the same as the cutting diameter?

No. They describe different dimensions. Refer to the R and D values in the model table rather than reading them as the same number.

How should I check a long-shank ball nose tool for a deep cavity?

Use the ball profile and tool drawing to check the cavity path, neck geometry and clearance around the holder. Overall length alone does not guarantee access.

Why does effective cutting diameter matter?

At a given contact point on the ball, the engaged diameter can be smaller than the full nominal diameter. This affects how the programmed cutting conditions are interpreted.

What information should a distributor send for a quote?

Provide model and quantity by size, intended workpiece and operation, holder details and any drawing, labeling or packaging requirements.

Request a Quote for Long Shank Ball Nose End Mills

Send the ball radius, cutting diameter, required lengths, shank diameter and quantity for each model, together with the contour requirements and holder details.
