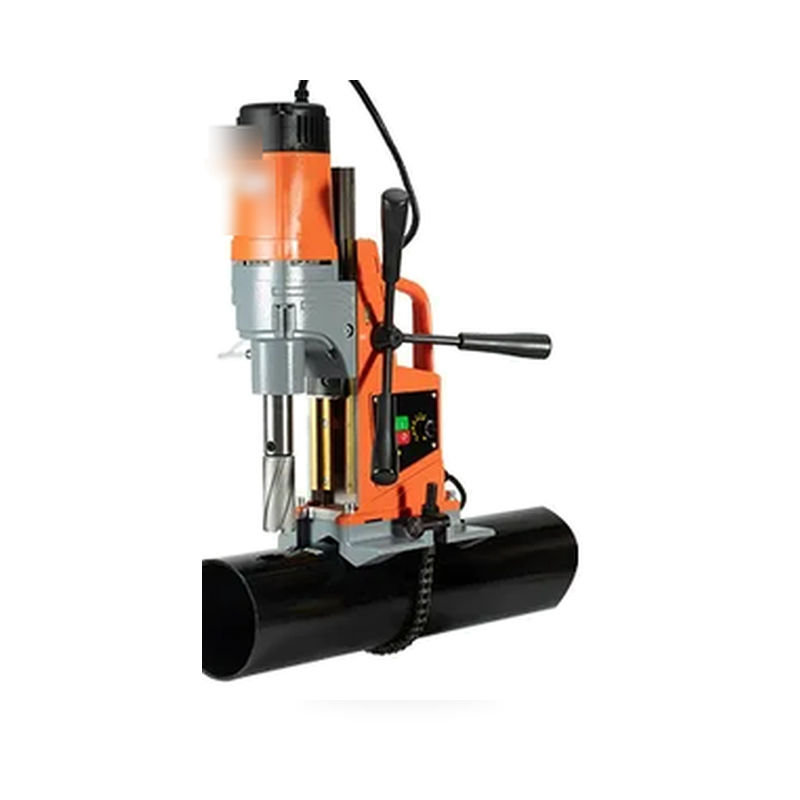

The AXG8860 is a pipe drilling magnetic drilling machine with a confirmed maximum 60 mm annular cutter drilling diameter, 1800 W rated power, 300 r/min no-load speed and 225 mm stroke. It is positioned for distributors and industrial buyers sourcing equipment for pipe drilling and on-site pipe fabrication.

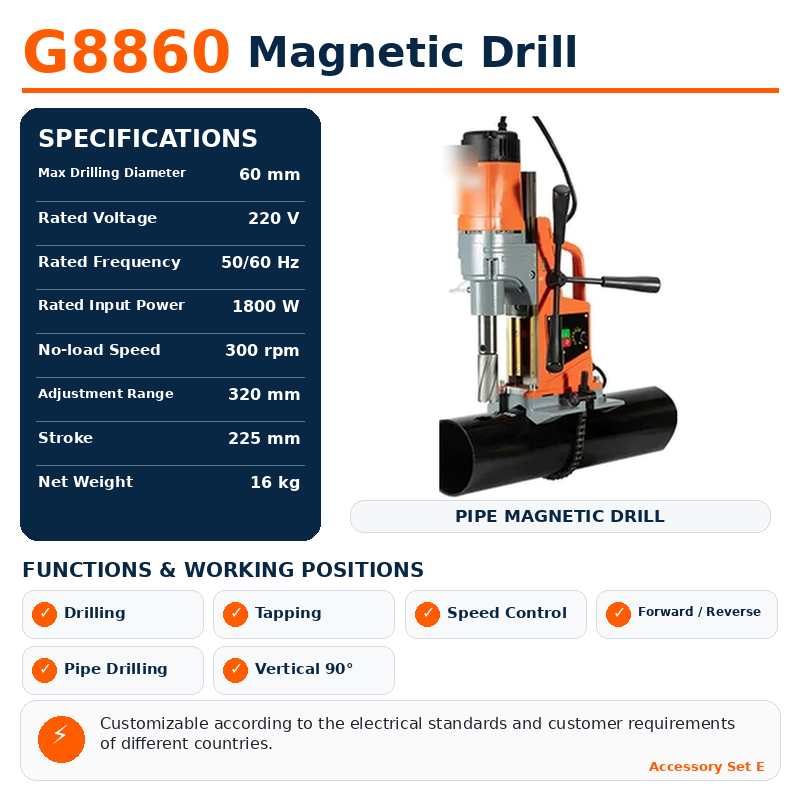

ModelAXG8860
Max Annular Cutter Diameter60 mm
Rated Power1800 W
No-load Speed300 r/min
Pipe Mounting RangeMaximum adjustable pipe diameter: 320 mm
Model: AXG8860 · OEM options available subject to confirmed order configuration.
BUYER SELECTION QUESTION
Need a pipe drilling magnetic drill with a confirmed 60 mm annular cutter capacity?
PRODUCT HIGHLIGHTS
Four Confirmed Reasons to Consider AXG8860
01
60 mm Annular Capacity
The size designation refers to the confirmed maximum annular cutter drilling diameter, not the physical dimensions of the machine.
02
1800 W Rated Power
The confirmed rated input provides a controlled basis for comparing this model with other AXIMET magnetic drills.
03
Defined Fixed Speed
The model uses a fixed no-load speed, confirmed at 300 r/min.
04
Pipe Mounting Range
The confirmed value is Maximum adjustable pipe diameter: 320 mm; final application suitability depends on the mounting surface or pipe configuration.
PRODUCT & SUPPLY EVIDENCE
Matched by Model, Function and Industrial Use
Exact-model images are identified separately from product-system, application and factory evidence. Supporting images explain the supply system and are not presented as additional views of AXG8860.
Key incoming components are checked against the applicable production specification before assembly.
02
Motor and Gearbox Check
Motor operation and gearbox function are checked during assembly.
03
Electrical Safety Inspection
Electrical connections, switches and protective functions are inspected before release.
04
Magnetic or Mounting Check
The applicable magnetic base or pipe-mounting arrangement is checked under the defined factory procedure.
05
No-load Running Test
Running direction, speed response and abnormal noise are checked without cutting load.
06
Final Assembly Inspection
Assembly condition, appearance, accessories and packaging are checked before dispatch preparation.
PACKAGING AND DELIVERY
Package Details Are Confirmed with the Order
Product and specification images are matched to the confirmed model.
Final carrying case, accessory set, labels, carton and OEM packaging are confirmed with the order.
FREQUENTLY ASKED QUESTIONS
Questions About AXG8860 60mm Pipe Magnetic Drill
What does the 60 mm capacity of AXG8860 mean?+
It means the model has a confirmed maximum 60 mm annular cutter drilling diameter. The value describes hole-making capacity, not machine dimensions. Cutting depth, cutter interface and workpiece conditions must be confirmed.
Is AXG8860 a variable-speed model?+
No. The confirmed no-load speed is 300 r/min. Select the cutter and application to suit this fixed-speed configuration.
Does AXG8860 include reverse operation?+
Reverse operation is not confirmed for this model and is therefore not claimed on this page.
Which annular cutters are compatible?+
HSS or TCT annular cutters can be reviewed according to the required diameter, cutting depth and spindle interface. AXIMET confirms the machine-and-cutter combination before quotation.
Can voltage, plug and OEM packaging be customized?+
Voltage, plug, product color, logo, nameplate, manual language, labels and packaging can be discussed. Final scope, quantity, timing and cost are confirmed with the order.
PRODUCT INQUIRY
Request a Quote for This AXG8860 60mm Pipe Magnetic Drill
For a faster recommendation, include the required hole diameter, cutting depth, workpiece material, quantity, destination country and voltage.
