Use this model for steel plate, structural steel, angle steel, machinery work, bridge or railway maintenance, subject to the actual workpiece and cutting-tool compatibility. AXIMET can review market-specific voltage and configuration requirements for OEM or private-label supply. Send the application, quantity and destination market before quotation so the machine, tool interface and package can be checked together.
For a broader sourcing comparison, review our magnetic drilling machines before confirming dimensions, interfaces and pack formats.
Before finalizing a specification, use our magnetic drill selection guide to compare capacity, application and operating requirements.

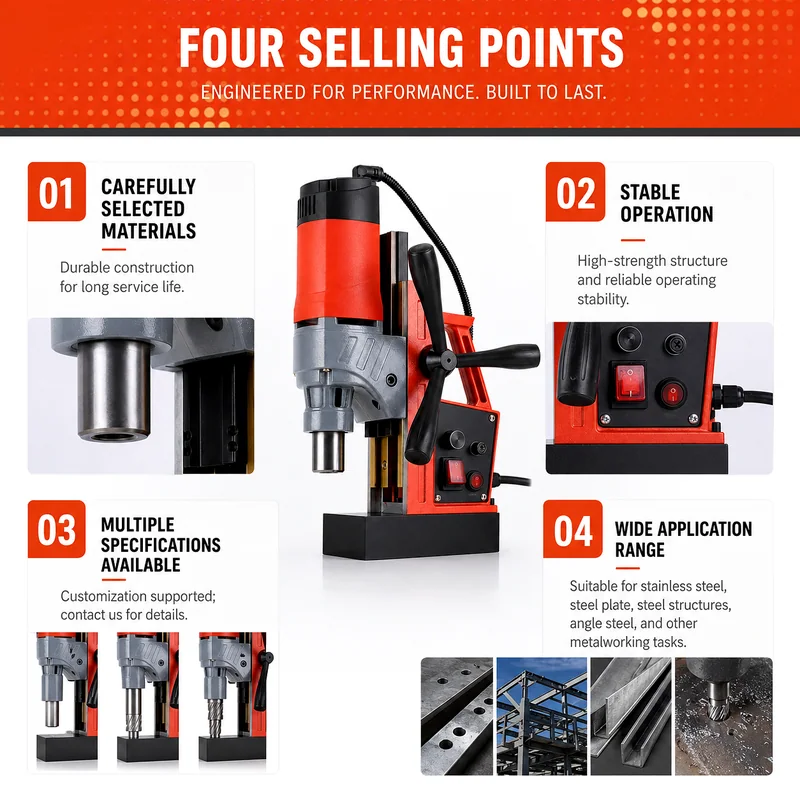

KEY PRODUCT FEATURES
Verified details buyers can compare
01
12,000 N Magnetic Holding
The verified magnetic holding specification supports stable positioning on a suitable clean ferrous surface. Actual holding still depends on material, thickness, surface condition and full base contact.
02
0–620 r/min Speed Range
The confirmed no-load range provides a defined basis for matching speed to the approved tool and task. Cutter size, workpiece and operating conditions must be reviewed before use.
03
180 mm Working Stroke
The verified vertical stroke provides setup travel for applicable drilling arrangements. Buyers should also confirm cutter length, clearance and the actual tool interface.
04

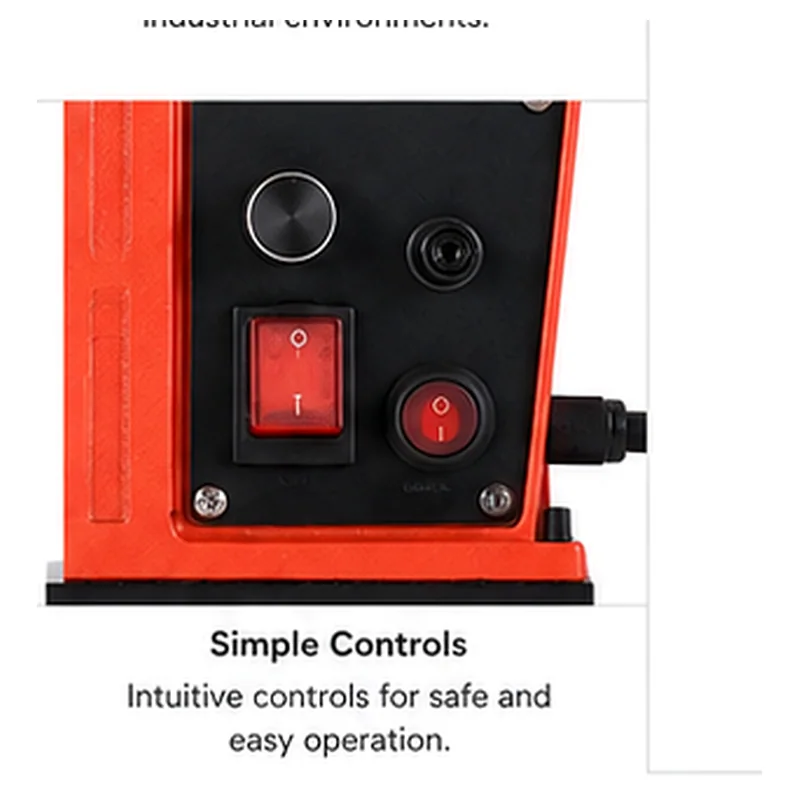

Direct Manual Control

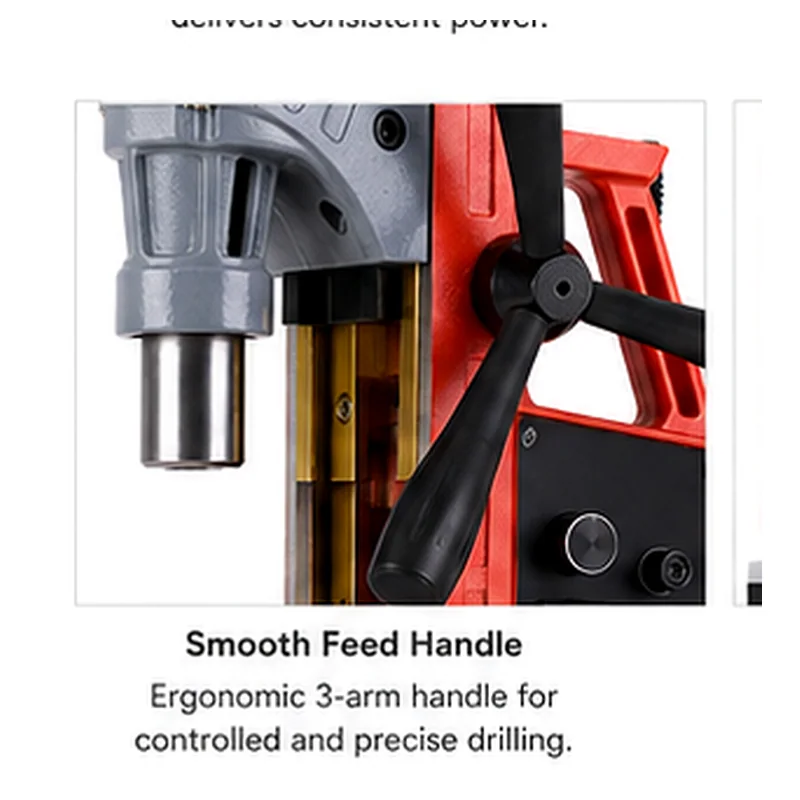

The product images show a simple control panel and three-spoke feed handle. This layout gives operators direct switch access and controlled manual feeding without implying unverified electronic functions.

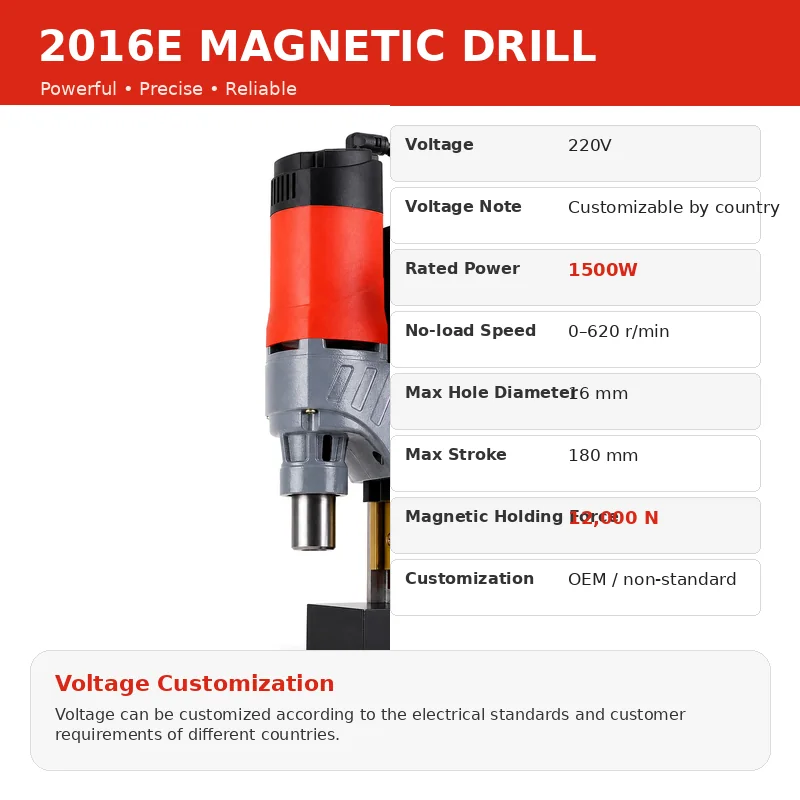

TECHNICAL SPECIFICATIONS
Confirmed 2016E parameters
Voltage220 V
Rated power1500 W
No-load speed0–620 r/min
Maximum hole diameter16 mm
Maximum stroke180 mm
Magnetic holding force12,000 N
Confirm quantity, voltage, plug, application, tool interface, packaging and destination market. Net weight, package dimensions and spindle type are not published because the source does not verify them.
BUYER GUIDANCE
Select by the complete application
Confirm the hole diameter and depth, workpiece material and thickness, mounting surface, operating position, destination voltage, plug, quantity and packaging. The 16 mm value is the verified maximum hole diameter in the supplied workbook; it must not be treated as a universal annular-cutter capacity without tool-interface confirmation.

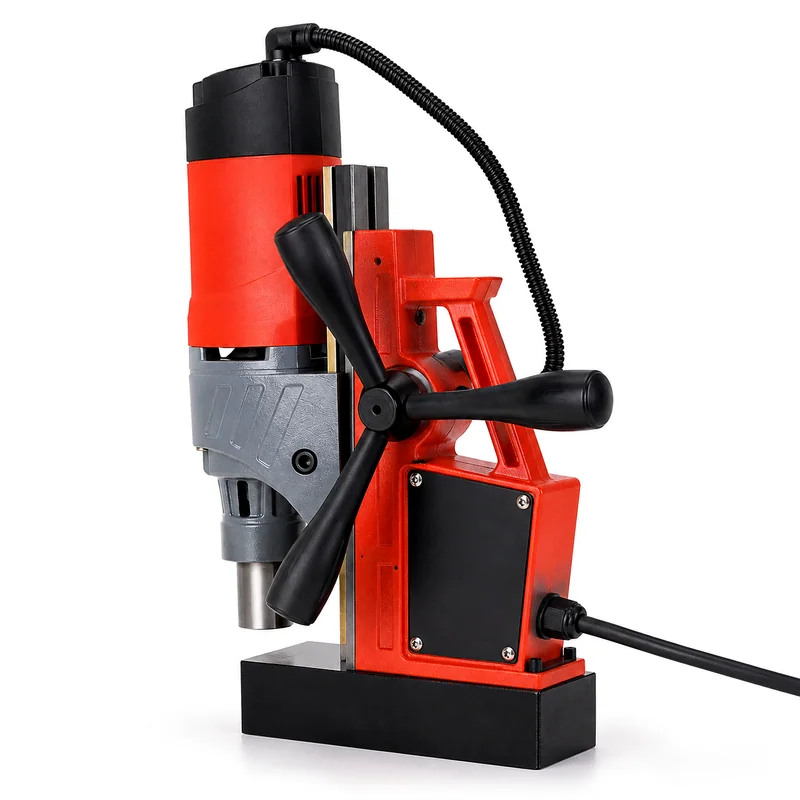

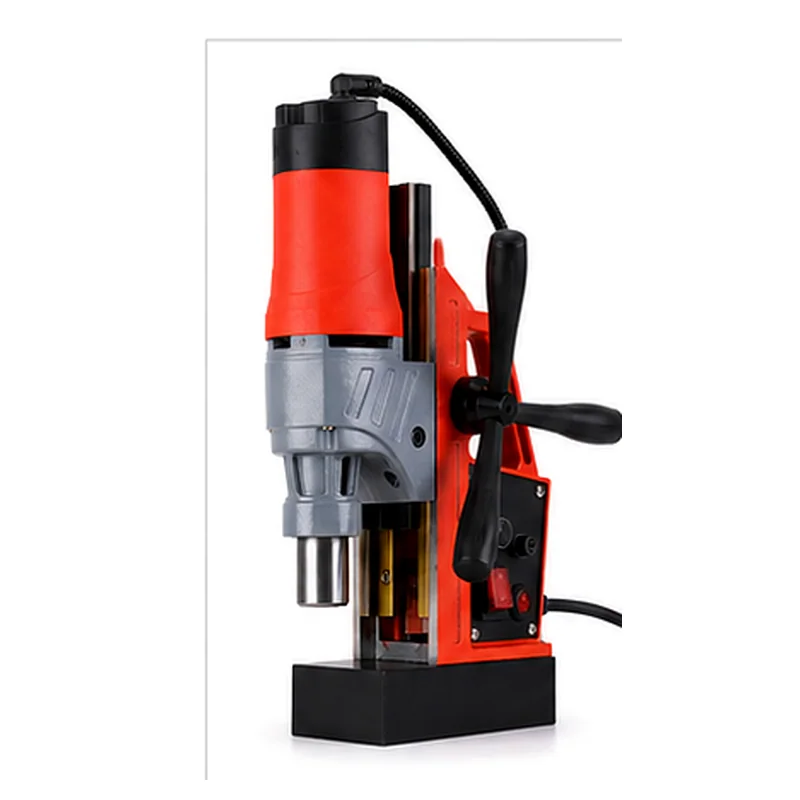

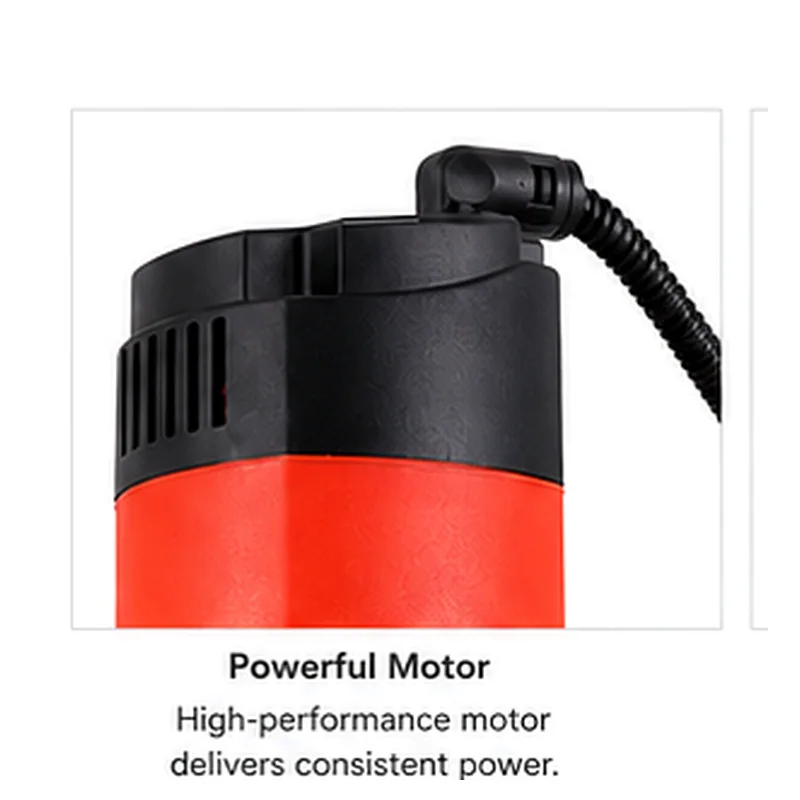

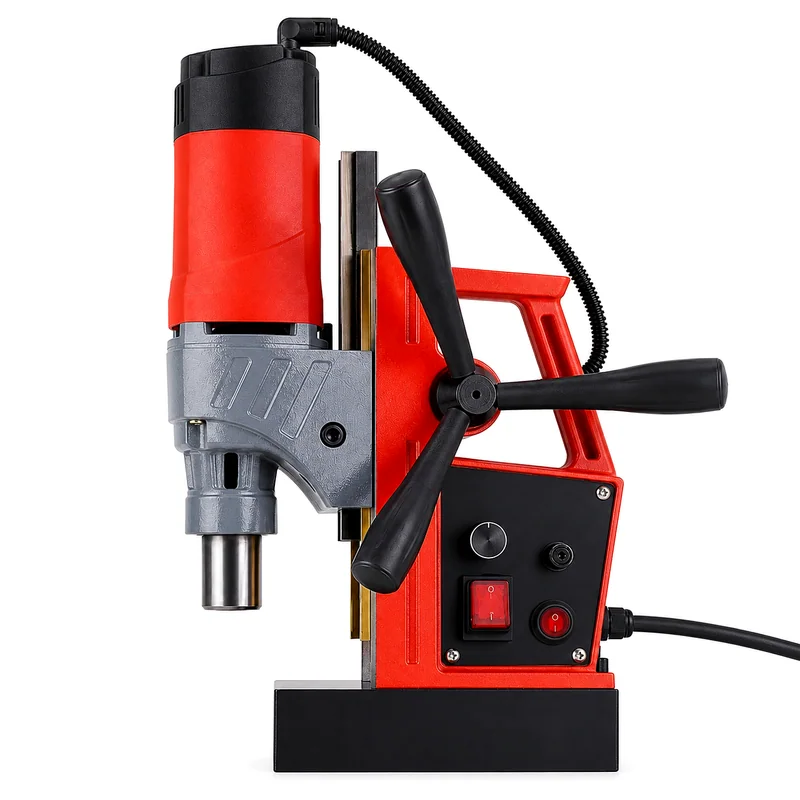

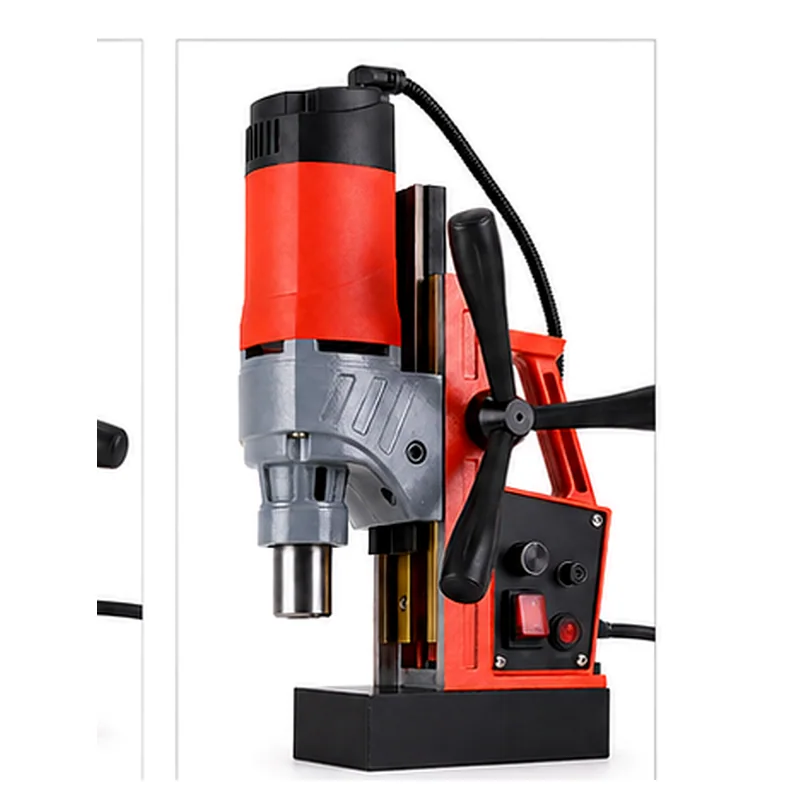

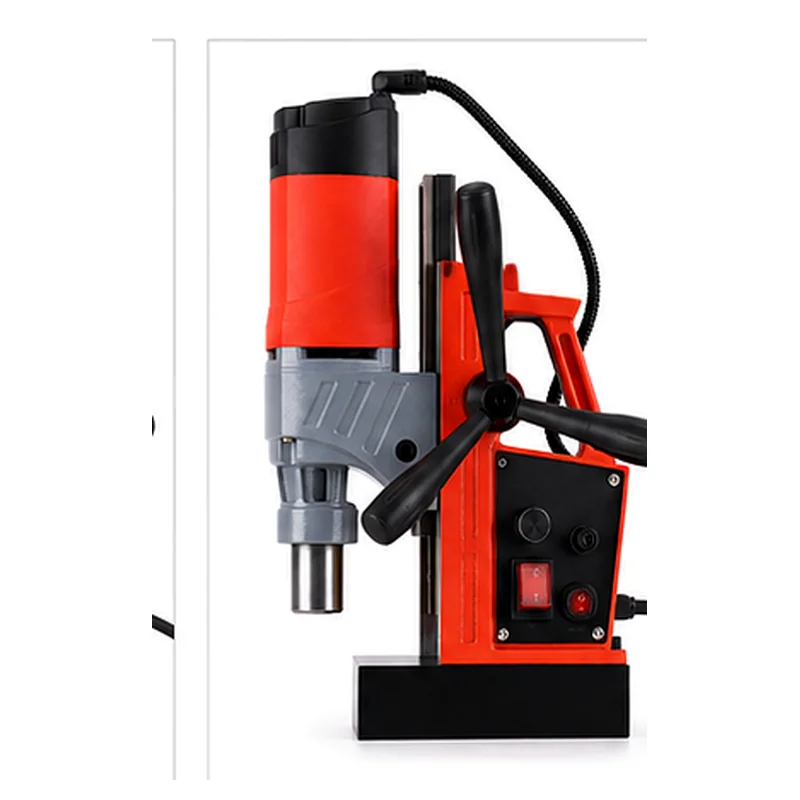

Visible components include the motor housing, gear housing, spindle/arbor interface, three-spoke feed handles, guide rail, carrying handle, control panel, electromagnetic base and power cable.
APPLICATIONS
Where buyers can evaluate the 2016E
Steel plate fabrication
For portable drilling on suitable flat ferrous plate within the verified diameter and stroke.
Structural steel work
For beams, frames and angle steel where the base can achieve safe, complete magnetic contact.
Machinery and maintenance
For workshop or field hole-making tasks after access, tool and mounting conditions are confirmed.
INSTALLATION & SAFETY
Install and Change Tools Safely
Follow the correct installation sequence and confirm tool compatibility before operating the magnetic drill.

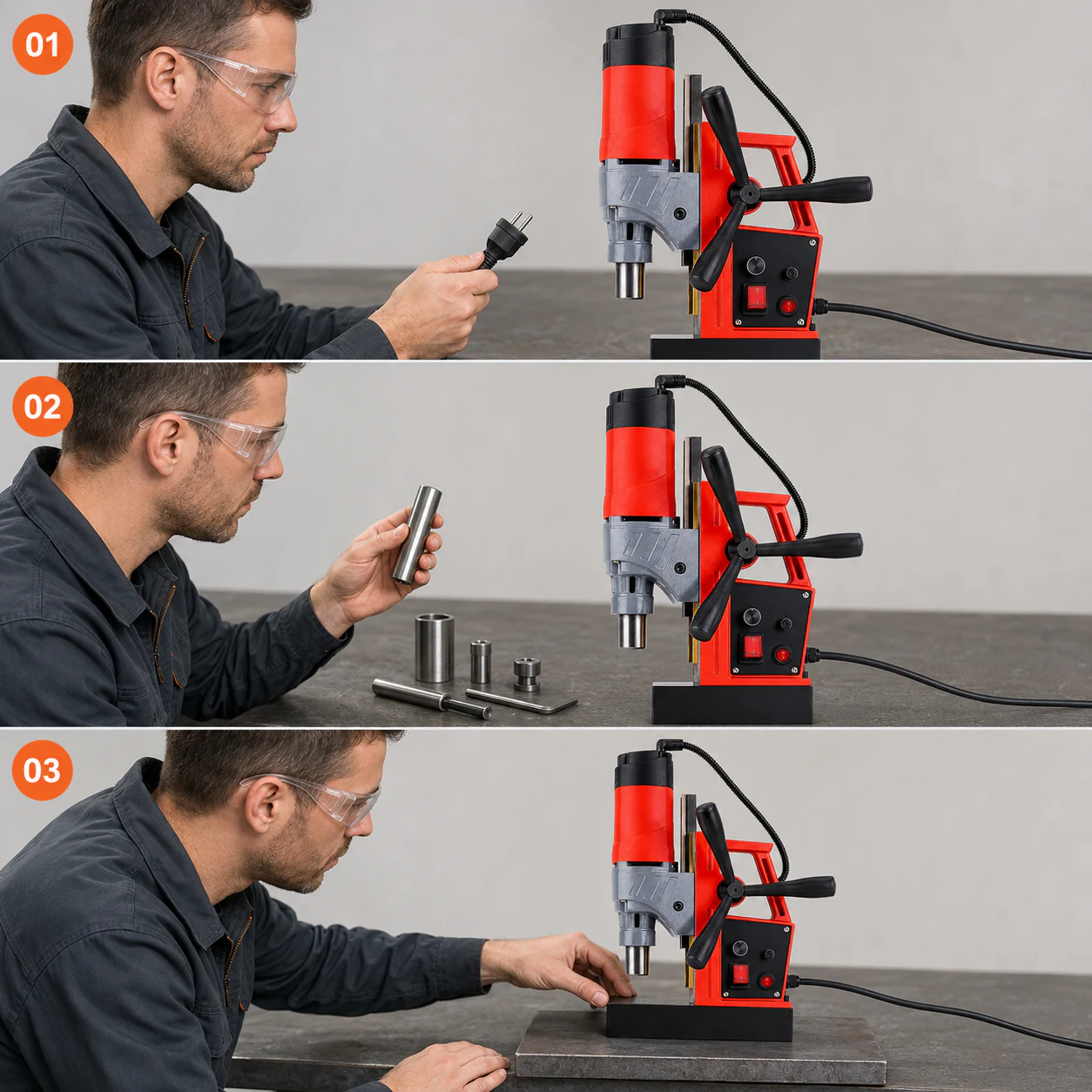

1
Isolate the Power
Disconnect the machine before fitting or removing any tool.
2
Verify the Tool Interface
Confirm that the cutter, arbor and removal tool match the selected configuration.
3
Check Before Operation
Ensure every component is securely seated before starting the machine.
Essential Safety Checks
Wear eye and hand protection
Keep clear of rotating parts
Check magnetic contact before drilling
Stop if vibration or noise occurs
Always follow the supplied operating manual for the exact tool interface and installation method.

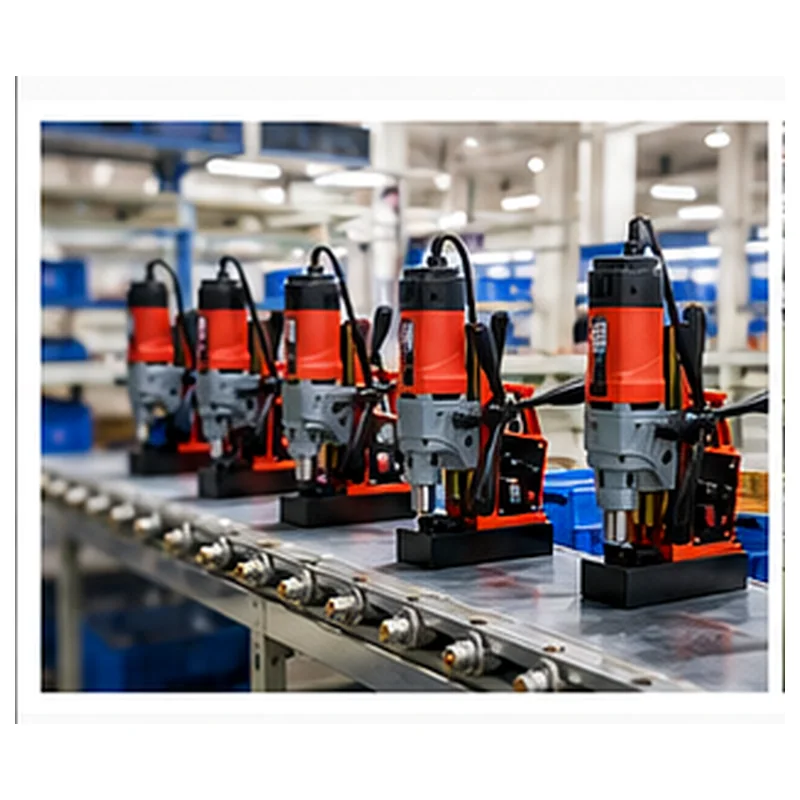

MANUFACTURING & OEM
Configure the supply program for your market
Market-specific voltage and machine configuration can be reviewed. OEM and ODM support is available for applicable order requirements, but logo method, color, label, manual, plug, packaging, quantity, timing and cost must be confirmed for the actual project.
Each magnetic drill is shipped fully assembled and securely protected to reduce movement, surface damage and handling risks during international transportation.
01
Shipped Fully Assembled
The complete machine is packed without disassembly, reducing setup work and avoiding missing or incorrectly installed parts.
02
Protected and Securely Fixed
Protective wrapping film and strong packing straps help prevent scratches, dust exposure and unwanted movement during transit.
03
Reinforced Plywood Case
Each machine is packed in a sturdy plywood case for safer handling, stacking and long-distance international transportation.
Custom carton marks, manuals and packaging details can be provided according to confirmed order requirements.
B2B BUYER REVIEWS
Feedback matched to magnetic drilling machines
Stable Batch Quality for Distribution
Anna Kowalska · Procurement Manager
For our business as a procurement manager, the supplier has to support both the product and the commercial process. We paid close attention to magnetic base holding, spindle alignment, control feel, and overall assembly. Aximet Tools kept machine finish, operating controls, and agreed configuration consistent across the production order, so the batch felt aligned with what we approved during sourcing. It gave our team more confidence to move from evaluation toward a broader purchasing plan.
Private Label Support That Saves Time
Brian Thompson · Tool Wholesaler
For our business as a tool wholesaler, the supplier has to support both the product and the commercial process. We were not looking for a generic product only. Aximet Tools was practical when discussing branding, model presentation, packing, manuals, and market-specific configuration, and the customization process stayed organized even with B2B order details to manage. For a distributor, that kind of supplier discipline is a meaningful reason to continue the cooperation.
Clear Technical Communication Before Production
Fiona Campbell · Hardware Distributor
From our perspective as a hardware distributor, consistency and supplier discipline matter as much as the product itself. Before approval, we checked machine configuration, power requirements, spindle options, working capacity, and accessories. Aximet Tools answered the specification questions clearly and confirmed the important details before production, which reduces the risk of misunderstandings on a commercial order. It is the kind of cooperation that helps a buyer build a category instead of constantly changing suppliers.
FAQ
Questions About the 2016E Magnetic Drill
Review the key details buyers commonly confirm before requesting samples, OEM options or a bulk quotation.
The workbook identifies steel plate, structures, angle steel, machinery manufacturing, bridges, railways and general metalworking. Suitability depends on the actual mounting surface and cutting-tool combination.
Yes. The supplied final workbook verifies 16 mm. It does not confirm the cutter type, spindle or arbor, so those details must be reviewed before quotation.
The standard source value is 220 V. Market-specific voltage and configuration can be reviewed against local electrical standards and customer requirements.
The source does not verify a spindle or arbor type. Send the required diameter, depth and tool information so AXIMET can confirm compatibility.
OEM, ODM and non-standard configuration support are stated in the source. Each requested item is confirmed for feasibility, quantity and order scope.
Disconnect power before installing or removing tools, wear appropriate protection and follow the machine and tool instructions. Stop if vibration or unusual noise occurs.
Send quantity, destination, voltage, plug, application, hole diameter and depth, workpiece details, packaging and customization requirements.
