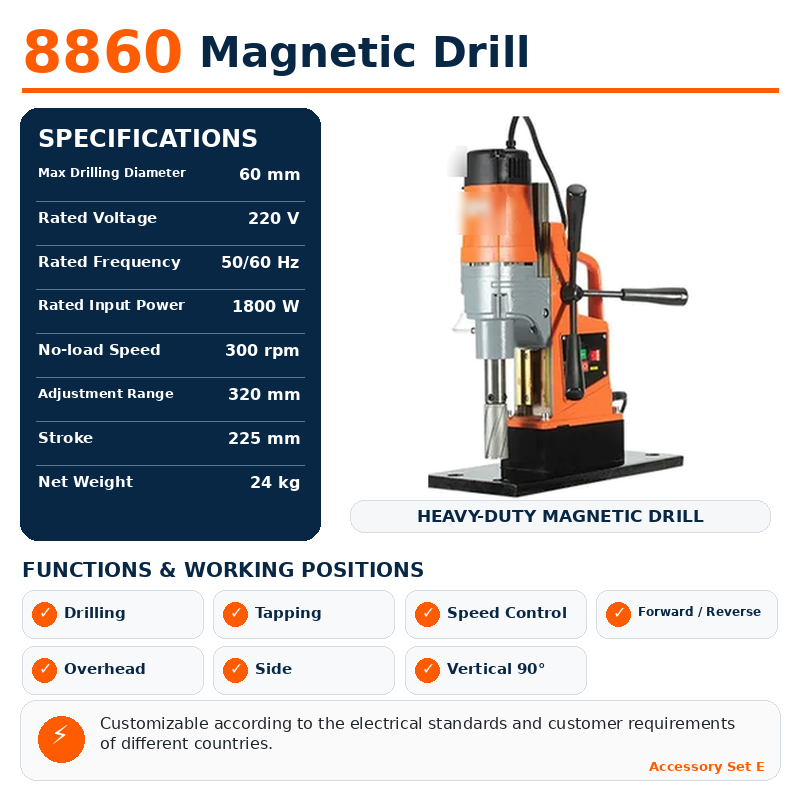

The AX8860 is a 60 mm fixed speed magnetic drilling machine with a confirmed maximum 60 mm annular cutter drilling diameter, 1800 W rated power and 300 r/min no-load speed with a 225 mm stroke. It is positioned for distributors and industrial buyers sourcing equipment for steel plate, beam and workshop hole making.
Model: AX8860 · OEM options available subject to confirmed order configuration.
PRODUCT OVERVIEW
A 60 mm Fixed-Speed Platform for Larger Hole Requirements
AX8860 is positioned for buyers moving beyond 35 mm and 40 mm general-purpose ranges. The current workbook confirms 60 mm annular capacity, 1800 W rated power, 300 r/min no-load speed, 225 mm stroke and 24 kg net weight.
A formal catalog records conflicting speed and weight values, so this preview keeps the current workbook version and identifies the conflict in the review record.
The source also contains an unlabeled 320 mm value; it is omitted until its technical meaning is confirmed.
Need a 60 mm fixed speed magnetic drill with a confirmed 60 mm annular cutter capacity?
PRODUCT HIGHLIGHTS
Four Confirmed Reasons to Consider AX8860
01
60 mm Annular Capacity
The size designation refers to the confirmed maximum annular cutter drilling diameter, not the physical dimensions of the machine.
02
1800 W Rated Power
The confirmed rated input provides a controlled basis for comparing this model with other AXIMET magnetic drills.
03
Defined Fixed Speed
The model uses a fixed no-load speed, confirmed at 300 r/min.
04
Controlled Source Boundary
The current source set does not provide a reliable magnetic holding-force value, so no force claim is made for this model.
PRODUCT & SUPPLY EVIDENCE
Matched by Model, Function and Industrial Use
Exact-model images are identified separately from product-system, application and factory evidence. Supporting images explain the supply system and are not presented as additional views of AX8860.
Specifications may vary by voltage, market and confirmed order configuration. Contact AXIMET for the applicable model data.
PERFORMANCE AND VALUE
What This Configuration Is Designed to Do
The AX8860 is selected by annular cutter diameter, cutting depth, workpiece material, mounting condition and required control functions.
Its 60 mm fixed speed position is based on confirmed capacity, power and speed, together with the published stroke rather than an unsupported performance label.
Before ordering, confirm cutter interface, workpiece details, voltage, plug and accessory package with AXIMET.
For a broader sourcing comparison, review our magnetic drilling machines before confirming dimensions, interfaces and pack formats.
Before finalizing a specification, use our magnetic drill selection guide to compare capacity, application and operating requirements.
APPLICATIONS
Application-Matched Selection
Steel Fabrication
Supports hole making in steel plates and structural components within the confirmed 60 mm annular cutter capacity.
Key incoming components are checked against the applicable production specification before assembly.
02
Motor and Gearbox Check
Motor operation and gearbox function are checked during assembly.
03
Electrical Safety Inspection
Electrical connections, switches and protective functions are inspected before release.
04
Magnetic or Mounting Check
The applicable magnetic base or pipe-mounting arrangement is checked under the defined factory procedure.
05
No-load Running Test
Running direction, speed response and abnormal noise are checked without cutting load.
06
Final Assembly Inspection
Assembly condition, appearance, accessories and packaging are checked before dispatch preparation.
PACKAGING & SHIPPING
Protected from Our Factory to Your Warehouse
Each magnetic drill is shipped fully assembled and securely protected to reduce movement, surface damage and handling risks during international transportation.
01
Shipped Fully Assembled
The complete machine is packed without disassembly, reducing setup work and avoiding missing or incorrectly installed parts.
02
Protected and Securely Fixed
Protective wrapping film and strong packing straps help prevent scratches, dust exposure and unwanted movement during transit.
03
Reinforced Plywood Case
Each machine is packed in a sturdy plywood case for safer handling, stacking and long-distance international transportation.
Custom carton marks, manuals and packaging details can be provided according to confirmed order requirements.
FREQUENTLY ASKED QUESTIONS
Questions About the AX8860 60mm Magnetic Drill
What does the 60 mm capacity of AX8860 mean?+
It means the model has a confirmed maximum 60 mm annular cutter drilling diameter. The value describes hole-making capacity, not machine dimensions. Cutting depth, cutter interface and workpiece conditions must be confirmed.
Is AX8860 a variable-speed model?+
No. The confirmed no-load speed is 300 r/min. Select the cutter and application to suit this fixed-speed configuration.
Does AX8860 include reverse operation?+
Reverse operation is not confirmed for this model and is therefore not claimed on this page.
Which annular cutters are compatible?+
HSS or TCT annular cutters can be reviewed according to the required diameter, cutting depth and spindle interface. AXIMET confirms the machine-and-cutter combination before quotation.
Can voltage, plug and OEM packaging be customized?+
Voltage, plug, product color, logo, nameplate, manual language, labels and packaging can be discussed. Final scope, quantity, timing and cost are confirmed with the order.
