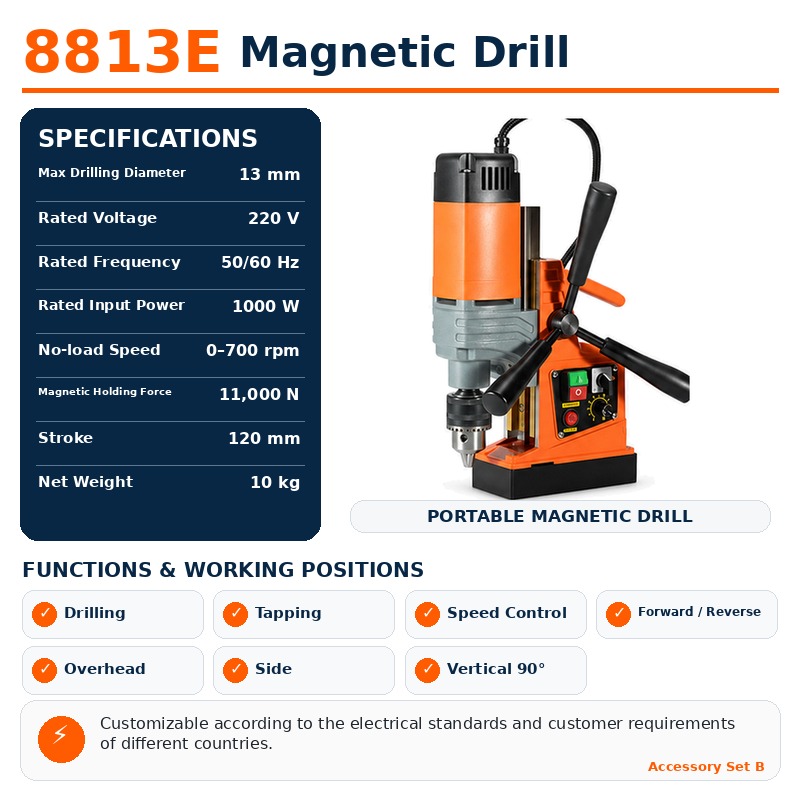

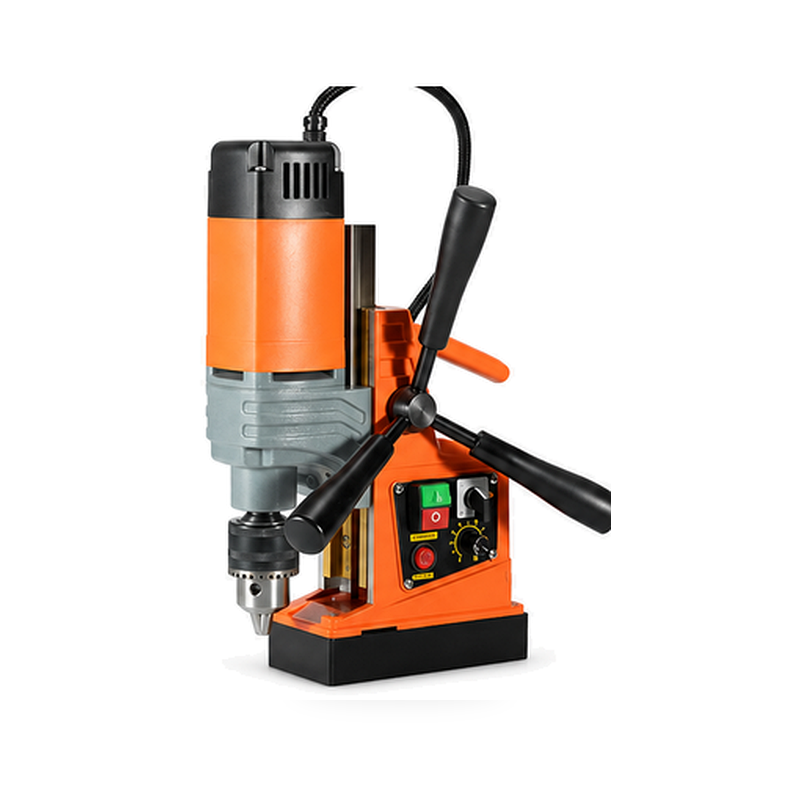

The AX8813E combines a compact 100 × 270 × 350 mm machine envelope with a 1000 W motor, variable speed and 11,000 N magnetic holding force. It is positioned for distributors and industrial buyers who need a portable magnetic drill for steel work where machine size and operating capacity must be balanced.
Model: AX8813E · OEM options available subject to confirmed order configuration.
PRODUCT OVERVIEW
Compact Dimensions for Restricted Working Areas
AX8813E is intended for buyers who need a smaller machine envelope without giving up adjustable speed. The model suits portable service ranges where access, handling and clearly limited drilling capacity matter.
Its compact body supports work around assembled steel structures where a larger machine may restrict operator access.
Share the intended tool, hole depth and available clearance so the complete setup can be reviewed before ordering.
Need a compact magnetic drill for restricted steel fabrication spaces?
PRODUCT HIGHLIGHTS
Four Confirmed Reasons to Consider AX8813E
01
Compact Machine Envelope
Confirmed 100 × 270 × 350 mm dimensions support product selection where available working space is limited.
02
Variable Speed Control
A 0–700 r/min range gives the operator a defined way to match speed to the selected tool and task.
03
Stable Magnetic Base
The specified 11,000 N magnetic holding force supports positioning on a suitable clean ferrous surface.
04
Balanced Site Format
A confirmed 10 kg net weight, 120 mm stroke and compact body balance portability with controlled drilling capability.
PRODUCT & SUPPLY EVIDENCE
Matched by Model, Function and Industrial Use
Exact-model images are identified separately from product-system, application and factory evidence. Supporting images explain the supply system and are not presented as additional views of AX8813E.
Key incoming components are checked against the applicable production specification before assembly.
02
Motor and Gearbox Check
Motor operation and gearbox function are checked during the assembly workflow.
03
Electrical Safety Inspection
Electrical connections, switches and protective functions are inspected before final release.
04
Magnetic Holding Test
The magnetic base is checked on a suitable ferrous test surface under the defined factory procedure.
05
No-load Running Test
Running direction, speed response and abnormal noise are checked without cutting load.
06
Final Assembly Inspection
Assembly condition, appearance, accessories and packaging are checked before dispatch preparation.
PACKAGING & SHIPPING
Protected from Our Factory to Your Warehouse
Each magnetic drill is shipped fully assembled and securely protected to reduce movement, surface damage and handling risks during international transportation.
01
Shipped Fully Assembled
The complete machine is packed without disassembly, reducing setup work and avoiding missing or incorrectly installed parts.
02
Protected and Securely Fixed
Protective wrapping film and strong packing straps help prevent scratches, dust exposure and unwanted movement during transit.
03
Reinforced Plywood Case
Each machine is packed in a sturdy plywood case for safer handling, stacking and long-distance international transportation.

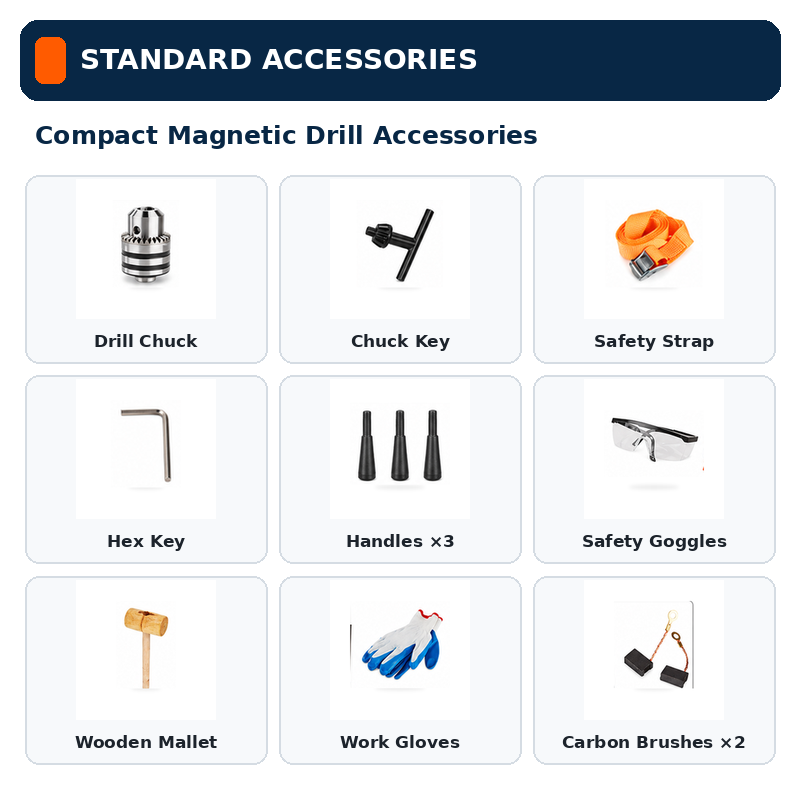

Custom carton marks, manuals and packaging details can be provided according to confirmed order requirements.
FREQUENTLY ASKED QUESTIONS
Questions About the AX8813E Compact Magnetic Drill
What is this compact magnetic drill used for?+
It is intended for portable hole making on suitable steel workpieces where the machine envelope matters. Selection should be based on the confirmed 13 mm maximum drilling diameter, 120 mm stroke and available working space.
How much working space does this model require?+
The confirmed machine dimensions are 100 × 270 × 350 mm. Buyers should also allow space for the feed handles, cutter, coolant arrangement and safe access around the workpiece.
Can it be used for on-site steel maintenance?+
Its compact format supports on-site metalworking, provided the workpiece offers a suitable clean ferrous mounting surface and the required hole remains within the confirmed capacity.
Which cutting tools fit this machine?+
The cutting tool and interface must be confirmed against the required diameter, depth and spindle configuration. AXIMET can review the machine-and-cutter combination before quotation.
Can voltage and plug be customized?+
Voltage and plug configurations can be customized according to the electrical standards and customer requirements of different countries. The final configuration is confirmed with the order.
