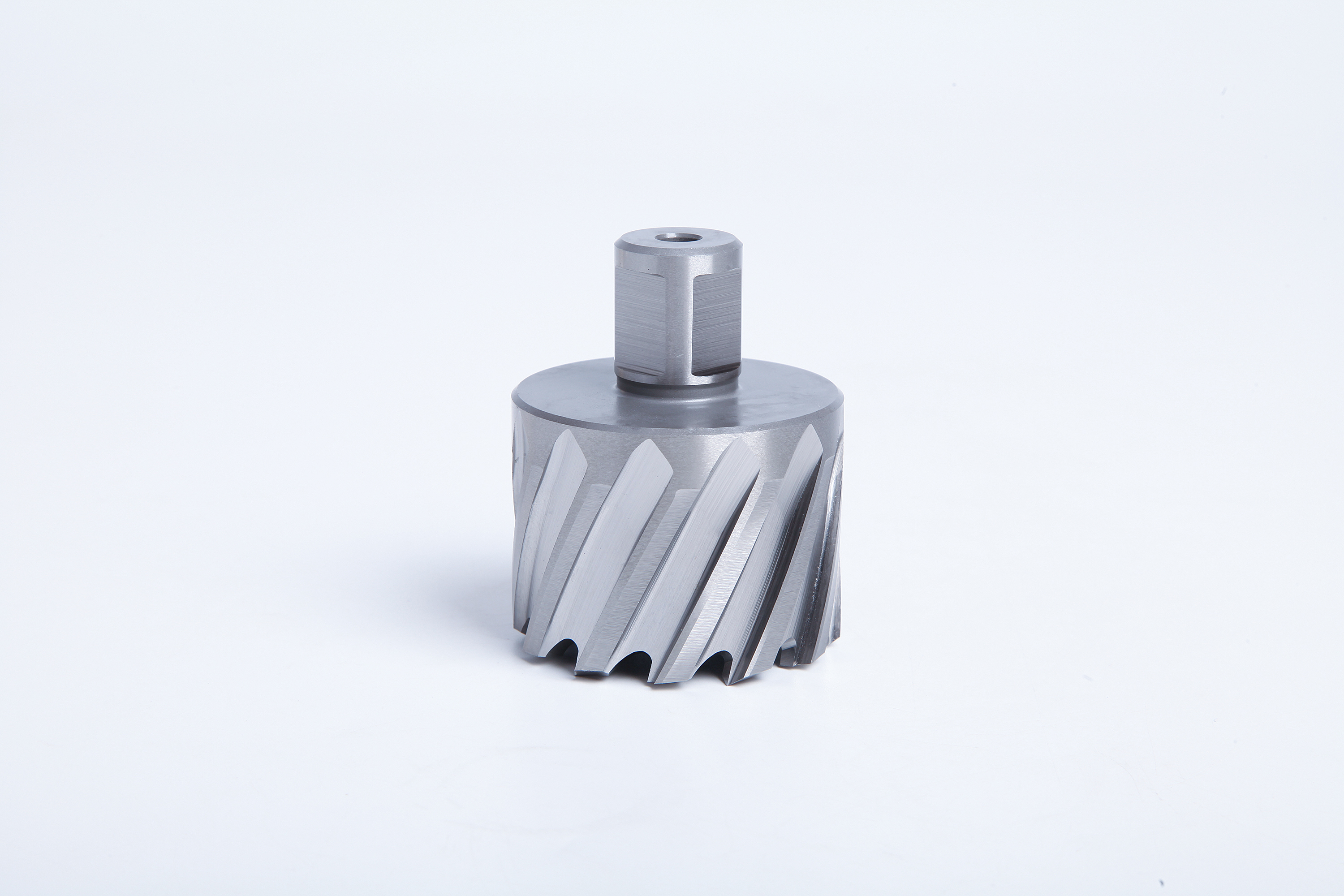

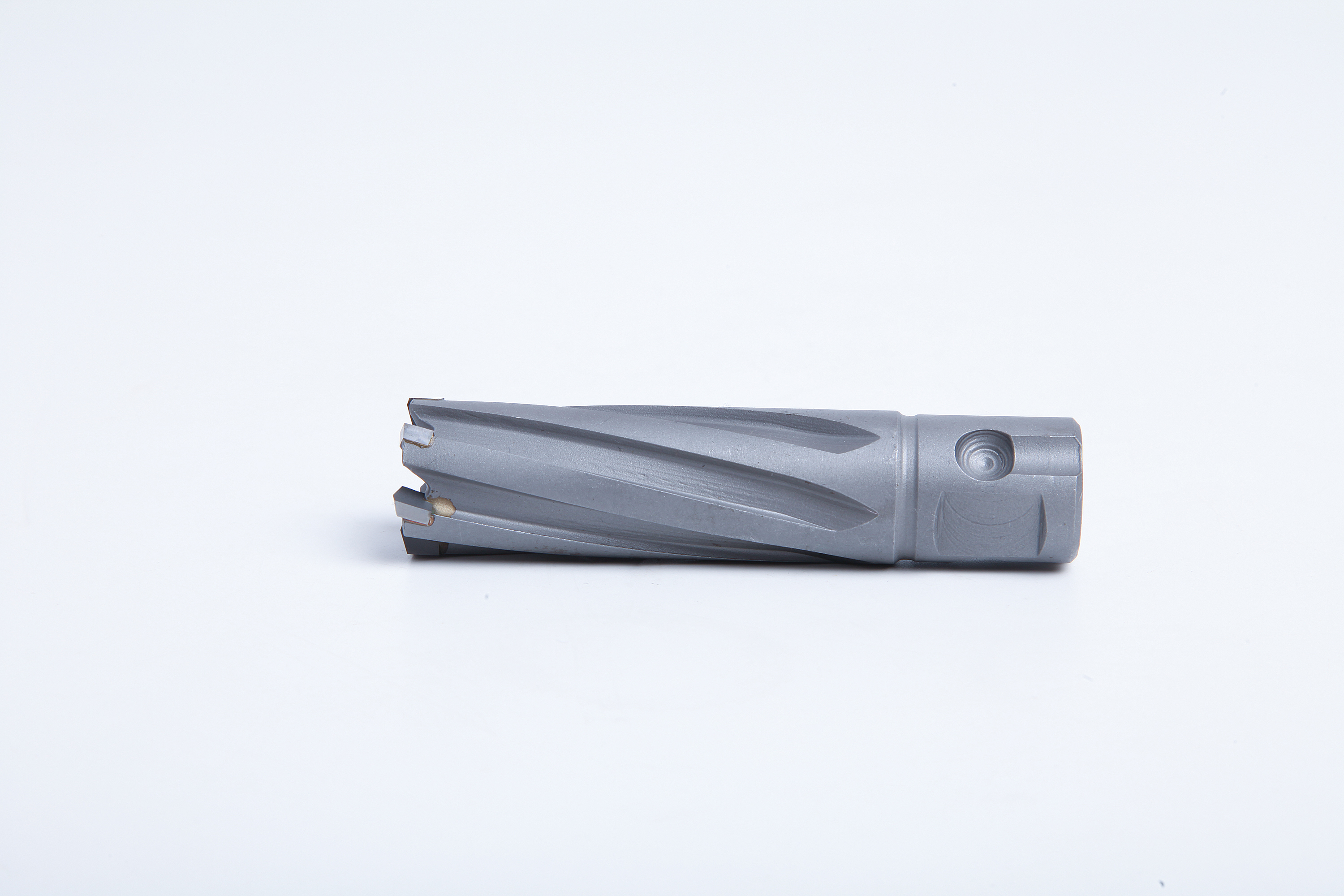

The pilot pin is a moving component inside the annular cutter. It helps locate the center mark, can control coolant delivery in compatible holders and pushes out the core when the cut finishes.
Use the comparison as a controlled buying record. It should identify the application, the exact tool variants, the evidence reviewed and every field still requiring supplier confirmation.
Start with the hole and assembly requirement
Start with the hole center, cutter diameter and cutting depth. The pin tip locates against the center mark while the cutter teeth begin the annular cut.
Compare cutting structure and operating behavior

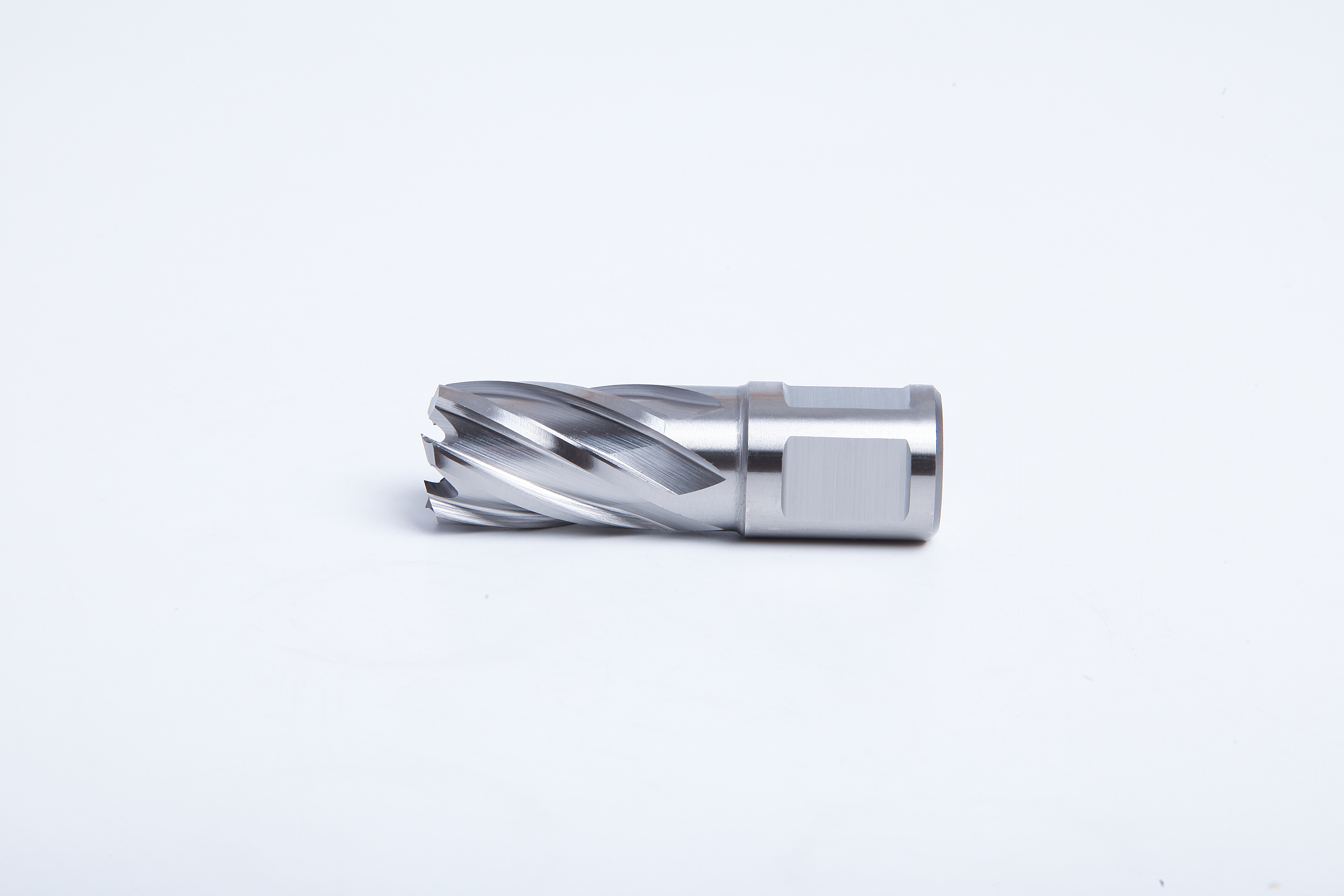

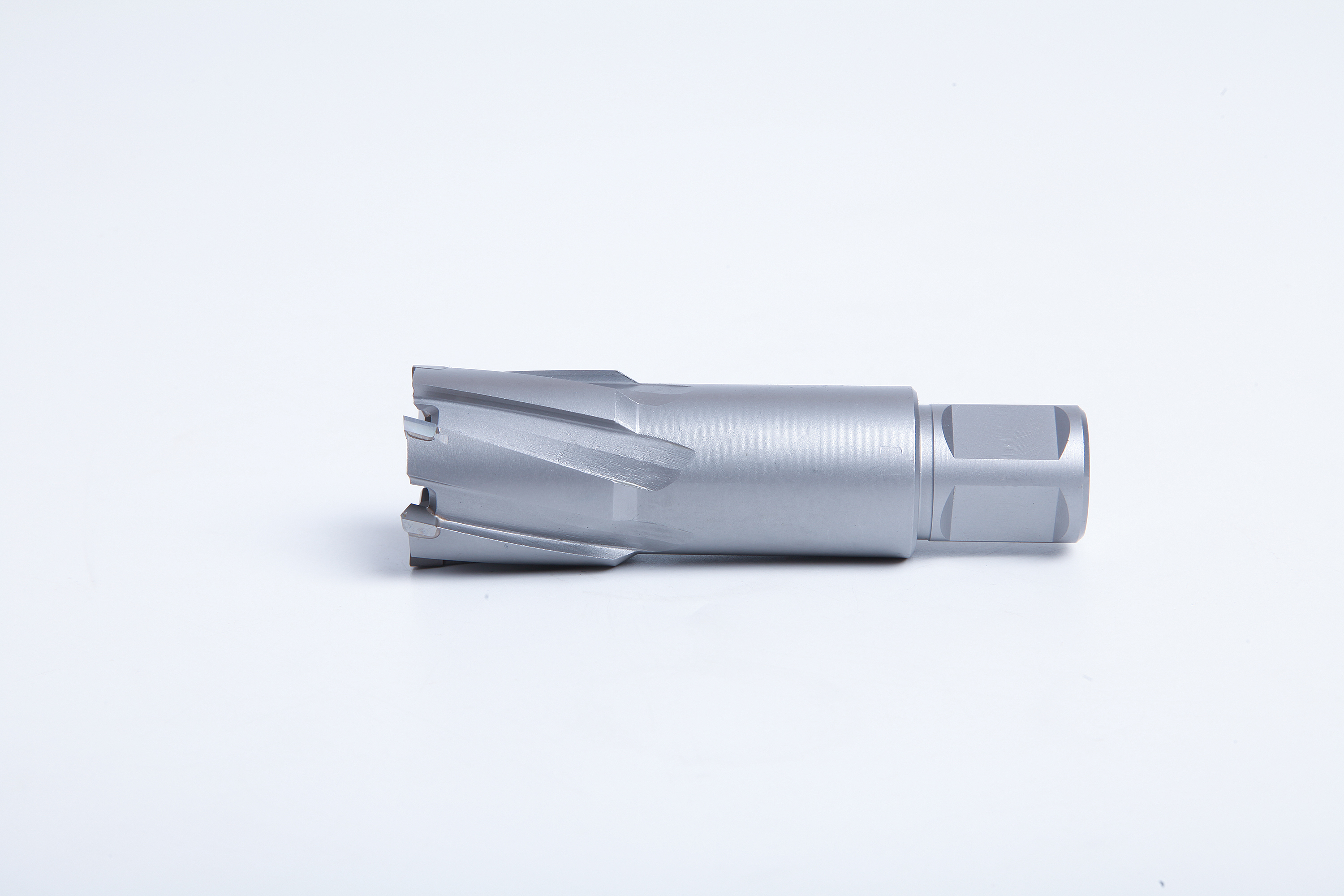

The cutter teeth remove the ring; the pin remains inside the hollow cutter and moves relative to it. Treating the pin as a twist drill leads to incorrect setup expectations.
Confirm machine, interface and workholding
Confirm the holder's pilot-pin bore and coolant mechanism. A pin that fits loosely or cannot travel freely may not perform location or ejection correctly.
Specify dimensions and controlled product fields
Match pin length and diameter to the exact cutter series and depth. Similar-looking pins may have different steps, shoulders or travel.
| Requirement | Tool A | Tool B |
|---|---|---|
| Application | Confirm | Confirm |
| Machine/interface | Record | Record |
| Dimensions/depth | Approve | Approve |
| Sample/revision | Trace | Trace |
Evaluate samples with a stated method
Before cutting, check free movement. After a test hole, confirm the core ejects without binding and inspect the pin for bending or abnormal wear.
Build a clear distributor assortment
Stock pins by cutter family, diameter band and depth, with a clear cross-reference rather than one undifferentiated accessory bin.
Release quotations and repeat orders
List the cutter and matching pin together on quotations and packing records so replacements do not break the approved combination.
Annular Cutters·Drill Bit Accessories·Magnetic Drills·Confirm a Cutter System
Frequently Asked Questions
Does the pilot pin drill a pilot hole?
Normally no. It locates the center and moves inside the annular cutter while the teeth cut the ring.
Why does the core stay inside the cutter?
A mismatched, damaged or sticking pin, incorrect setup or cutting debris can interfere with ejection.
Can one pilot pin fit every annular cutter?
No. Diameter family, cutting depth, holder and cutter design determine the correct pin.
Does the pin deliver coolant?
In compatible systems it can open or control internal coolant flow; confirm the holder and pin arrangement.
When should a pilot pin be replaced?
Replace a bent, damaged or abnormally worn pin and investigate the cause before continuing.
Conclusion
The pilot pin is a locating, coolant-control and core-ejection component—not a substitute for a conventional pilot drill. Correct matching and free travel are essential to the cutter system.
