Heavy Duty Corner Radius End Mills

Choose a six-flute corner radius cutter by the geometry and dimensions your application requires. AXIMET’s NRD catalog series lists individual models for buyers who need a clear diameter, radius and shank specification for each order line.

Six-flute NRD series with a radiused cutting corner
Multiple diameter and corner-radius combinations
Individual model records for ordering and replacement

Request a Quote →Compare Specifications ↓

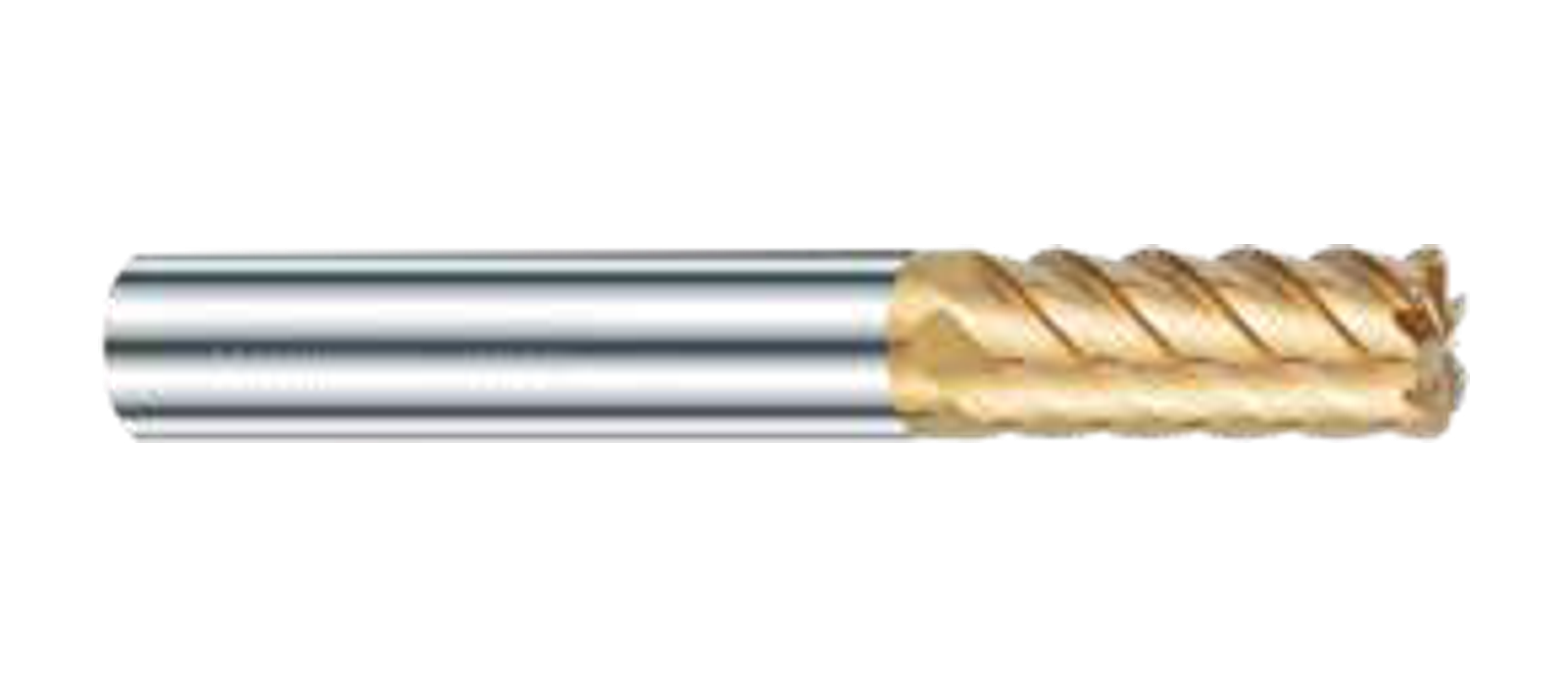

NRD Heavy Duty Corner Radius End Mills catalog product view

NRD Heavy Duty Corner Radius End Mills product introduction view

Specify the Cutter, Not Just the Diameter

A corner radius end mill combines a substantially flat cutting end with radiused outer corners. The radius must suit the feature on the component drawing; cutter diameter, cutting length and shank diameter must also match the operation and toolholder.

Match the corner radius to the floor-to-wall transition.
Compare flute length with the required axial contact.
Check holder fit and quantities for each selected model.

NRD Series and Available Models

The NRD series contains 18 catalog model records, all listed with six flutes. Each row identifies cutting diameter, corner radius, flute length, overall length and shank diameter. Compare the complete row rather than treating every diameter and radius as an available combination.

For example, NRD0605 and NRD0605L list the same cutter diameter and corner radius with different overall lengths. When a buyer requires a specific projection or machine clearance, that length must remain attached to the model number.

Select by the Feature and Setup

Corner radius. Check the required part geometry and any machining allowance. A radius at the cutter's outside corner influences the floor-to-wall transition; it is not the same tool form as a fully rounded ball nose.

Cutting length. Compare the listed flute length with the required wall height and axial engagement. A longer flute is not automatically the right choice if the setup does not require it.

Shank and overall length. Match the shank to the holder and check clearance around the workpiece. Keep the tool's overall length separate from its cutting length.

Flute count. The listed NRD models use six flutes. Consider the workpiece, engagement, chip evacuation and machine setup when deciding whether that geometry suits the application.

Compare Similar Cutter Profiles

A square end mill, a ball nose end mill and a corner radius end mill can share a diameter while producing different feature geometry. Compare the square end mill and corner radius end mill ranges against the part drawing before substituting a tool. Select the NRD series by its listed geometry and the application's actual conditions. A roughing cutter is another comparison when the order concerns stock removal: its cutting-edge geometry and suitability depend on the specific tool. Compare the operation, workpiece and tool drawings rather than assuming that every six-flute or radiused cutter is a roughing cutter.

Order and Inspection Details

To request a quotation, provide model codes and quantity per item, or send the required diameter, radius, lengths and shank size with a drawing. Include the workpiece, operation, holder, delivery destination and any sample requirements.

For sample approval, identify the dimensions, edge condition and drawing revision that matter to the order. Include any requested labeling, packaging or inspection documentation so it can be reviewed with the selected items.

Catalog Series, Product Views and Dimension Drawings

NRD Series · R015

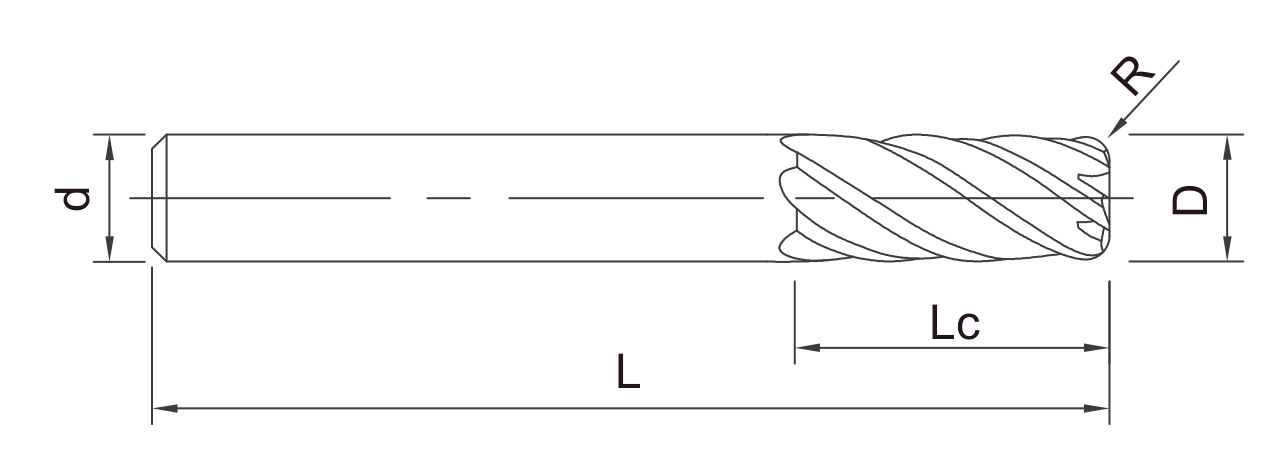

NRD Heavy Duty Corner Radius End Mills catalog dimension drawing — NRD dimension drawing · R015

Catalog Model Specifications

Review each NRD model by diameter, corner radius and shank size before preparing your order list.

NRD · R015 · 6 FLUTES

Type No.	Diameter (D, mm)	Corner R (R, mm)	Flute length (Lc, mm)	Overall length (L, mm)	Shank Dia (d, mm)	Flutes (F)
NRD0605	D6	R0.5	15	L50	6	6
NRD0605L	D6	R0.5	15	L60	6	6
NRD0610	D6	R1	15	L50	6	6
NRD0610L	D6	R1	15	L60	6	6
NRD0805	D8	R0.5	20	L60	8	6
NRD0810	D8	R1	20	L60	8	6
NRD1005	D10	R0.5	25	L75	10	6
NRD1010	D10	R1	25	L75	10	6
NRD1020	D10	R2	25	L75	10	6
NRD1205	D12	R0.5	30	L75	12	6
NRD1210	D12	R1	30	L75	12	6
NRD1220	D12	R2	30	L75	12	6
NRD1610	D16	R1	40	L100	16	6
NRD1620	D16	R2	40	L100	16	6
NRD1630	D16	R3	40	L100	16	6
NRD2010	D20	R1	45	L100	20	6
NRD2020	D20	R2	45	L100	20	6
NRD2030	D20	R3	45	L100	20	6

Production Equipment Reference

The photographs below show production equipment and workshop operations used as manufacturing-reference material for carbide tooling enquiries. Process requirements are confirmed for the selected model and order.

CNC tool grinding equipment on the workshop floor — reference image for Heavy Duty Corner Radius End Mills — **CNC Tool Grinding Cell**
Enclosed CNC tool-grinding equipment shown on the workshop floor.

A multi-tank cleaning line in the tool production workshop — reference image for Heavy Duty Corner Radius End Mills — **Ultrasonic Cleaning Line**
Multi-tank cleaning equipment shown in the workshop.

A row of enclosed CNC grinding machines — reference image for Heavy Duty Corner Radius End Mills — **CNC Grinding Equipment**
A row of enclosed CNC grinding machines viewed from the workshop aisle.

Enclosed tool-grinding equipment with an operator area alongside — reference image for Heavy Duty Corner Radius End Mills — **Tool Grinding Machine**
Enclosed tool-grinding equipment with an adjacent operator area.

A tool-grinding machine with a robotic handling enclosure — reference image for Heavy Duty Corner Radius End Mills — **Automated Tool Grinding Cell**
Tool-grinding equipment with a robotic handling enclosure.

Tool-grinding machines with enclosed robotic handling equipment — reference image for Heavy Duty Corner Radius End Mills — **Automated Grinding Equipment**
Enclosed grinding and robotic-handling equipment shown from another workshop position.

Enclosed CNC grinding equipment arranged along the workshop aisle — reference image for Heavy Duty Corner Radius End Mills — **CNC Grinding Machines**
CNC grinding machines arranged along a workshop aisle.

An enclosed tool-coating unit in the workshop — reference image for Heavy Duty Corner Radius End Mills — **Tool Coating Equipment**
Enclosed tool-coating equipment shown in the production area.

Vacuum-chamber equipment in the coating area — reference image for Heavy Duty Corner Radius End Mills — **Coating Process Equipment**
Vacuum-chamber equipment shown in the coating area.

An operator working at an enclosed laser-marking station — reference image for Heavy Duty Corner Radius End Mills — **Laser Marking Operation**
An operator works at an enclosed laser-marking station.

Machine workstations in the tool-finishing area — reference image for Heavy Duty Corner Radius End Mills — **Tool Finishing Workstations**
Machine workstations shown in a tool-finishing area.

An operator beside a tool honing and polishing machine — reference image for Heavy Duty Corner Radius End Mills — **Cutting Edge Preparation**
An operator stands beside tool honing and polishing equipment.

An operator beside enclosed tool honing equipment — reference image for Heavy Duty Corner Radius End Mills — **Edge Honing and Polishing**
An operator stands beside enclosed edge-honing and polishing equipment.

Enclosed wet-blasting equipment in the surface-finishing area — reference image for Heavy Duty Corner Radius End Mills — **Wet Blasting Equipment**
Enclosed wet-blasting equipment shown in the surface-finishing area.

An alternate image of enclosed wet-blasting equipment — reference image for Heavy Duty Corner Radius End Mills — **Wet Blasting Equipment — Alternate**
A second workshop view of enclosed wet-blasting equipment.

Inspection and Measurement Equipment Reference

The photographs below show inspection and measurement equipment used when discussing drawing dimensions and order requirements. The inspection scope is confirmed for the selected order.

Operators working at optical inspection and tool-measuring stations — reference image for Heavy Duty Corner Radius End Mills — **Tool Inspection Room**
Operators work at optical inspection stations.

Cutting Tool Profile Measurement

An operator positions a cutting tool at a profile-measuring station.

Optical measuring workstations in the inspection area — reference image for Heavy Duty Corner Radius End Mills — **Measurement Workstations**
Optical measurement workstations shown in the inspection area.

A balancing instrument with a protective enclosure — reference image for Heavy Duty Corner Radius End Mills — **Balancing Instrument**
A balancing instrument with a protective enclosure.

A tool presetter with an optical measuring arm and display — reference image for Heavy Duty Corner Radius End Mills — **Tool Presetting and Dimensional Review**
A tool presetting station with an optical measuring arm and display.

An optical tool presetter and measurement display — reference image for Heavy Duty Corner Radius End Mills — **Optical Tool Presetter**
An optical tool presetter with a measurement display.

Operators inspecting tools at camera-based inspection workstations — reference image for Heavy Duty Corner Radius End Mills — **Optical Inspection**
Operators inspect tools at camera-based optical workstations.

An operator setting a tool in an enclosed measuring machine — reference image for Heavy Duty Corner Radius End Mills — **Tool Measurement**
An operator positions a tool in an enclosed measuring machine.

Frequently Asked Questions

Is an NRD corner radius end mill the same as a roughing end mill?

Not necessarily. NRD is listed here as a six-flute corner radius series; “roughing” describes an intended machining task and may involve a different cutting-edge design. Compare the tool drawings, workpiece and machining operation before substituting one for the other.

What does the corner radius change?

It defines the rounded transition at the cutter's outer corner. Match it to the feature and toolpath required by the part drawing.

Can I substitute a square end mill?

Only after checking the resulting feature. A square end and a radiused corner have different profiles and may leave different geometry.

How can I compare NRD models for the same feature?

Compare the listed cutting diameter and corner radius first, then check flute length, overall length and shank diameter against the part and holder. Select the complete model code, not diameter alone.

Is six flutes always the best option?

No. Suitability depends on the material, engagement, chip clearance, machine and toolpath. Review the complete application before selecting the model.

What should a buyer include in an RFQ?

Send model and quantity, work material, machining task, machine and holder, plus any drawing, sample or packaging requirements.

Request a Quote for Heavy Duty Corner Radius End Mills

Send the NRD model or the required diameter, corner radius, lengths, shank diameter and quantity. Include the workpiece and milling operation for selection review.

Explore Carbide Cutting Tools →
