SGB Series · R081

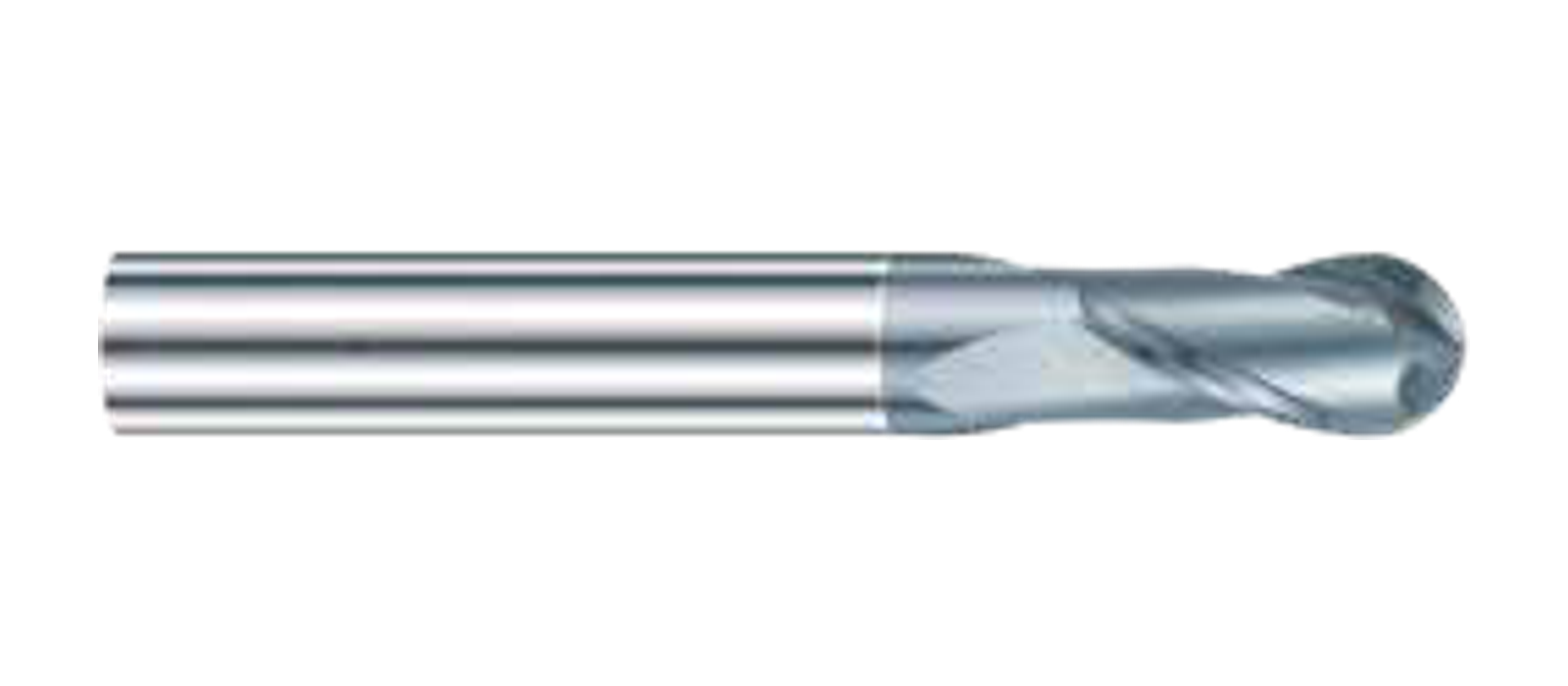

When your order involves contoured parts, select the ball profile and reach together. AXIMET's SGB catalog series lists two-flute ball nose end mills by model for high-temperature alloy applications, with the dimensions needed to compare cutters and prepare a quotation.
The rounded end changes the contact geometry used for a curved or three-dimensional toolpath. Square end mills for high-temperature alloys may also be used for some three-dimensional operations; compare the programmed contact and the desired feature before substituting. Start with the target contour, then compare the ball radius and cutting diameter with the feature drawing. Check the flute length, holder and required projection before approving the tool for a recessed area.

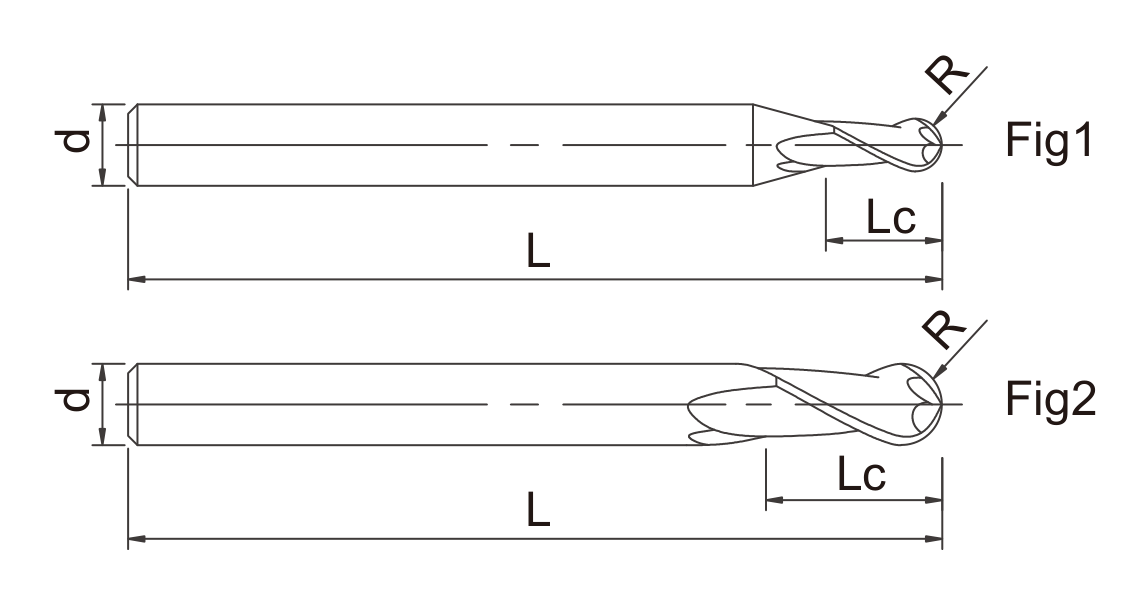

The SGB series contains 23 catalog model records with a two-flute geometry. Each specification row identifies the model, cutting diameter, ball radius, flute length, overall length, shank diameter and flute count. Use the model row and dimension drawing together when selecting a size.
The ball radius describes the rounded end; it is not the same field as a corner radius end mill for high-temperature alloys. When a distributor's customer supplies only a diameter, ask for the intended profile and the feature drawing before substituting another tool.
Ball radius and cutting diameter: Check the radius against the contour and the diameter against the available access. The required part geometry and programmed toolpath determine whether a particular ball profile is suitable.
Flute length and tool access: Consider the depth and shape of the cavity, the programmed engagement and clearance around the tool. Check the holder and projection as part of the same assembly.
Overall length and shank: The shank must fit the holder. Overall length helps establish the space needed in the machine, but it does not by itself establish the usable reach inside a cavity.
Effective diameter during cutting: Contact near the ball tip can occur at a smaller local diameter than the nominal diameter. At the same spindle speed, that affects local cutting speed. Review the programmed contact, engagement and tool supplier guidance instead of applying a speed from an unrelated cutter.
High-temperature alloys vary by grade and condition. Include the exact material, the type of contour, machine, toolholder and coolant arrangement when asking for a recommendation. For a mold feature or a profiled component, a drawing is useful when the required radius and tool access are difficult to describe in words.
For a distribution range, keep the model, ball radius, dimensions and required quantity together on each order line. For a repeat order, reference the approved model and drawing so the quotation uses the same selection criteria.
Ask for the documentation and sample checks that matter to your order. Identify the dimensions your team intends to review and provide any required labeling, barcode or packaging instructions. Requirements can be reviewed alongside the requested model and quantities.
Compare the SGB ball profile with the square end mill for high-temperature alloys and corner radius end mill for high-temperature alloys before changing tool form.

Select an SGB ball-nose model by the listed profile and dimensions needed for your alloy component.
| Type No. | Diameter (D, mm) | Ball Radius (R, mm) | Flute length (Lc, mm) | Overall length (L, mm) | Shank Dia (d, mm) | Flutes (F) |
|---|---|---|---|---|---|---|
| SGB0102A | D1 | R0.5 | 2 | L50 | 4 | 2 |
| SGB0102 | D1 | R0.5 | 2 | L50 | 6 | 2 |
| SGB0152A | D1.5 | R0.75 | 3 | L50 | 4 | 2 |
| SGB0152 | D1.5 | R0.75 | 3 | L50 | 6 | 2 |
| SGB0202A | D2 | R1 | 4 | L50 | 4 | 2 |
| SGB0202 | D2 | R1 | 4 | L50 | 6 | 2 |
| SGB0252A | D2.5 | R1.25 | 5 | L50 | 4 | 2 |
| SGB0252 | D2.5 | R1.25 | 5 | L50 | 6 | 2 |
| SGB0302Z | D3 | R1.5 | 6 | L50 | 3 | 2 |
| SGB0302A | D3 | R1.5 | 6 | L50 | 4 | 2 |
| SGB0302 | D3 | R1.5 | 6 | L50 | 6 | 2 |
| SGB0352A | D3.5 | R1.75 | 8 | L50 | 4 | 2 |
| SGB0352 | D3.5 | R1.75 | 8 | L50 | 6 | 2 |
| SGB0402A | D4 | R2 | 8 | L50 | 4 | 2 |
| SGB0402 | D4 | R2 | 8 | L50 | 6 | 2 |
| SGB0502Z | D5 | R2.5 | 10 | L50 | 5 | 2 |
| SGB0502 | D5 | R2.5 | 10 | L50 | 6 | 2 |
| SGB0602 | D6 | R3 | 12 | L50 | 6 | 2 |
| SGB0802 | D8 | R4 | 16 | L60 | 8 | 2 |
| SGB1002 | D10 | R5 | 20 | L75 | 10 | 2 |
| SGB1202 | D12 | R6 | 24 | L75 | 12 | 2 |
| SGB1602 | D16 | R8 | 32 | L100 | 16 | 2 |
| SGB2002 | D20 | R10 | 40 | L100 | 20 | 2 |
The photographs below show production equipment and workshop operations used as manufacturing-reference material for carbide tooling enquiries. Process requirements are confirmed for the selected model and order.
Enclosed CNC tool-grinding equipment shown on the workshop floor.
Multi-tank cleaning equipment shown in the workshop.
A row of enclosed CNC grinding machines viewed from the workshop aisle.
Enclosed tool-grinding equipment with an adjacent operator area.
Tool-grinding equipment with a robotic handling enclosure.
Enclosed grinding and robotic-handling equipment shown from another workshop position.
CNC grinding machines arranged along a workshop aisle.
Enclosed tool-coating equipment shown in the production area.
Vacuum-chamber equipment shown in the coating area.
An operator works at an enclosed laser-marking station.
Machine workstations shown in a tool-finishing area.
An operator stands beside tool honing and polishing equipment.
An operator stands beside enclosed edge-honing and polishing equipment.
Enclosed wet-blasting equipment shown in the surface-finishing area.
A second workshop view of enclosed wet-blasting equipment.
The photographs below show inspection and measurement equipment used when discussing drawing dimensions and order requirements. The inspection scope is confirmed for the selected order.
Operators work at optical inspection stations.
An operator positions a cutting tool at a profile-measuring station.
Optical measurement workstations shown in the inspection area.
A balancing instrument with a protective enclosure.
A tool presetting station with an optical measuring arm and display.
An optical tool presetter with a measurement display.
Operators inspect tools at camera-based optical workstations.
An operator positions a tool in an enclosed measuring machine.
Consider a ball nose when the toolpath needs a rounded end for a curved profile or three-dimensional surface. Check the radius, access and workpiece requirements against the selected model.
SGB is listed as a two-flute ball nose series. The individual model row provides the corresponding diameter, radius and tool dimensions.
Specify the ball radius shown on the SGB model row together with cutting diameter and the required contour. A corner radius belongs to a different cutter geometry and should not be substituted without checking the toolpath.
Reference the approved SGB model, ball radius, dimensions and quantity. If the contour, material condition, holder or program has changed, send the revised drawing and setup details for review.
No. Provide the specific alloy grade and condition as well as the contour, cutting dimensions and machine setup. These details help determine whether a listed model suits the task.
Send SGB model codes or the required ball radius and dimensions, quantity per size, alloy grade and condition, application, machine and holder details, and any packaging or sample requirements.
Send your SGB model list and quantities with the alloy grade, required ball radius and contour details. Include the machine and holder details for the intended operation.
