Corner Radius End Mills for High-Temperature Alloys

Order corner radius end mills by more than cutting diameter. AXIMET's four-flute SGRB series combines a flat cutting end with a radius at the outer corner, helping buyers specify the profile required for a high-temperature alloy component.

Corner-radius profile for specified floor-to-wall transitions
Four-flute SGRB series with model-level specifications
Compare diameter, corner radius, cutting length and shank

Request a Quote →Compare Specifications ↓

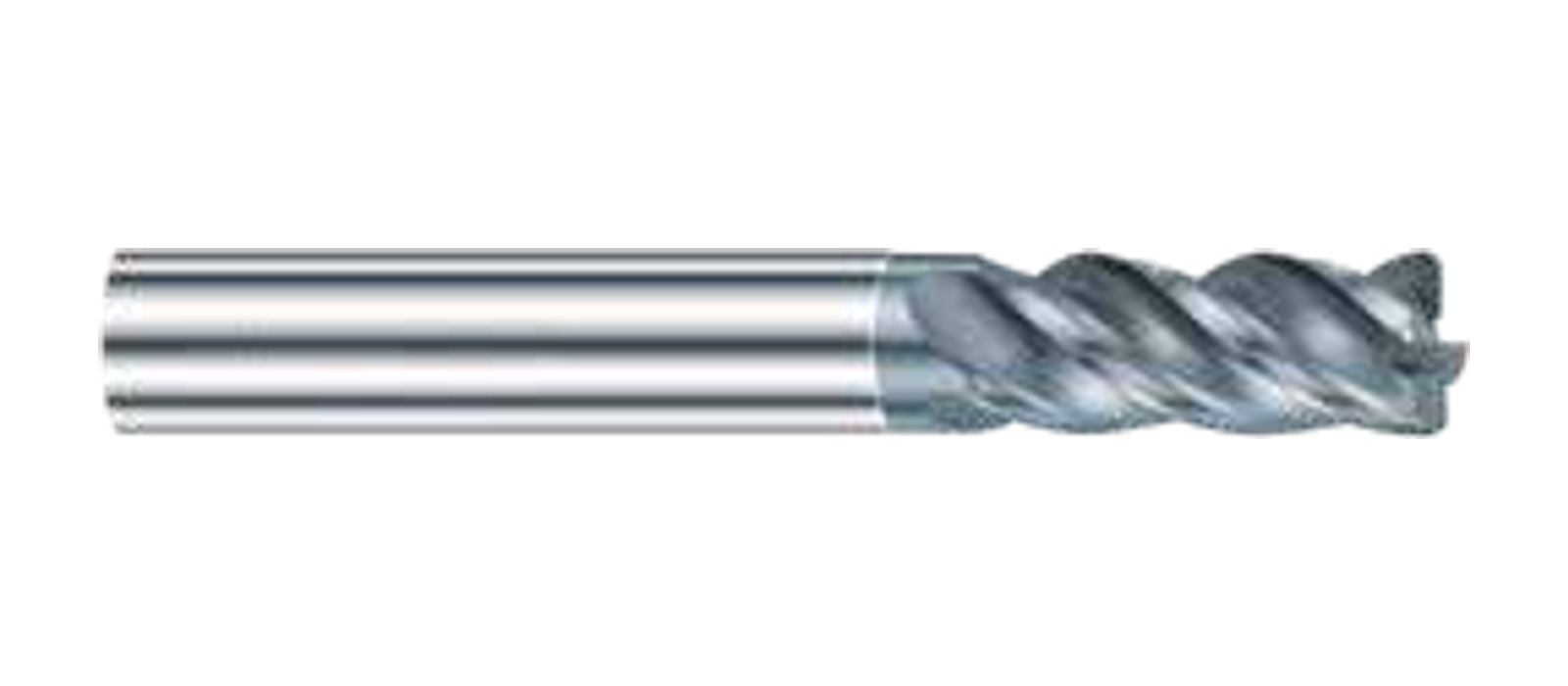

SGRB Corner Radius End Mills for High-Temperature Alloys catalog product view

SGRB Corner Radius End Mills for High-Temperature Alloys product introduction view

Match the Corner Radius to the Part Drawing

Two SGRB tools can share a cutting diameter while having different corner radii. Compare the radius with the feature drawing and the programmed toolpath, then check cutting length and holder clearance. Include the exact alloy grade and condition with your request.

Record the cutter diameter and corner radius together.
Check the available cutting length for the intended engagement.
Match the shank to the holder used in the machining setup.

SGRB Series and Radius Options

The SGRB catalog lists 27 four-flute model records. Each row identifies the model, cutting diameter, corner radius, flute length, overall length, shank diameter and flute count. Compare the complete row before ordering; a diameter on its own is not a sufficient identifier.

For example, SGRB0505 and SGRB0510 have the same listed cutting diameter but different corner-radius values. Keep D and R as separate order fields and use the full model number and part drawing to identify the intended profile.

Read the Drawing Before Selecting a Tool

Corner radius: Compare the radius at the cutter's outer corner with the transition on the part drawing. The finished feature also depends on the toolpath, machining allowance and setup; a matching tool radius alone does not establish the finished tolerance.

Cutting diameter: Check available clearance and the feature size. A matching diameter does not establish that two cutters have the same corner profile.

Flute length and overall length: Compare the cutting section with the required engagement, then assess the whole assembly against the part and fixture. Total tool length is not a substitute for a clearance check.

Shank diameter: Match the model's shank to the toolholder. Retain the shank size on each purchasing line when the order covers several diameters.

Applications and Profile Alternatives

A corner radius end mill can be considered for pockets, shoulders and stepped features where the part drawing calls for a radiused transition. Selection depends on the actual toolpath, the alloy and the accessible space around the feature.

A square end mill, a ball nose and a corner-radius end mill produce different end profiles. A ball nose has a rounded end across the tool; a corner-radius tool has a flatter end with radiused outside corners. If the part requires a sharp internal corner, check that requirement against the tool profile before ordering.

Provide the specific alloy grade and condition, operation, machine, holder and coolant arrangement when enquiring. If the component has a restricted pocket or shoulder, include the drawing and access requirement. Cutting conditions must be reviewed for that tool and setup rather than copied from an unrelated material group or cutter.

Preparing Your Order

List each SGRB model and its quantity separately. Include your component or tool drawing, required dimensional checks, material grade and machining task. For trial or repeat orders, retain the approved drawing revision and sample references with the purchasing record.

If you require a specific label, barcode or packaging format, provide the details with your quotation request. This helps align the requested assortment and identification with your purchasing requirements.

Compare the SGRB corner profile with the square end mill for high-temperature alloys and ball nose end mill for high-temperature alloys before substituting a cutter.

Catalog Series, Product Views and Dimension Drawings

SGRB Series · R082

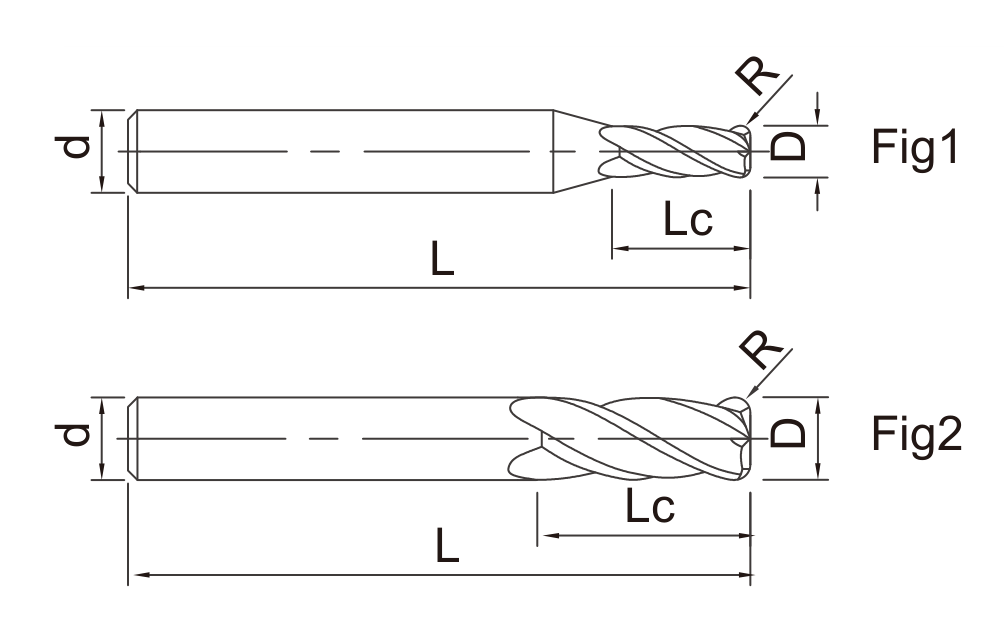

SGRB Corner Radius End Mills for High-Temperature Alloys catalog dimension drawing — SGRB dimension drawing · R082

Catalog Model Specifications

Compare SGRB diameters and corner radii with the part drawing, and check the complete row before ordering.

SGRB · R082 · 4 FLUTES

Type No.	Diameter (D, mm)	Corner R (R, mm)	Flute length (Lc, mm)	Overall length (L, mm)	Shank Dia (d, mm)	Flutes (F)
SGRB0305A	D3	R0.5	8	L50	4	4
SGRB0305	D3	R0.5	8	L50	6	4
SGRB0405A	D4	R0.5	10	L50	4	4
SGRB0405	D4	R0.5	10	L50	6	4
SGRB0505	D5	R0.5	13	L50	6	4
SGRB0510	D5	R1	13	L50	6	4
SGRB0605	D6	R0.5	16	L50	6	4
SGRB0610	D6	R1	16	L50	6	4
SGRB0805	D8	R0.5	20	L60	8	4
SGRB0810	D8	R1	20	L60	8	4
SGRB1005	D10	R0.5	25	L75	10	4
SGRB1010	D10	R1	25	L75	10	4
SGRB1020	D10	R2	25	L75	10	4
SGRB1030	D10	R3	25	L75	10	4
SGRB1210	D12	R1	30	L75	12	4
SGRB1220	D12	R2	30	L75	12	4
SGRB1230	D12	R3	30	L75	12	4
SGRB1610	D16	R1	40	L100	16	4
SGRB1620	D16	R2	40	L100	16	4
SGRB1630	D16	R3	40	L100	16	4
SGRB1640	D16	R4	40	L100	16	4
SGRB1650	D16	R5	40	L100	16	4
SGRB2010	D20	R1	45	L100	20	4
SGRB2020	D20	R2	45	L100	20	4
SGRB2030	D20	R3	45	L100	20	4
SGRB2040	D20	R4	45	L100	20	4
SGRB2050	D20	R5	45	L100	20	4

Production Equipment Reference

The photographs below show production equipment and workshop operations used as manufacturing-reference material for carbide tooling enquiries. Process requirements are confirmed for the selected model and order.

CNC tool grinding equipment on the workshop floor — reference image for Corner Radius End Mills for High-Temperature Alloys — **CNC Tool Grinding Cell**
Enclosed CNC tool-grinding equipment shown on the workshop floor.

A multi-tank cleaning line in the tool production workshop — reference image for Corner Radius End Mills for High-Temperature Alloys — **Ultrasonic Cleaning Line**
Multi-tank cleaning equipment shown in the workshop.

A row of enclosed CNC grinding machines — reference image for Corner Radius End Mills for High-Temperature Alloys — **CNC Grinding Equipment**
A row of enclosed CNC grinding machines viewed from the workshop aisle.

Enclosed tool-grinding equipment with an operator area alongside — reference image for Corner Radius End Mills for High-Temperature Alloys — **Tool Grinding Machine**
Enclosed tool-grinding equipment with an adjacent operator area.

A tool-grinding machine with a robotic handling enclosure — reference image for Corner Radius End Mills for High-Temperature Alloys — **Automated Tool Grinding Cell**
Tool-grinding equipment with a robotic handling enclosure.

Tool-grinding machines with enclosed robotic handling equipment — reference image for Corner Radius End Mills for High-Temperature Alloys — **Automated Grinding Equipment**
Enclosed grinding and robotic-handling equipment shown from another workshop position.

Enclosed CNC grinding equipment arranged along the workshop aisle — reference image for Corner Radius End Mills for High-Temperature Alloys — **CNC Grinding Machines**
CNC grinding machines arranged along a workshop aisle.

An enclosed tool-coating unit in the workshop — reference image for Corner Radius End Mills for High-Temperature Alloys — **Tool Coating Equipment**
Enclosed tool-coating equipment shown in the production area.

Vacuum-chamber equipment in the coating area — reference image for Corner Radius End Mills for High-Temperature Alloys — **Coating Process Equipment**
Vacuum-chamber equipment shown in the coating area.

An operator working at an enclosed laser-marking station — reference image for Corner Radius End Mills for High-Temperature Alloys — **Laser Marking Operation**
An operator works at an enclosed laser-marking station.

Machine workstations in the tool-finishing area — reference image for Corner Radius End Mills for High-Temperature Alloys — **Tool Finishing Workstations**
Machine workstations shown in a tool-finishing area.

An operator beside a tool honing and polishing machine — reference image for Corner Radius End Mills for High-Temperature Alloys — **Cutting Edge Preparation**
An operator stands beside tool honing and polishing equipment.

An operator beside enclosed tool honing equipment — reference image for Corner Radius End Mills for High-Temperature Alloys — **Edge Honing and Polishing**
An operator stands beside enclosed edge-honing and polishing equipment.

Enclosed wet-blasting equipment in the surface-finishing area — reference image for Corner Radius End Mills for High-Temperature Alloys — **Wet Blasting Equipment**
Enclosed wet-blasting equipment shown in the surface-finishing area.

An alternate image of enclosed wet-blasting equipment — reference image for Corner Radius End Mills for High-Temperature Alloys — **Wet Blasting Equipment — Alternate**
A second workshop view of enclosed wet-blasting equipment.

Inspection and Measurement Equipment Reference

The photographs below show inspection and measurement equipment used when discussing drawing dimensions and order requirements. The inspection scope is confirmed for the selected order.

Operators working at optical inspection and tool-measuring stations — reference image for Corner Radius End Mills for High-Temperature Alloys — **Tool Inspection Room**
Operators work at optical inspection stations.

Cutting Tool Profile Measurement

An operator positions a cutting tool at a profile-measuring station.

Optical measuring workstations in the inspection area — reference image for Corner Radius End Mills for High-Temperature Alloys — **Measurement Workstations**
Optical measurement workstations shown in the inspection area.

A balancing instrument with a protective enclosure — reference image for Corner Radius End Mills for High-Temperature Alloys — **Balancing Instrument**
A balancing instrument with a protective enclosure.

A tool presetter with an optical measuring arm and display — reference image for Corner Radius End Mills for High-Temperature Alloys — **Tool Presetting and Dimensional Review**
A tool presetting station with an optical measuring arm and display.

An optical tool presetter and measurement display — reference image for Corner Radius End Mills for High-Temperature Alloys — **Optical Tool Presetter**
An optical tool presetter with a measurement display.

Operators inspecting tools at camera-based inspection workstations — reference image for Corner Radius End Mills for High-Temperature Alloys — **Optical Inspection**
Operators inspect tools at camera-based optical workstations.

An operator setting a tool in an enclosed measuring machine — reference image for Corner Radius End Mills for High-Temperature Alloys — **Tool Measurement**
An operator positions a tool in an enclosed measuring machine.

Frequently Asked Questions

What does the corner radius do on an end mill?

It describes the rounded transition at the tool's outer cutting corner. Compare it with the part drawing and toolpath because it affects the profile produced at a floor-to-wall transition.

Are SGRB0505 and SGRB0510 interchangeable for the same part?

Not automatically. Compare each cutter’s corner radius with the part drawing and programmed path; confirm the remaining dimensions and holder before changing the specified model.

Is a corner radius end mill the same as a ball nose?

No. A corner-radius tool has a flatter end with rounded outer corners; a ball nose has a rounded end profile across the cutter. Select the geometry that matches the feature.

How many flutes are specified for SGRB?

The listed SGRB series has four flutes. Review the model table for each item's diameter, radius, lengths and shank.

Which dimensions affect holder fit and access?

Shank diameter determines the required clamping size. Overall length, cutting length, holder projection and surrounding clearance should also be reviewed against the setup.

What should a distributor send for a quote?

Provide the model codes, quantities per item, alloy grade and condition, part or tool drawing, and any inspection, marking, sample or packaging requirements.

Request a Quote for Corner Radius End Mills for High-Temperature Alloys

Share the SGRB model numbers and quantities, or specify the required cutting diameters and corner radii. Include the alloy grade, operation and part geometry for your enquiry.

Explore Carbide Cutting Tools →
