Masonry drill bits make holes in mineral building materials such as brick, block and concrete. Identify one by its cutting tip, flutes and shank, then check its stated materials and drilling mode. Colour alone cannot tell you whether a bit suits your wall or machine.
What a Masonry Drill Bit Does
A masonry drill bit is designed for a stated group of building materials rather than for wood or general metal drilling. Many familiar designs combine a steel body, a carbide cutting tip and helical flutes. The tip works on the material at the bottom of the hole; the flutes provide a route for drilling debris to leave it.
The broad category includes tools for different machines and methods. A straight-shank masonry bit may be intended for a compatible drill or hammer drill, while an SDS bit connects to a matching rotary hammer. Some specialist multi-material bits also drill masonry in a specified mode. These tools should not be treated as interchangeable merely because their cutting diameters match.
Are masonry and concrete drill bits the same? The names overlap, but they do not guarantee identical tools. Some catalogues group brick and concrete bits together; others distinguish concrete tooling from bits for softer masonry. Choose by the named substrate, head construction and permitted operating mode. A broad “masonry” label alone does not establish suitability for dense or reinforced concrete.
For a buyer, the useful definition is therefore practical: a masonry drill is a hole-making tool whose cutting structure, connection and permitted drilling method match the stated mineral substrate. A pointed metal drill, a tile drill and a masonry drill can all make circular holes, but their similar purpose does not establish the same application.
How to Identify a Masonry Drill Bit
Examine the Cutting Head
Look at the end of the drill before examining its colour. A conventional carbide-tipped masonry drill often has a distinct cutting insert across the tip, visibly different from the fluted body. Other hammer drills use multi-cutter or solid-carbide head constructions. The precise arrangement varies, so not every masonry bit has an identical arrow-shaped appearance.
Compare a clear end view with a side view. The end view helps reveal the arrangement of cutting edges; the side view shows how the head joins the body. A worn or damaged tip can obscure those features. If the insert is missing, chipped or heavily worn, identification alone does not make the bit serviceable.
Follow the Flutes
The grooves behind the head carry drilling debris away from the working end. Flute number, width and shape vary with the tool design. A spiral by itself does not identify masonry tooling because metal and wood drills also have flutes. Use the head, flute and connection together rather than one isolated feature.
Debris clearance matters as well as appearance. A long bit with an unsuitable working section is not automatically appropriate for a deep hole. A clogged flute or a damaged body can restrict the operation even when the cutting tip still looks recognizable.

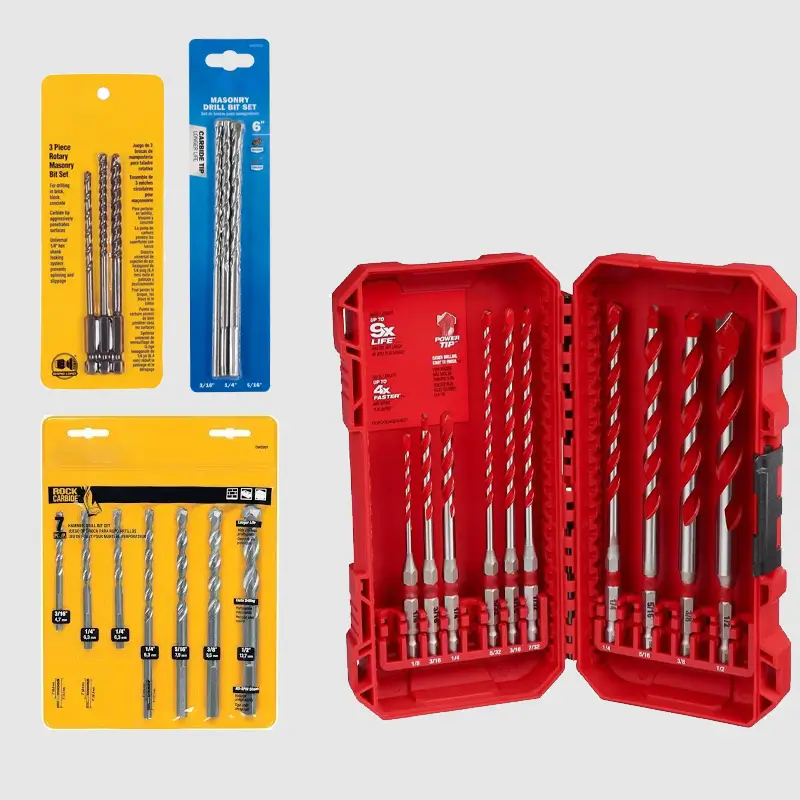

Inspect the Shank and Markings
The shank connects the bit to the machine. It may be cylindrical, have gripping flats, be hexagonal, or use an SDS interface. SDS Plus and SDS Max are different connections; neither identifies the cutting-tip material. A hexagonal end also does not automatically authorize use in an impact driver.
Read any legible diameter, product code and interface marking. Packaging or a manufacturer’s product record can resolve an uncertain identification. A photograph can show shape, but it cannot establish the precise carbide grade, permissible machine mode or suitability for an unknown material. Keep an unidentified bit out of a critical fixing operation until its application is clear.
Masonry Bits Compared With Metal, Wood and Tile Bits
Different drill families remove different materials in different ways. A typical HSS twist drill for metal has ground cutting lips and a central point formed from the drill body. A brad-point wood drill has a locating point and cutting features intended for timber. A conventional masonry drill commonly presents a carbide cutting head intended for mineral material.
These are recognition clues, not absolute rules. Carbide is also used in metalworking and tile tools, while specialist multi-material drills can cross ordinary category boundaries. A carbide tip therefore does not prove that the tool is a concrete hammer drill. The manufacturer’s stated application remains the decisive check.
Tile and porcelain need particular care. A spear-point tile bit and a diamond hole saw are different tools from an ordinary masonry drill. Their permitted substrates, cooling arrangements and operating methods vary. Do not use the presence of tile over a brick wall as a reason to start through the facing with an unspecified masonry bit and hammer action.
| Drill family | Useful identification clue | Main selection boundary |
|---|---|---|
| Conventional masonry drill | Distinct carbide cutting tip and debris-removing flutes | Stated mineral material, machine and mode |
| HSS metal twist drill | Ground cutting lips on a twist-drill point | Metal type, drill geometry and cutting conditions |
| Brad-point wood drill | Locating point with timber-cutting features | Wood, hole quality and permitted machine |
| Tile spear-point drill | Spear-like cutting head | Exact tile material and stated drilling method |
| Diamond hole saw | Annular cutting rim rather than a solid drill point | Substrate, mounting and specified wet/dry use |
| Multi-material drill | Product-specific carbide geometry | Listed materials and operating modes |
Use this comparison to sort an unfamiliar toolbox, not to replace product identification. Paint, surface finish and package colour are weak clues because manufacturers use different visual systems. A gold, silver or black finish is not a material-compatibility test.
Match the Bit to Brick, Block or Concrete
Solid Brick and Masonry Units
Solid brick, sand-lime units and other masonry materials differ in hardness, brittleness and structure. Choose a bit listed for the material and follow the fixing’s drilling instructions where a fixing is involved. The same nominal hole diameter may be requested in several materials, but that does not make the drilling conditions identical.
Avoid treating the mortar joint as equivalent to the masonry unit. If an installation requires a particular position, moving the hole into a joint can change the fixing conditions. The drill’s ability to make a hole is separate from whether that location is acceptable for the installation.
Hollow Brick and Block
Hollow units contain webs and voids that can be damaged by an unsuitable drilling method. Some fixing systems specifically require rotary drilling in hollow brick. Check the unit and fixing instructions before selecting hammer action; the general label “masonry bit” does not settle that decision.
An apparently neat entrance does not prove that the internal webs remain intact. If the drill suddenly passes into a cavity, avoid treating that change in resistance as evidence of the required hole depth. The fixing system may need a specified sleeve, drilling method and cleaning procedure for that unit.
Concrete and Reinforced Concrete
Concrete drilling commonly uses a suitable carbide-tipped hammer drill with a matching machine. Aggregate, reinforcement and drilling depth can make the job more demanding than a superficial inspection suggests. Select the tool for the stated concrete application and the hammer’s operating range.
For reinforced concrete, use only tooling intended for that application. This does not authorize cutting structural reinforcement without project approval. Unexpected resistance can also come from embedded objects or a material change. Stop to identify the cause rather than forcing an ordinary masonry drill through an unknown obstruction.
Stone, Tile and Layered Surfaces
Natural stones vary widely; a tool suitable for one stone is not automatically suitable for another. A wall can also combine plaster, ceramic facing, adhesive and a structural base. Identify each layer because the first visible surface may require a different drill or mode from the material behind it.
Treat the transition as a change in application. A drill that starts a ceramic facing successfully does not thereby become suitable for the concrete behind it, and a concrete drill is not automatically the right tool for the facing. When necessary, use separate tools for the respective materials rather than seeking one universal recommendation.
Match the Shank to the Machine
A plain cylindrical shank normally needs a compatible conventional chuck. Check that the chuck can grip its actual diameter and that the bit is approved for the intended machine and mode. Flats or a hexagonal profile can assist engagement, but they do not transform the bit into an SDS accessory.
SDS tools use a matching retention system in the hammer. SDS Plus and SDS Max differ, so a direct-fitting replacement must match the full interface designation. A similar cutting head or an equal hole diameter does not make the shanks equivalent. The SDS Plus versus SDS Max guide explains that interface choice separately.
An impact driver and a hammer drill also apply impact differently. Do not infer impact-driver suitability from a hex shank alone. Specialist bits may be designed for that use, but it must be stated for the actual tool. Likewise, do not clamp an SDS shank in a standard chuck as a substitute for the correct holder.
When ordering replacements, provide the machine model as well as a photograph of the insertion end. This is particularly useful when the current tool has lost its markings or a customer uses “SDS” without identifying the family.
Choose Rotary or Hammer Drilling Deliberately
Rotary drilling uses rotation; hammer drilling adds axial impact. The permitted method depends on both the tool and the substrate. A machine capable of hammer drilling can still require rotary mode for a particular material or accessory. Conversely, a plain drill does not gain a hammer mechanism by accepting a masonry bit.
Check the exact mode symbols and instructions before starting. A chiselling position, if present, is not a drilling setting. Drill bits are not designed to be used as levers, and changing the selector cannot convert them into chisels. Use the proper accessory for breaking or removing material.
Do not prescribe one universal speed, pressure or water supply for all masonry drills. Tool diameter, construction, substrate and equipment change the requirements. Adding water without checking the bit and machine instructions can create a different risk rather than solve overheating. Use the prescribed method and a dust-control arrangement appropriate to the work.
Before drilling into a building surface, check the location for concealed services and any structural restrictions. Keep the machine supported and use the specified handles. A correctly identified drill is only one part of a suitable setup.
Read Diameter and Length as Separate Dimensions
The nominal cutting diameter describes the intended hole size. Overall length includes the shank; working length describes the usable reach stated for the bit. Some catalogues also identify flute length. Read their dimension definitions instead of assuming that the longest listed measurement is the available drilling depth.
Measure the required hole from the working surface and account for any non-structural facing according to the installation instructions. For an anchor, the specified drilled-hole depth can differ from the effective embedment depth. Neither should be guessed from the bit’s total length.
Use enough working length without selecting excessive reach unnecessarily. A long tool needs more clearance around the machine and can be less convenient to position. Check the assembly with any dust-extraction attachment installed, because the accessory can affect access and depth-stop adjustment.
For purchasing, record diameter, working length and overall length on each line. This prevents a short replacement being sent for a deep-hole job, or an unnecessarily long tool arriving for repeated shallow fixings. Keep metric and inch dimensions explicit rather than treating nearby sizes as exact substitutes.
Hole Quality Matters Beyond the Drill Diameter
For a fixing hole, a drill with the correct nominal diameter is a starting point, not proof that the finished installation is acceptable. The substrate, hole position, depth, condition and cleaning method all matter. The fixing manufacturer determines its installation requirements and load conditions; a drill-bit selection guide cannot replace them.
Inspect a worn tool before relying on it for another series of holes. A chipped tip, damage or loss of cutting geometry can change the result. Do not repair an unfamiliar carbide-tipped tool by grinding it into a visually similar shape and assume it retains its intended performance.
Drilling debris also affects the work. Flutes remove material during drilling, while the fixing instructions may require further hole cleaning afterward. A dust-extraction attachment is not automatically a substitute for every cleaning step. Some approved hollow-drill systems combine extraction with hole preparation, but that benefit belongs to the specified system and installation procedure.
If the hole is oversized, breaks out at the edge or intersects an unexpected void, stop before installing the fixing. A larger screw, extra adhesive or a different drill is not an automatic remedy. Establish the appropriate installation response rather than hiding a hole-quality problem.
Troubleshoot the Cause, Not Just the Symptom
| Problem | Possible causes to investigate | Useful response |
|---|---|---|
| Bit skids at the start | Unsuitable tip, poor positioning or a hard facing | Reassess the surface and use the tool’s prescribed starting method |
| Little progress | Wrong tool or mode, wear, debris or an obstruction | Stop and check the actual application |
| Excessive heat | Poor cutting, packed debris or inappropriate operation | Allow safe cooling and inspect the tool and method |
| Irregular entrance | Alignment, impact on fragile material or damaged tip | Review setup before making another fixing hole |
| Bit will not lock | Wrong interface, damaged shank or holder contamination | Inspect the disconnected machine and matching tool |
Do not keep increasing force to compensate for a worn bit. If progress changes suddenly, separate the possibilities: a material change, an obstruction and a damaged cutting head call for different responses. Stop the machine before inspection, and remember that the bit may be hot after use.
When a drill jams, follow the machine’s procedure rather than levering it sideways or repeatedly starting against the blockage. Repeated failures at one location deserve investigation of the wall and drilling method. Repeated failures with one attachment across different suitable locations point toward the attachment or its setup.
For an importer investigating returns, request the tool code, machine, substrate, selected mode and photographs of the head and shank. This identifies the application more effectively than a complaint that the bit “does not drill concrete,” and avoids recommending a replacement that repeats the mismatch.
Build an Assortment Around Actual Applications
A useful masonry-drill assortment separates connection, diameter and working length, then identifies the intended materials. Keep conventional chuck-shank tools distinct from SDS Plus and SDS Max. Within each family, distinguish the actual head construction rather than presenting every photographed drill as one interchangeable product.

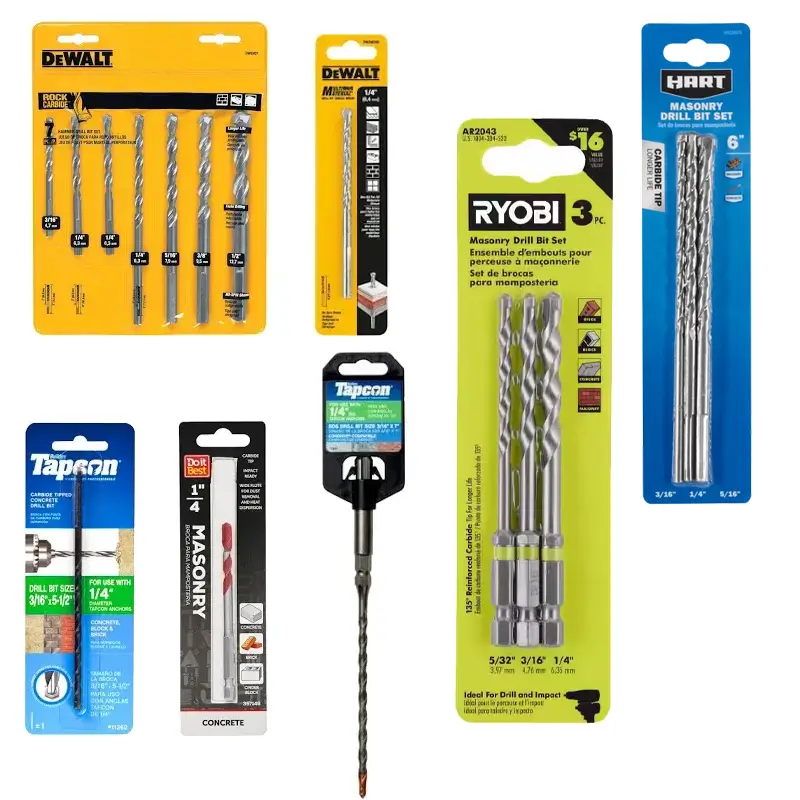

Sets should show which individual sizes they contain. A case count does not explain whether the mix fits the buyer’s fixing sizes or machines. Replenishment also needs individual item identification, especially when one frequently used diameter runs out before the others.
For repeat purchases, compare cost per acceptable hole as well as the price of each bit. Run a small, controlled comparison using the same substrate, hole diameter, depth, machine and mode. Count usable holes and record drilling time, worn or broken tools and rejected holes. A lower unit price is useful only if the tool produces the required result without erasing the saving through labour or rework.
The SDS drill-bit collection provides the related product range. For selection, send the material and machine first; a diameter list becomes useful once the interface and application are clear. Packaging appearance should help identify the range, without replacing the tool information needed to choose it.
Frequently Asked Questions
What Does a Masonry Drill Bit Look Like?
A conventional example usually has a distinct carbide cutting tip and helical grooves behind it. Other masonry and concrete drills use different head constructions, including multi-cutter designs. Inspect the tip, body and shank together, then check markings or product information. Colour alone is unreliable, and a chipped or worn head may no longer show its original shape clearly.
Can a Masonry Bit Drill Wood or Metal?
Do not assume that a conventional masonry bit is suitable for either. Wood and metal drills have cutting geometries intended for those materials, while specialist multi-material bits list their own permitted applications. Choose the tool from its actual material rating and machine requirements. A bit’s ability to scratch or enter another material does not establish a suitable drilling method.
Do All Masonry Drill Bits Need Hammer Action?
No. The permitted mode depends on the bit, substrate and installation. Some masonry work uses rotary drilling, and hollow or fragile materials can need a method that avoids damaging internal webs. Check the exact instructions rather than selecting hammer action from the category name. The machine and any chuck attachment must also support the intended mode.
Can I Use a Masonry Drill Bit on Tile?
Only if the exact tool is stated for that tile material and method. Ceramic and porcelain are not one interchangeable substrate, and a tiled wall can need a separate tool for the facing and the base. Spear-point drills, diamond hole saws and multi-material bits have different limits. Do not begin with hammer action on an unidentified brittle facing.
Is an SDS Bit the Same as a Masonry Bit?
No. SDS describes a connection system, while masonry describes an application family. Many concrete and masonry tools use SDS Plus or SDS Max, but others have cylindrical or hexagonal shanks. SDS accessories also include chisels. Select both the correct tool type and the matching interface; neither label alone fully identifies the attachment.
How Do I Choose a Masonry Bit for an Anchor Hole?
Start with the anchor’s specified substrate, drill diameter, hole depth and drilling method. Select a matching bit and machine, then follow the required hole-cleaning and installation procedure. Do not derive an anchor’s load capacity from the drill diameter or assume total bit length equals embedment depth. Hole condition and location remain part of the installation requirements.
Conclusion
Identify masonry tooling through the head, flutes and shank, then choose for the actual substrate, machine and drilling method. Keep hole diameter, working length and installation requirements separate. Send AXIMET a tip-and-shank photograph, machine model, material and required hole dimensions to discuss the appropriate drill-bit family.
