Choose a tile drill bit by substrate, hole size and machine. Ordinary ceramic may suit a specified carbide point; porcelain needs a tool expressly rated for it, whether specialist carbide or diamond. Then match useful depth, connection and the exact wet or dry method.
Identify the Tile Before Choosing the Bit
Tile drill bit selection starts with the material underneath the glaze, not its colour. A glazed ceramic wall tile and a dense porcelain floor tile can look almost identical while presenting different drilling demands. Ask for the tile description from its packaging or installation documents. A product intended for ordinary ceramic must not automatically be treated as a porcelain tool.
Glass also needs its own application check. A bit approved for a particular ceramic is not necessarily suitable for glass, and a general glass-drilling claim does not authorize drilling tempered or toughened glass. Where glazing type is uncertain, resolve it before attempting a hole. The cost of the installed surface usually matters much more than the price of one bit.
Natural stone adds another distinction. Marble, granite and engineered surfaces should not be grouped into one unrestricted “stone” application. Match the named material to the selected tool's instructions. A diamond rim is a cutting structure, not a guarantee that every stone, finish and thickness is covered.
The installation matters too. Record whether the tile is loose, already fixed to a wall, or part of a layered floor. An opening through a tile is only one stage of an installation that may also involve adhesive, waterproofing, board, masonry or concealed services.

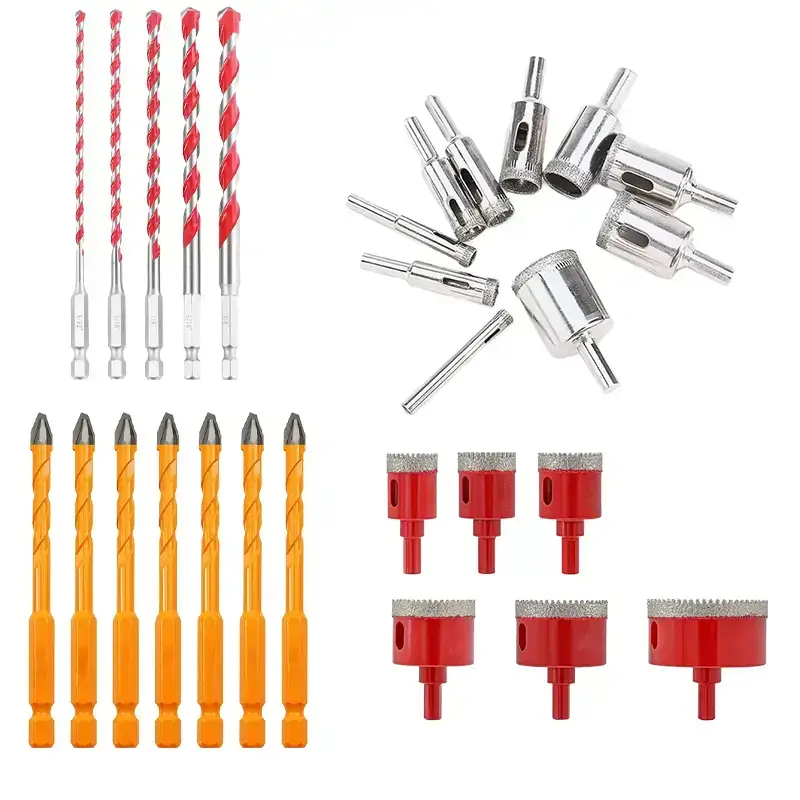

Understand Carbide Points and Diamond Hole Saws

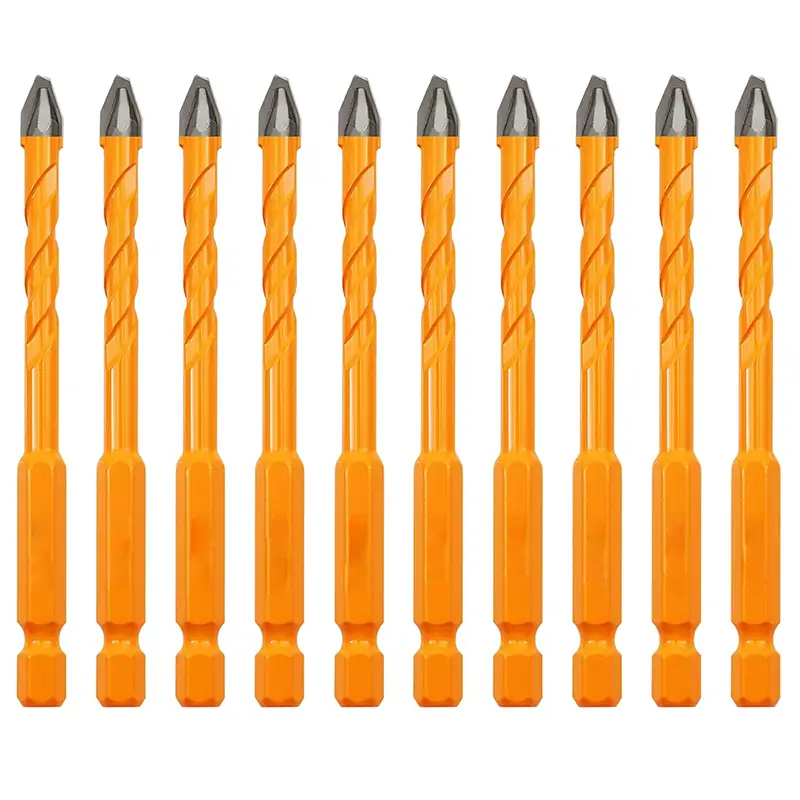

Pointed Tile Drill Bits
A pointed tile bit removes material across the opening through its cutting tip. Spear-point and arrowhead descriptions commonly identify the visible point shape. They do not, by themselves, identify the carbide grade, allowable substrate or cooling method. Check the exact reference rather than extending a claim across an entire pointed-bit assortment.
Many familiar carbide tile bits serve small holes in ordinary ceramic. However, specialist carbide designs for hard ceramic also exist. It would therefore be inaccurate to say that every carbide point is unsuitable for porcelain, just as it would be inaccurate to promise that every spear point can drill it. The application declared for the particular design decides the choice.
Hollow Diamond Cutters
A diamond hole saw cuts around the perimeter and normally leaves a central core. This makes the hollow construction easy to distinguish from a pointed bit, although small diamond drills can resemble a simple cylindrical tip in a distant photograph. Inspect the cutting end and the product drawing when comparing offers.
Diamond tools can use different methods of holding the abrasive particles. Electroplated and vacuum-brazed products are examples, but the construction name alone does not provide a universal operating recipe. Select the tool and its prescribed machine, cooling and starting method together. A tile saw blade, meanwhile, cuts an edge or line; it is not a substitute for a round hole-making tool.
Match the Tool to the Opening
| Job Requirement | Useful Starting Point | What Still Needs Checking |
|---|---|---|
| Small fixing hole in ordinary ceramic | Tile bit explicitly intended for that ceramic | Finished diameter, point design, machine and permitted method |
| Opening in porcelain | Carbide or diamond tool specifically approved for porcelain | Tile thickness, cutting depth, connection and cooling instructions |
| Pipe or fitting opening | Suitable hollow diamond cutter | Actual clearance diameter, usable cup depth and guide arrangement |
| Hole in glass | Tool and procedure explicitly intended for that glass | Glass type and whether drilling is permitted at all |
| Opening close to an edge | Material-specific tool with a workable support plan | Hole position, remaining material and installation constraints |
| Hole continuing into the supporting wall | Tile tool for the facing, then a suitable tool for the backing | Hidden services, waterproofing and fixing-system requirements |
Treat this table as a sequence of decisions, not a list of interchangeable tools. Two products described as “porcelain drill bits” may differ in mounting, useful depth and operating method. Choosing the correct entity first prevents a supplier from quoting a drill-mounted bit when the installer needs a threaded grinder tool, or the reverse.
Define the Finished Diameter and Useful Depth
Begin with the opening required by the fitting or fixing system. A pipe's nominal designation is not necessarily the required clearance hole. Likewise, a cover plate can conceal an opening without making an oversized hole acceptable. Use the installation drawing where position, clearance or edge distance affects the finished assembly.
Distinguish cutting diameter from connection size. M14, for example, describes a metric threaded connection; it does not mean that the cutter makes a 14 mm hole. A product description should keep the hole diameter and mounting designation in separate fields so they cannot be confused when placing a repeat order.
Useful cutting depth is also different from overall length. The shank, threaded end or closed top of a cup contributes to overall size but not necessarily to the thickness it can penetrate. Compare the tile thickness with the stated working capacity of the selected cutter, including any restrictions on core clearance.
Do not assume that a larger cutter can safely enlarge an existing opening by pushing it sideways. Some manufacturers offer separate grinding or hole-enlarging tools. Those are different applications with different designs. For a misplaced or undersized hole, choose an approved correction method before attempting to use a hole saw as a rotary file.
Choose the Machine and Connection as a System

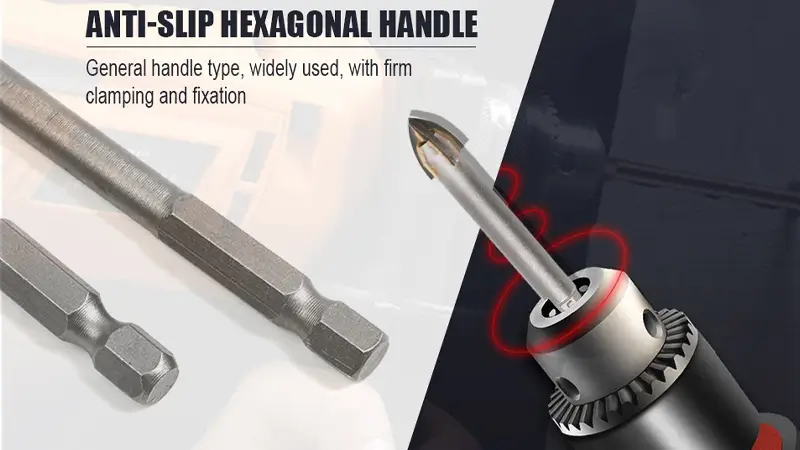

A cylindrical or hexagonal shank generally belongs in its specified holder or chuck. A threaded cutter needs the matching spindle or a suitable manufacturer-approved adapter. These physical interfaces are easy to recognize, but a fitting connection alone does not establish safe operation. Machine type, permitted speed and operating mode must also agree.
Wet drill-mounted products and dry grinder-mounted products can require very different operating conditions. Applying a familiar low-speed drill technique to a tool designed for another machine may give poor results; transferring a grinder's speed to a drill-only cutter can be dangerous. Follow the markings and instructions for the exact combination instead of using a single speed chart for all tile tools.
When an adapter is proposed, check its intended use with both the cutter and machine. An adapter changes the connection; it does not automatically change the tool's permitted speed, direction, coolant requirements or guarding arrangement. Do not stack unrelated adapters merely to make threads fit.
Disable hammer action when drilling the tile with these rotary tile-drilling tools. A drill's ability to operate in percussion mode does not make percussion appropriate for a brittle facing. The underlying wall may later need a different bit or mode, but that is a separate operation after the tile opening is complete.

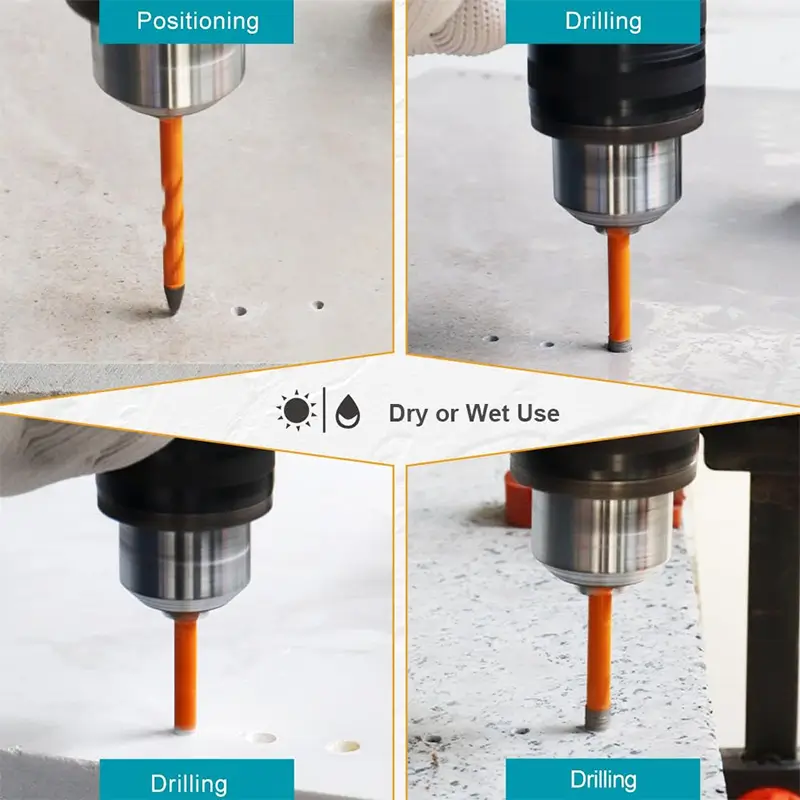

Decide Between Wet and Dry Drilling
Wet Drilling
A wet-drilling tool needs its prescribed water supply and operating method throughout the work. Water helps manage heat and drilling debris, but pouring water onto an unsuitable electric machine is not an acceptable cooling arrangement. Plan collection and electrical protection with the machine instructions and the site conditions.
Wet work also affects the surface around the opening. Consider finished floors, cabinets, wall coverings and access to runoff. A controlled water-feed or guide system may make the method practical where freehand spraying does not. Choose the entire arrangement before starting rather than discovering halfway through that the working area cannot handle water.
Dry Drilling
A dry-rated tool avoids a required external water feed, but it still generates heat and debris. Follow any specified intermittent cutting, clearance or cooling procedure. Dry does not mean unlimited continuous drilling, and it does not remove the need for suitable dust control and personal protection.
Some products permit more than one method; others do not. Neither a coloured coating nor the presence of diamond tells the user which rule applies. Keep wet-only, dry-only and explicitly dual-use instructions distinct in the product range and packaging. Never borrow the cooling claim of a visually similar cutter.
Start Accurately Without Damaging the Surface
Positioning deserves attention before cutting begins. A bit that wanders can leave a scratch outside the final opening even if it later drills successfully. Mark the required centre and check the available space for a guide, drill body or grinder. A clear centre mark does not compensate for an obstructed machine approach.
Starting procedures differ. Some hollow cutters use a dedicated guide, while certain diamond tools specify an inclined start followed by a controlled change in orientation. A pilot drill is not present or appropriate in every construction. Use the method intended for the chosen tool rather than adding a centre drill that was never part of the system.
Keep loose tile supported on a stable, suitable surface. A tile balanced over a wide unsupported gap behaves differently from a fully supported sample. Arrange clamps or guides without loading a fragile edge, and keep the intended opening accessible. Avoid improvised fixtures that allow the tile to rotate or the tool to contact the support unexpectedly.
For an unfamiliar tile, make a trial on a spare piece of the same product when available. Assess positioning and visible edge quality as well as whether a hole was completed. One successful opening in an ordinary wall tile does not validate the same setup for a thicker porcelain slab.
Plan for Installed Tile and the Material Behind It
An installed tile can be harder to replace than a loose sample, so the backing and access deserve separate checks. Identify concealed services before drilling. The fact that a fitting needs a hole does not establish that the chosen location is clear of wiring, water pipes or other hazards.
Once through the tile, change to the tool suitable for the actual backing where required. A tile cutter is not automatically a concrete, masonry or board drill. Continuing with the wrong tool can damage the cutter or leave an unsuitable hole for the fixing. Avoid letting a different drilling mode contact the tile edge during this changeover.
Waterproofing and fastening are separate from making a neat opening. Follow the installation and fixing-system requirements for sealing, support and embedment. Neither the tile-tool diameter nor a clean visible rim proves that the completed fixing can carry a stated load.
Openings close to edges or corners need particular planning. There is no single safe edge-distance number for every tile, hole size and installation. Where the layout leaves little material, discuss the opening with the installer or tile fabricator. A different hole location or installation sequence may be more effective than changing the bit alone.
Diagnose Common Tile-Drilling Problems
| Symptom | Checks to Make First | Avoid This Shortcut |
|---|---|---|
| Tool skates on the glaze | Starting method, guide fit and access | Striking the tile to create an improvised starting crater |
| Progress slows markedly | Correct substrate, cutter condition, cooling and debris clearance | Forcing the tool harder to recover speed |
| Visible edge chips | Tile support, entry or exit stage, tool suitability and feed | Assuming a larger cover plate makes the method acceptable |
| Cutter becomes excessively hot | Prescribed cooling, duty pattern and operating speed | Treating a dry rating as permission for continuous overheating |
| Opening position drifts | Guide stability, tool alignment and contact during the start | Enlarging the hole sideways with an unsuitable cup |
| Tile cracks near breakthrough | Support, existing damage and applied load | Repeating the same setup on the installed surface |
Stop when the cutter jams, shows damage or behaves abnormally. Disconnect the machine before inspecting it, clearing a core or changing accessories. A trapped core should be removed using the intended method, without touching hot cutting surfaces or improvising a powered ejection.
Record when a defect appears. Entry chipping, exit damage and a crack extending from an edge are different observations. Photographs of both faces and the cutting end help a supplier distinguish tool selection from positioning or support problems. They are more useful than the single description “the bit does not work.”
Check the Opening Before Installing the Fitting
Judge the hole against its purpose. A service opening needs the specified clearance without forcing a pipe against the tile edge. A fixing hole needs the dimensions and position required by the fixing system. A neat-looking entry can still hide exit damage, an incomplete opening or a piece of core remaining in the cup.
After disconnecting the tool, check the opening and remove loose debris by the method appropriate to the installation. Do not test clearance by hammering a fitting through a tight hole or using the fitting as a lever. If adjustment is necessary, use a tool intended for that correction and reassess the remaining tile around the opening.
For exposed openings, inspect the area that will remain visible after assembly. A cover that hides a small edge chip may not hide a scratch caused during starting. For concealed openings, finish still matters where a crack could propagate or where sharp edges contact another component. Visual appearance and installation suitability are related, but they are not the same check.
These observations also make a useful sample comparison. Two tools can both complete a hole while differing in positioning control or the amount of correction required afterwards. Compare the completed installation requirement, not only the moment at which the cutter breaks through.

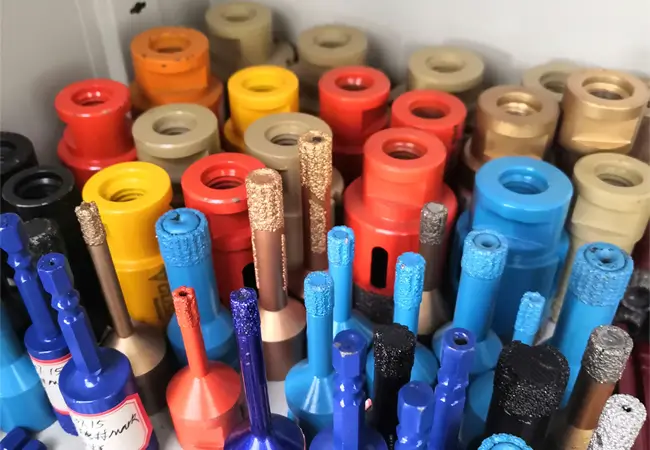

Build a Practical Tile-Drilling Assortment
For distributors, assortment planning starts with customer jobs. Small fixing holes, pipe penetrations and larger service openings do not necessarily need the same tool family. Group products by material, machine connection and method before deciding which diameters belong in a set.
Keep product identification clear at the point of use. A customer should be able to distinguish a pointed carbide bit from a hollow diamond cutter, and a wet drill-mounted product from a dry threaded one. Photograph the actual cutting end and connection; an assortment image alone may hide those differences.
When comparing samples, use the same tile product, thickness and machine arrangement. Check hole position, visible edge, core removal and cutter condition. Do not turn a supplier's demonstration on one tile into a guaranteed holes-per-bit figure for every porcelain range. Service life depends on the tool, material and method together.
Compare the cost of holes that meet the installation requirement, not only the price of a bit. Include damaged tile, rejected openings, setup time and any guide or cooling equipment in the comparison. A low-priced cutter that completes several holes outside the required position or finish has not produced the same result as one that meets the job. Use your own representative trial rather than an unsupported holes-per-bit claim.
For a selection enquiry, provide the tile description, thickness, required finished diameters, machine model, connection and intended wet or dry method. Include the drawing where clearance or edge position matters. The tile drill bit collection and diamond tile hole saw range provide the relevant product starting points.
Frequently Asked Questions
What Is the Best Drill Bit for Porcelain Tile?
Choose a tool explicitly intended for the actual porcelain and compatible with the available machine. Suitable designs can include specialist carbide bits and diamond cutters. The best choice also depends on hole size, thickness, access and the permitted cooling method. A general ceramic-tile label, pointed shape or diamond coating is not enough to establish those conditions.
Is a Spear-Point Tile Bit the Same as a Diamond Hole Saw?
No. A pointed tile bit cuts through the opening with its tip, while a hollow diamond cutter works around the perimeter and usually leaves a core. Their starting methods, available diameters and connections can differ. Compare the actual construction and application rather than assuming that matching hole sizes make the tools interchangeable.
Can I Use Hammer Mode to Drill Through Tile Faster?
Use the rotary mode prescribed for the tile tool, with hammer action disabled. Percussion can damage a brittle tile or an unsuitable cutter. If the backing later requires a masonry bit and another mode, complete the tile opening first and follow the instructions for that separate operation. Do not use hammer action simply because the drill has it.
Can One Diamond Hole Saw Be Used Wet and Dry?
Only when the exact tool's instructions permit both methods and the machine is suitable for the chosen arrangement. Wet-only and dry-rated products both exist. Their appearance may be similar, so the diamond rim or thread cannot establish permission. Follow the reference-specific cooling and operating instructions rather than transferring a method from another range.
Does an M14 Connection Make a 14 mm Hole?
No. M14 identifies the threaded mounting connection, not the cutting diameter. The required opening must be specified separately, together with useful cutting depth and material. Also verify that the machine or approved adapter suits the thread and operating requirements. A connection that screws together does not establish that the complete combination is appropriate.
Why Does a Tile Crack Even With a New Bit?
A new cutting edge does not correct unsupported tile, a poor starting method, excessive loading or an unsuitable tool for the material. Existing cracks and a hole close to an edge can also affect the result. Stop and examine where the damage starts before repeating the operation. Compare the setup on representative spare material where possible.
Conclusion
Good tile drilling begins with the exact surface and the finished opening. Choose the cutting structure for that material, then match working depth, machine connection, operating mode and cooling. Plan support, starting and the change to the backing material before the cutter touches the tile.
For repeat work, keep the successful tool reference and setup with the tile description. That makes replacement and assortment decisions more reliable than choosing by colour, an attractive photograph or one generic “tile bit” name.
